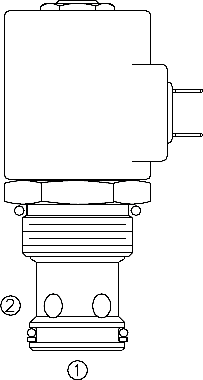

A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic car-tridge valve, designed to function as a load holding or blocking valve in applications requiring low internal leakage.
Product Operation
When de-energized, the SV16-20 acts as a check valve, allowing flow to pass from ➀ to ➁, while blocking flow in the reverse direction.When energized, the poppet lifts to open the ➁ to ➀ flow path. In this mode, flow from ➀ to ➁ is severely restricted. If this path is required, see model SV16-22, page 1.046.1.
Operation of Manual Override Option: To override, push button in, twist counter-
clockwise 180° and release. In this position, the valve will remain open.
To return to normal operation, push button in, twist clockwise 180° and release.
Override will be detented in this position.
Product Features
• Continuous-duty rated solenoid.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Effi cient wet-armature construction.
• Cartridges are voltage interchangeable.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Unitized, molded coil design.
• Industry common cavity.
Product Ratings
Operating Pressure: 241 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)

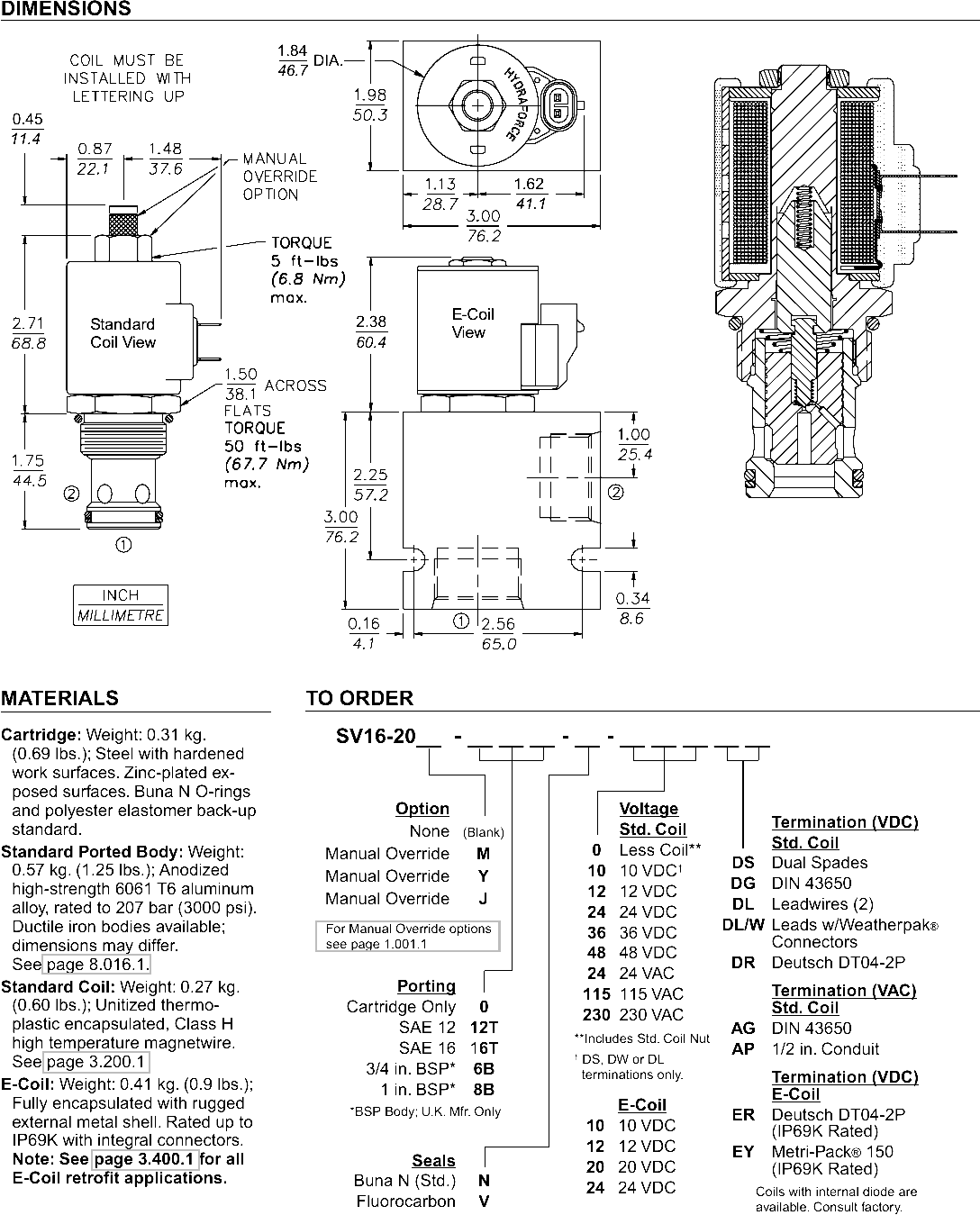

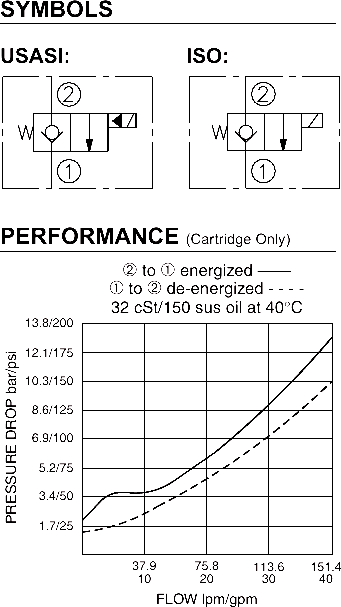

Flow: See Performance Chart
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectifi ed). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC16-2; See page 9.116.1
Cavity Tool: CT16-2XX; See page 8.600.1
Seal Kit: SK16-2X-T; See page 8.650.1
Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
