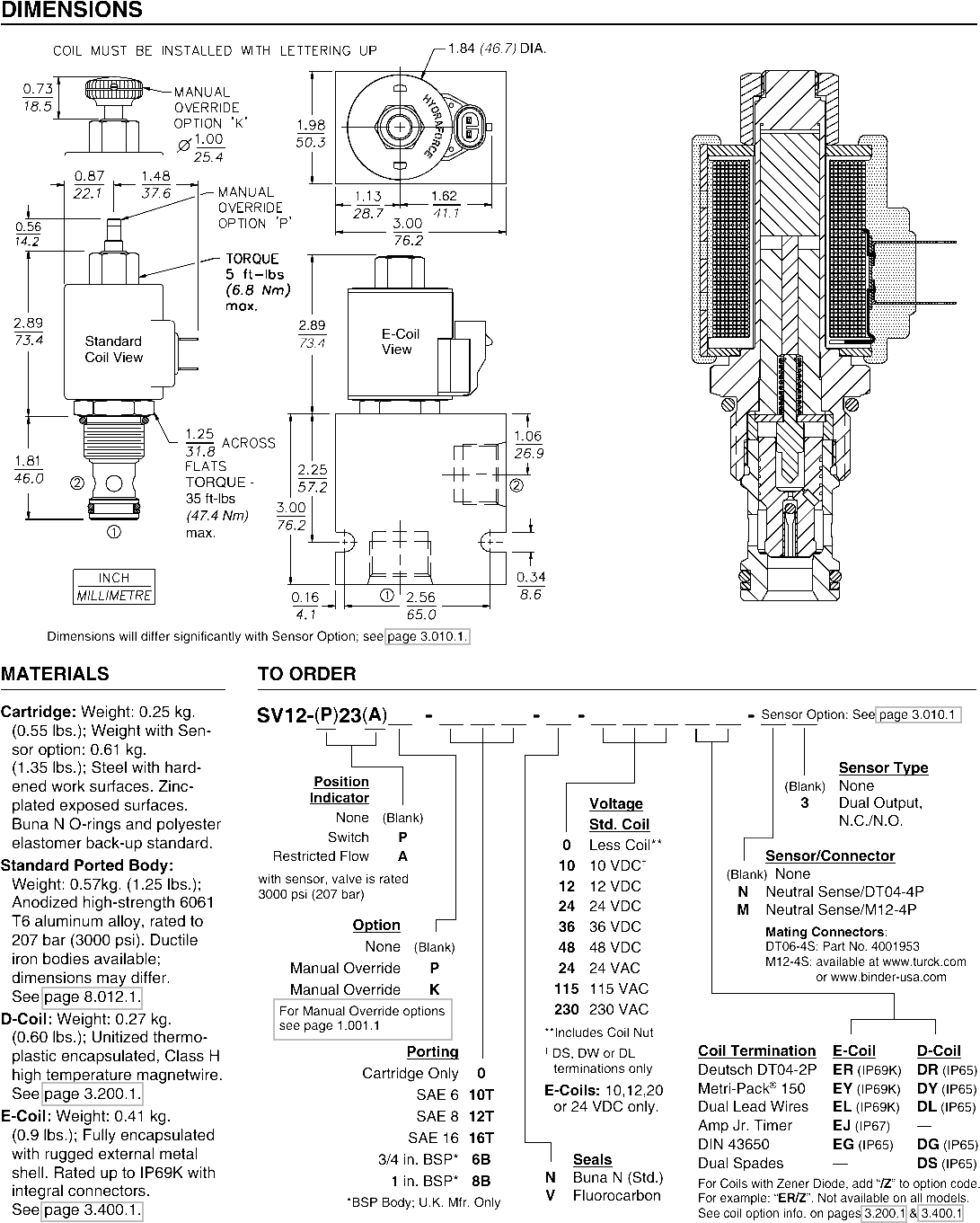

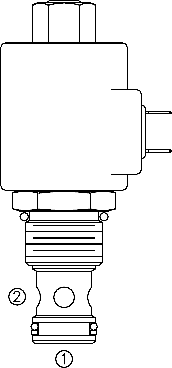

SV12-23 Poppet, 2-Way, Normally Open (SV12-23)

A solenoid-operated, two-way, normally open, poppet-type, screw-in hydraulic cartridge valve, designed to function as a load holding or blocking valve in applications requiring low internal leakage.

Product Operation

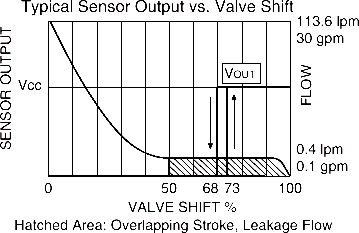

When de-energized, the SV12-23 allows bidirectional flow from 2 to 1. With the sensor option, the neutral sensor will signal OFF or LOW.
When energized, the valve’s poppet closes to block flow from 2 to 1. In this mode, the cartridge allows free reverse flow from 1 to 2 after overcoming the solenoid force (requires 3.4 to 10.3 bar / 50 to 150 psi). With the sensor option, the neutral sensor will signal ON or HIGH.
Operation of Manual Override Option: To override, push and hold override button.

Product Features

• Continuous-duty rated solenoid. • Unitized, molded coil design.• Hardened seat for long life and low leakage. • Manual override option.• Optional coil voltages and terminations. • Cost effective cavity.• Efficient wet-armature construction.• Cartridges are voltage interchangeable.
 Optional waterproof E-Coils rated up to IP69K.

Product Ratings

Operating Pressure: 240 bar (3500 psi)
Flow: Up to 114 lpm (30 gpm); see performance chart
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 240 bar (3500 psi)
Temperature: with standard Buna N seals: -40 to 100°C (-40° to 212°F);with Fluorocarbon seals: -26 to 204°C (-15°F to 400°F)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:
Energized: 80 msec.; De-energized: 30 msec.Response Time with Sensor: 158 ms pull-in, 57 ms drop-out
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 240 bar (3500 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC12-2; See page 9.112.1
Cavity Tool: CT12-2XX; See page 8.600.1
Seal Kit: SK12-2X-T; See page 8.650.1
Coil Nut: Part No. 7004420
