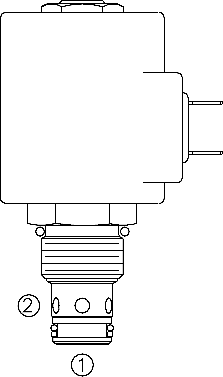

SV10-22 Poppet, 2-Way, Normally Closed (SV10-22)
A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, designed for low leakage blocking and load holding applications.
Product Operation

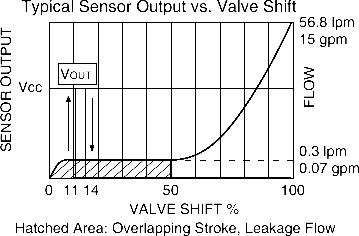

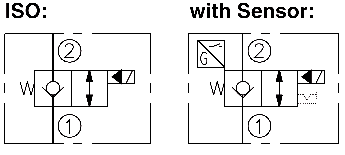

When de-energized, the SV10-22 acts as a check valve, allowing flow to pass from 1 to 2, while blocking flow from 2 to 1. With the sensor option, the neutral sensor will signal ON or HIGH.
When energized, the 2 to 1 flow path opens. In this mode, flow is also allowed from 1 to 2. With the sensor option, the neutral sensor will signal LOW or OFF.
Operation of Manual Override Option: To override, push button in, twist counter-clockwise 180° and release. In this position, the valve will remain open.
To return to normal operation, push button in, twist clockwise 180° and release. Override will be detented in this position.
Product Features
• Continuous-duty rated solenoid.
• Manual override option.
• Hardened seat for long life and low leakage.
• Unitized, molded coil design.
• Optional coil voltages and terminations.
• Industry common cavity.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
Product Ratings
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)

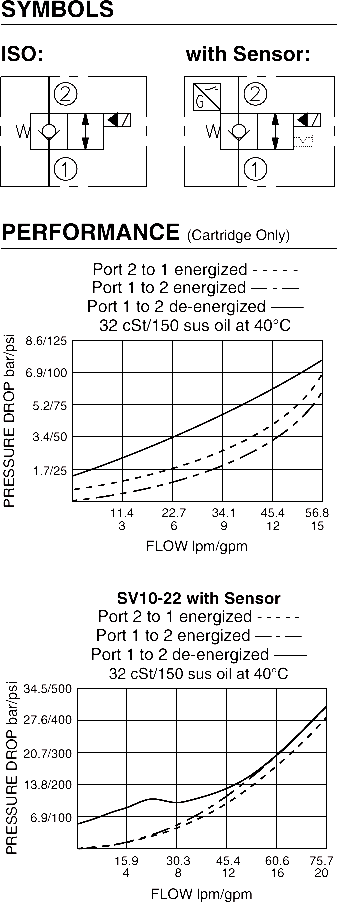

Flow: 56.8 lpm (15 gpm); see performance chart
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 240 bar (3500 psi)
Temperature: with standard Buna N seals: -40 to 100°C (-40° to 212°F);with Fluorocarbon seals: -26 to 204°C (-15°F to 400°F)
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 40 msec.; De-energized: 32 msec.Response Time with Sensor: 68 ms pull-in, 50 ms drop-out
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 240 bar (3500 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

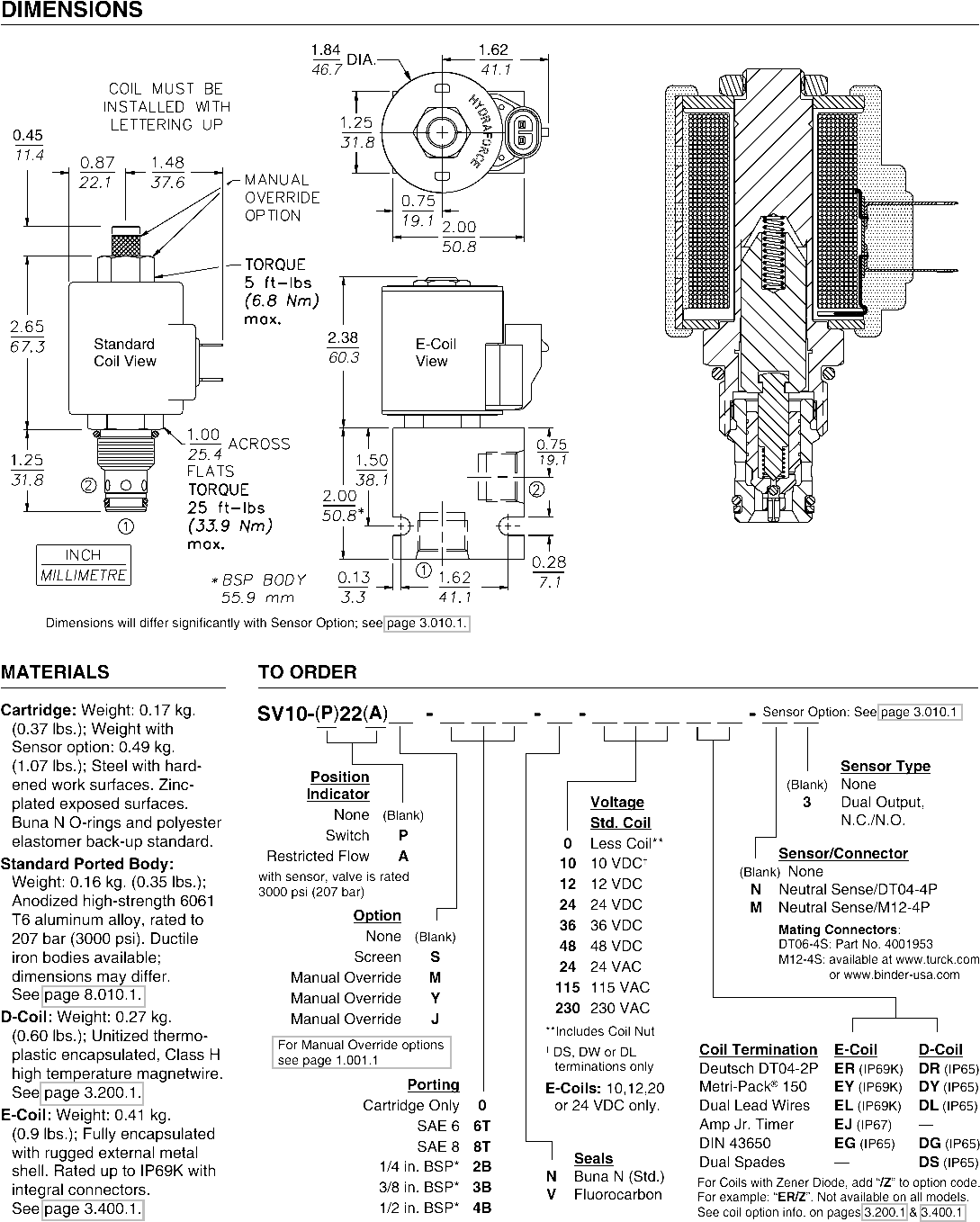

Cavity: VC10-2; See page 9.110.1
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2X-T; See page 8.650.1
Coil Nut: Part No. 7004400
