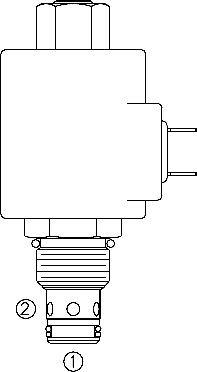

SV10-21 Poppet, 2-Way, Normally Open (SV10-21)

A solenoid-operated, 2-way, piloted, poppet-type, normally open, screw-in, hydraulic cartridge valve designed for low leakage in load-holding applications.

Product Operation

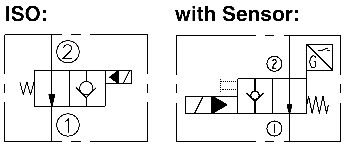

When de-energized, the SV10-21 allows flow from 2 to 1. Flow from 1 to 2 isseverely restricted in this mode. If the 1 to 2 path is required, see model SV10-23, page 1.053.1.
When energized, the valve’s poppet closes on its seat, blocking flow in the 2 to 1 direction. In this mode the cartridge will allow 1 to 2 flow after overcoming the solenoid force (requires 3.4 to 10.3 bar / 50 to 150 psi).
Operation of Manual Override Option: To override, push and hold override button.

Product Features

 Continuous duty-rated solenoid.
 Hardened seat for long life and low leakage.
 Optional coil voltages and terminations.
 Efficient wet-armature construction.
 Cartridges are voltage interchangeable.
 Unitized, molded coil design.
 Industry common cavity.
 Manual override option.
 Optional waterproof E-Coils rated up to IP69K.

Product Ratings

Operating Pressure: 207 bar (3000 psi)
Proof Pressure: 345 bar (5000 psi)

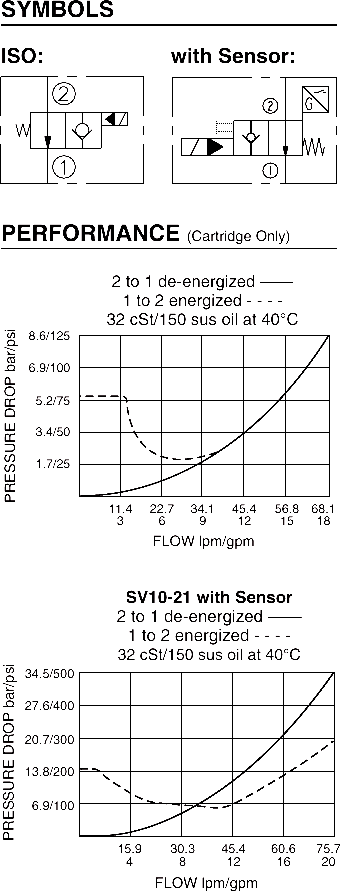

Flow: 68.1 lpm (18 gpm); see performance chart
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:
Energized: 80 msec.; De-energized: 30 msec.
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

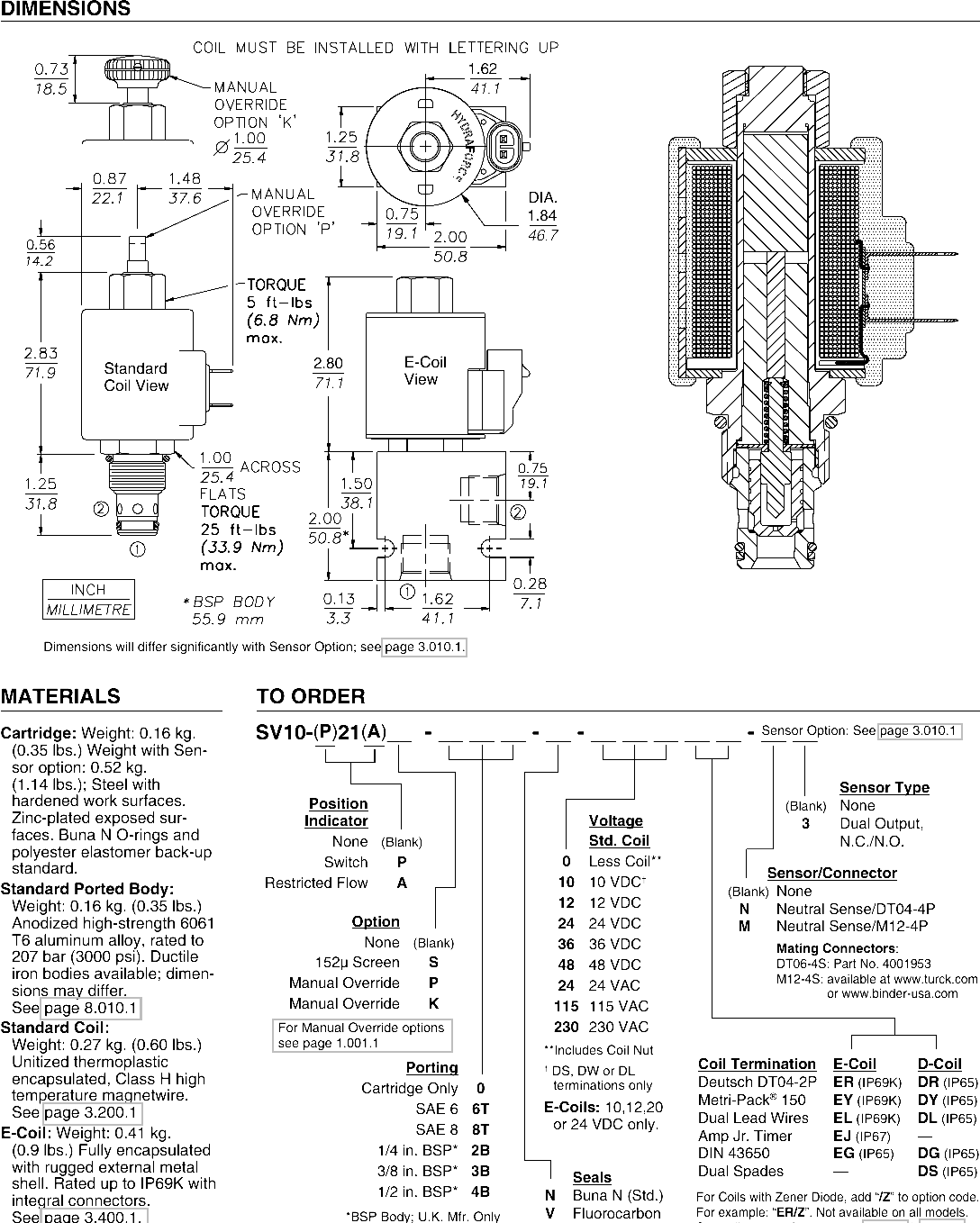

Cavity: VC10-2; See page 9.110.1
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2X-T; See page 8.650.1
Coil Nut: Part No. 7004420; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
