SV08-20 Poppet, 2-Way, Normally Closed (SV08-20)

A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuits.

Product Operation

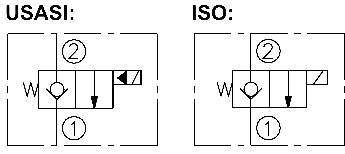

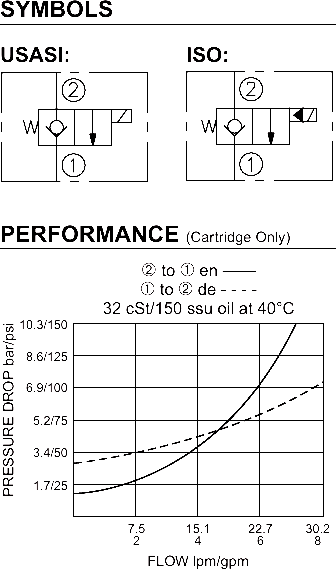

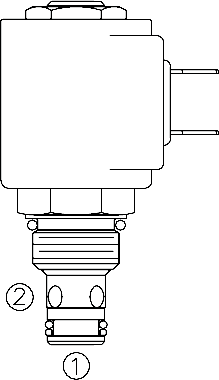

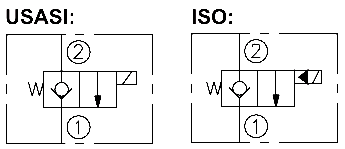

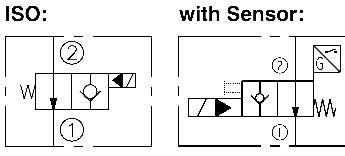

When de-energized, the SV08-20 acts as a check valve, allowing flow from ➀ to ➁, while blocking flow from ➁ to ➀When energized, the cartridge’s poppet lifts to open the ➁ to ➀ flow path. In this mode, flow from ➀ to ➁ is severely restricted. If this path is required, see model SV08-22, page 1.041.1.

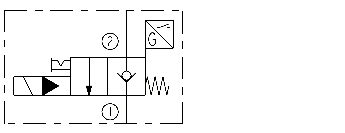

Operation of Manual Override Option: To override, push button in, twist counter-
clockwise 180°, and release. In this position, the valve will remain open.
To return to normal operation, push button in, twist clockwise 180°, and release.
Override will be detented in this position.

Product Features

 Continuous-duty rated coil.
 Hardened seat for long life and low leakage.
 Optional coil voltages and terminations.
 Cartridges are voltage interchangeable.
 Unitized, molded coil design.
 Manual override option.
 Optional waterproof E-Coils rated up to IP69K.
 Industry common cavity.
 Compact size.

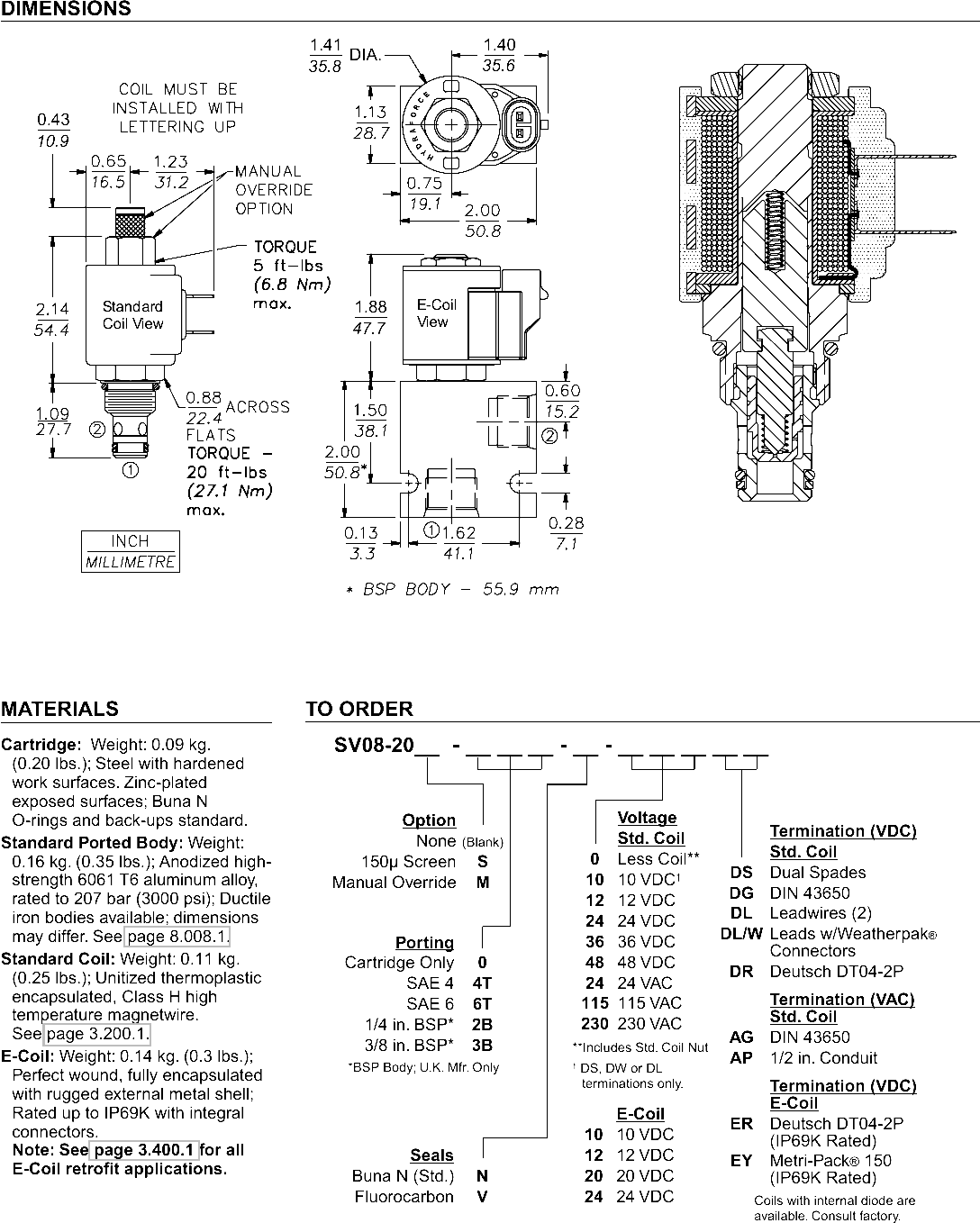

Product Ratings

Operating Pressure: 207 bar (3000 psi)
Proof Pressure: 255 bar (3700 psi)
Flow: See Performance Chart
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 207 bar (3000 psi)
Temperature: –40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:
Energized: 40 msec. De-energized: 46 msec.
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectifi ed). E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC08-2; See page 9.108.1
Cavity Tool: CT08-2XX; See page 8.600.1
Seal Kit: SK08-2X-T; See page 8.650.1
Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
