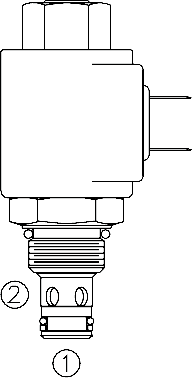

SF08-23 Poppet, 2-Way, Normally Open (SF08-23)

A solenoid-operated, 2-way, normally open, poppet-type, screw-in hydraulic cartridge valve, designed to function as a load holding or blocking valve in applications requir-ing low internal leakage at high pressure.

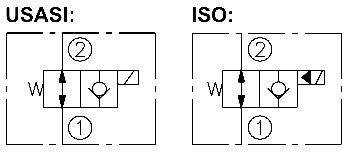

Product Operation

When de-energized, the SF08-23 poppet lifts to open from ➁ to ➀. In this mode, flow is also allowed from ➀ to ➁. When energized, the cartridge acts as a check valve, blocking flow from ➁ to ➀ after overcoming the solenoid force (requires 3.4 to 10.3 bar / 50 to 150 psi).
Operation of Manual Override Option: To override, push and hold override button.

Product Features

 Continuous-duty rated solenoid.
 Hardened seat for long life and low leakage.
 Optional coil voltages and terminations.
 Effi cient wet-armature construction.
 Cartridges are voltage interchangeable.
 Unitized, molded coil design.
 Manual override option.
 Optional waterproof E-Coils rated up to IP69K.
 Industry common cavity.

Product Ratings

Operating Pressure: 345 bar (5000 psi)

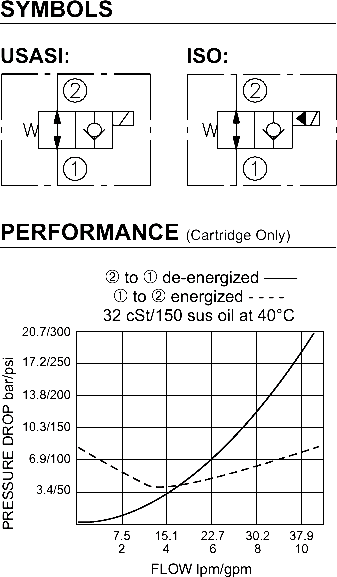

Flow: See Performance Chart
Internal Leakage: 0.15 cc/minute (3 drops/minute) max. at 345 bar (5000 psi)
Temperature: -40 to 100°C with standard polyurethane seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectifi ed). E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 345 bar (5000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

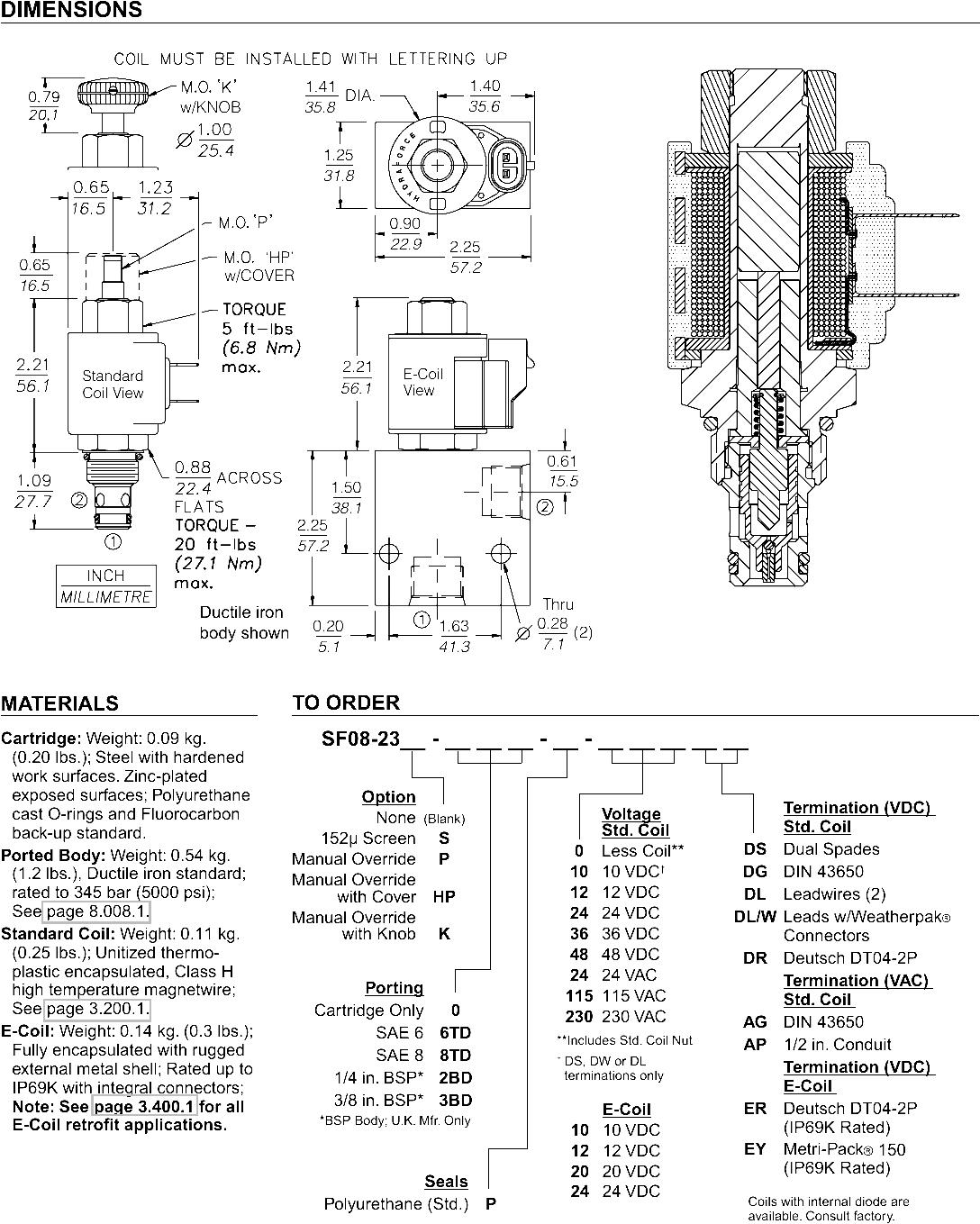

Cavity: VC08-2; See page 9.108.1
Cavity Tool: CT08-2XX; See page 8.600.1
Seal Kit: SK08-2P-T; See page 8.650.1
Coil Nut: Part No. 7004410; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
