SV12-60 Spool, 2-Position, 6-Way (SV12-60)

<div>
<h3>Product Operation</h3>
When de-energized, the SV12-60 allows bi-directional flow between 5 and 6, and between 1 and 2, while blocking flow at 3 and 4. When energized, the spool shifts to allow bidirectional flow between 4 and 5 and between 3 and 2, while blocking flow at 1 and 6.
</div>
<div>
<h3>Product Features</h3>
• Heavy-duty water resistant E-Coils rated up to IP69K.• Hardened spool and cage for long life.• Optional coil voltages and terminations.• All ports may be fully pressurized.• External metal-shell coil design.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi) max.
Proof Pressure: 483 bar (7000 psi) max.
Burst Pressure: 690 bar (10000 psi) max.
Flow: Up to 45.4 lpm (12 gpm); See Performance Chart
Leakage: 295 cc/minute (18 cu. in./minute) at 240 bar (3500 psi)
Temperature: -40 to 120°C with Buna N seals
Coil Duty Rating: See Chart
Response Time: Pull-In: 135 msec; Drop-Out: 30 msec
Initial Coil Current Draw at 20°C: 2.8 amps at 12 VDC
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-6; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-6XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-6X-MMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
E-Coil Nut: Part No. 7085180
</div>

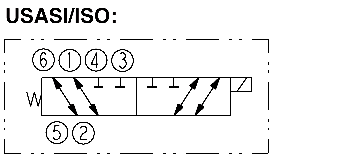

1-620-1-symbols

1-620-1-main-image

1-620-1-image-dimensions

1-620-1-symbols-graphs-image

1-620-1-graphs-image

A solenoid-operated, 2-position, 6-way, direct-acting spool-type, screw-in hydraulic cartridge valve. It is intended for use as a selector valve in selector or series/parallel drive circuits.

SV80-61 Spool, 6-Way, 2-Position, Selector Valve (SV80-61)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When de-energized, the SV80-61 blocks flow to ➄ and ➅, and allows flow between four and ➂, and between ➀ and ➁. When energized, the spool shifts to block flow to ports ➁ and ➂, while allowing flow between ➃ and ➄, and between ➀ and ➅Note: In circuits where this valve is used as a selector valve to direct flow between
two cylinders of unequal area ratios, the cylinder head sides should be connected to
ports ➂ and ➄, and the rod sides to ports ➁ and ➅
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoid.
• Hardened parts for long life.
• Optional coil voltages and terminations.
• Optional waterproof E-Coils rated up to IP69K.
• Cartridges are voltage interchangeable.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi) with standard Buna N seals
Flow: 7.6 lpm (2 gpm) max. See performance chart
Internal Leakage: 164 ml/minute (10 cu. in./minute) at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: Recommend ISO 4406 16/13; See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-6; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-6XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK80-6X-MMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400
</div>
</div>

1-640-1-symbols

1-640-1-main-image

1-640-1-image-dimensions

1-640-1-symbols-image

1-640-1-graphs-image

A solenoid-operated, two-position, six-way, direct-acting spool-type, screw-in hydraulic cartridge valve. It is intended for use as a selector valve in selector or series/parallel drive circuits.
