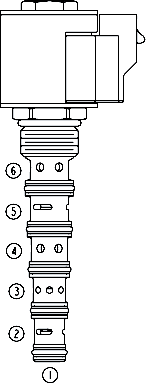

SV80-61 Spool, 6-Way, 2-Position, Selector Valve (SV80-61)

A solenoid-operated, two-position, six-way, direct-acting spool-type, screw-in hydraulic cartridge valve. It is intended for use as a selector valve in selector or series/parallel drive circuits.

Product Operation

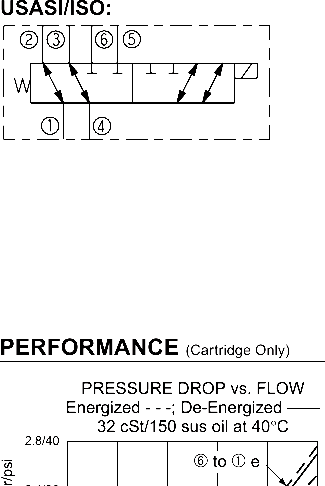

When de-energized, the SV80-61 blocks flow to ➄ and ➅, and allows flow between four and ➂, and between ➀ and ➁. When energized, the spool shifts to block flow to ports ➁ and ➂, while allowing flow between ➃ and ➄, and between ➀ and ➅Note: In circuits where this valve is used as a selector valve to direct flow between
two cylinders of unequal area ratios, the cylinder head sides should be connected to
ports ➂ and ➄, and the rod sides to ports ➁ and ➅

Product Features

 Continuous-duty rated solenoid.
 Hardened parts for long life.
 Optional coil voltages and terminations.
 Optional waterproof E-Coils rated up to IP69K.
 Cartridges are voltage interchangeable.

Product Ratings

Operating Pressure: 207 bar (3000 psi) with standard Buna N seals

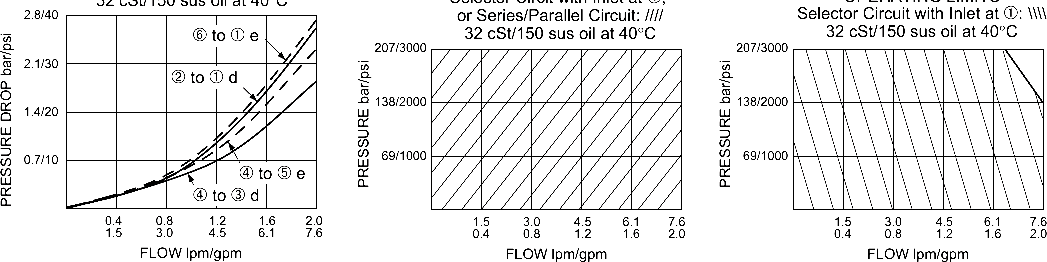

Flow: 7.6 lpm (2 gpm) max. See performance chart
Internal Leakage: 164 ml/minute (10 cu. in./minute) at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: Recommend ISO 4406 16/13; See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

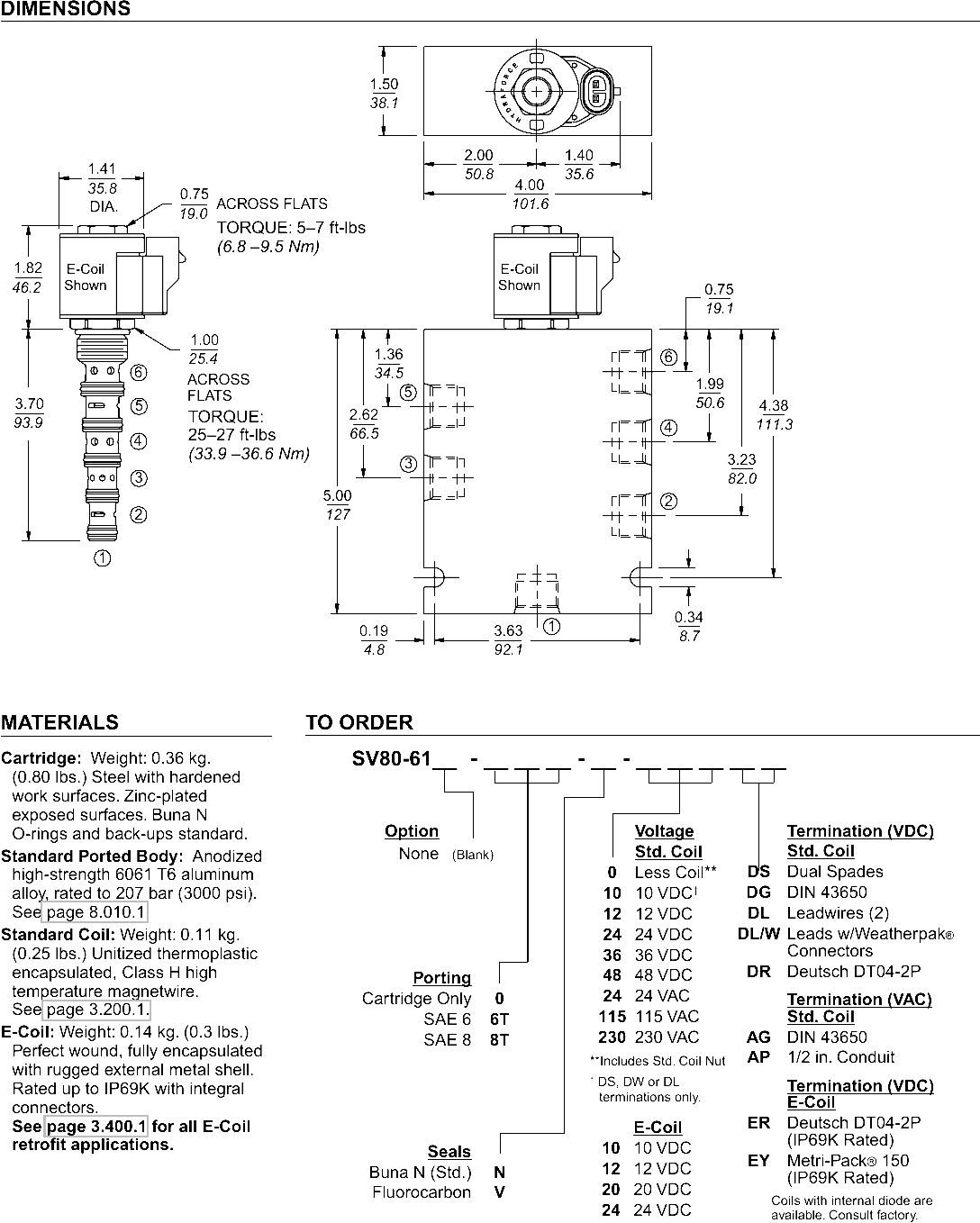

Cavity: VC10-6; See page 9.110.1
Cavity Tool: CT10-6XX; See page 8.600.1
Seal Kit: SK80-6X-MMMMM; See page 8.650.1
Coil Nut: Part No. 7004400
