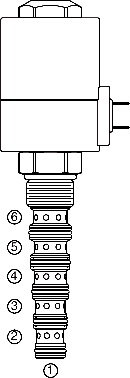

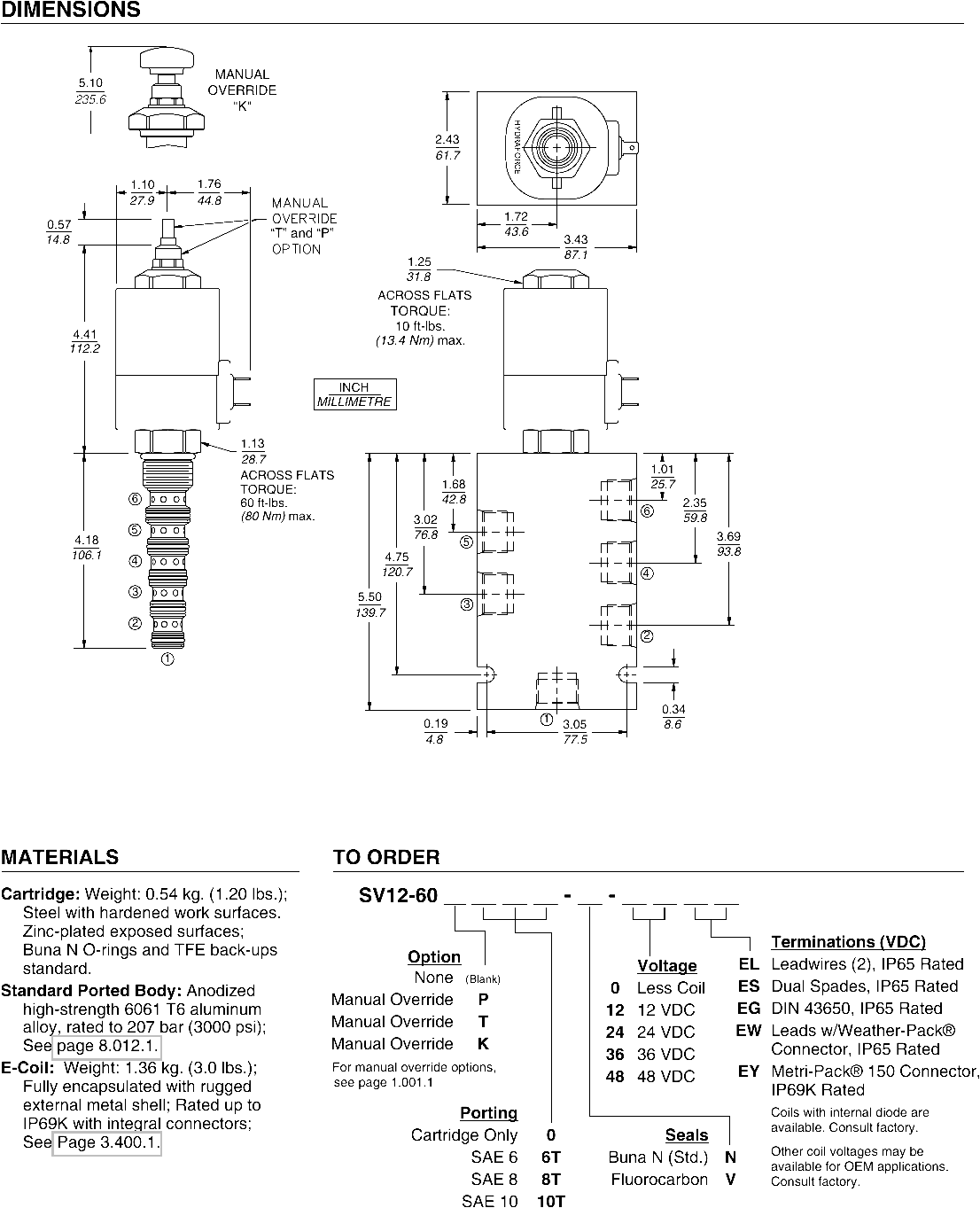

SV12-60 Spool, 2-Position, 6-Way (SV12-60)

A solenoid-operated, 2-position, 6-way, direct-acting spool-type, screw-in hydraulic cartridge valve. It is intended for use as a selector valve in selector or series/parallel drive circuits.

Product Operation

When de-energized, the SV12-60 allows bi-directional flow between 5 and 6, and between 1 and 2, while blocking flow at 3 and 4. When energized, the spool shifts to allow bidirectional flow between 4 and 5 and between 3 and 2, while blocking flow at 1 and 6.

Product Features

• Heavy-duty water resistant E-Coils rated up to IP69K.• Hardened spool and cage for long life.• Optional coil voltages and terminations.• All ports may be fully pressurized.• External metal-shell coil design.

Product Ratings

Operating Pressure: 240 bar (3500 psi) max.
Proof Pressure: 483 bar (7000 psi) max.
Burst Pressure: 690 bar (10000 psi) max.

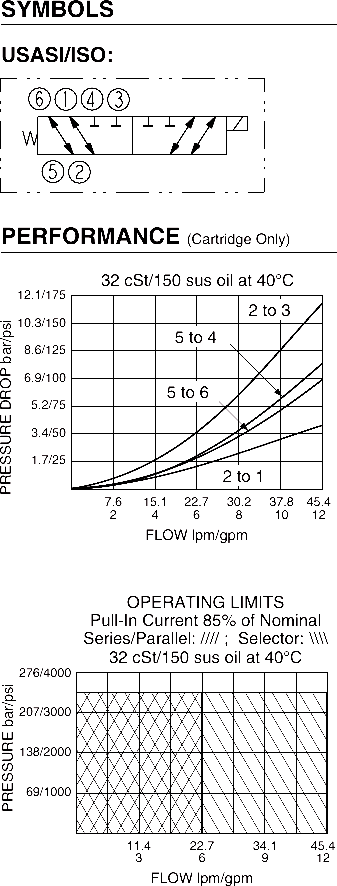

Flow: Up to 45.4 lpm (12 gpm); See Performance Chart
Leakage: 295 cc/minute (18 cu. in./minute) at 240 bar (3500 psi)
Temperature: -40 to 120°C with Buna N seals

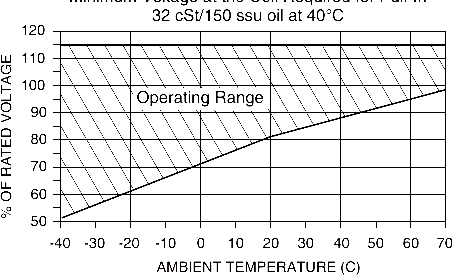

Coil Duty Rating: See Chart
Response Time: Pull-In: 135 msec; Drop-Out: 30 msec
Initial Coil Current Draw at 20°C: 2.8 amps at 12 VDC
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC12-6; See page 9.112.1
Cavity Tool: CT12-6XX; See page 8.600.1
Seal Kit: SK12-6X-MMMMM; See page 8.650.1
E-Coil Nut: Part No. 7085180
