SV07-35 Spool, 3-Way (SV07-35)

A solenoid-operated, two-position, three-way, direct-acting, spool-type, screw-in hydraulic cartridge valve.

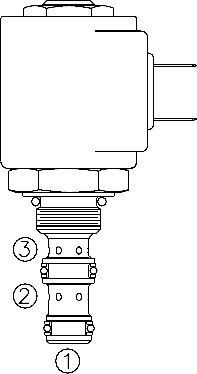

Product Operation

When de-energized, the SV07-35 blocks flow at 1, while allowing flow from 2 to 3.
When energized, the spool shifts to provide flow from 2 to 1, while blocking at 3.

Product Features

 Continuous-duty rated solenoid.
 Hardened precision spool and cage for long life.
 Optional coil voltages and terminations.
 Efficient wet-armature construction.
 Cartridges are voltage interchangeable.
 All ports may be fully pressurized.
 Optional waterproof E-Coils rated up to IP69K.
 Unitized molded coil design.
 Compact size.

Product Ratings

Operating Pressure: 207 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage: 41 cc/minute (2.5 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectified);E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC07-3; See page 9.107.1
Cavity Tool: CT07-3XX; See page 8.600.1
Seal Kit: SK07-3X-MM; See page 8.650.1
Standard Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.

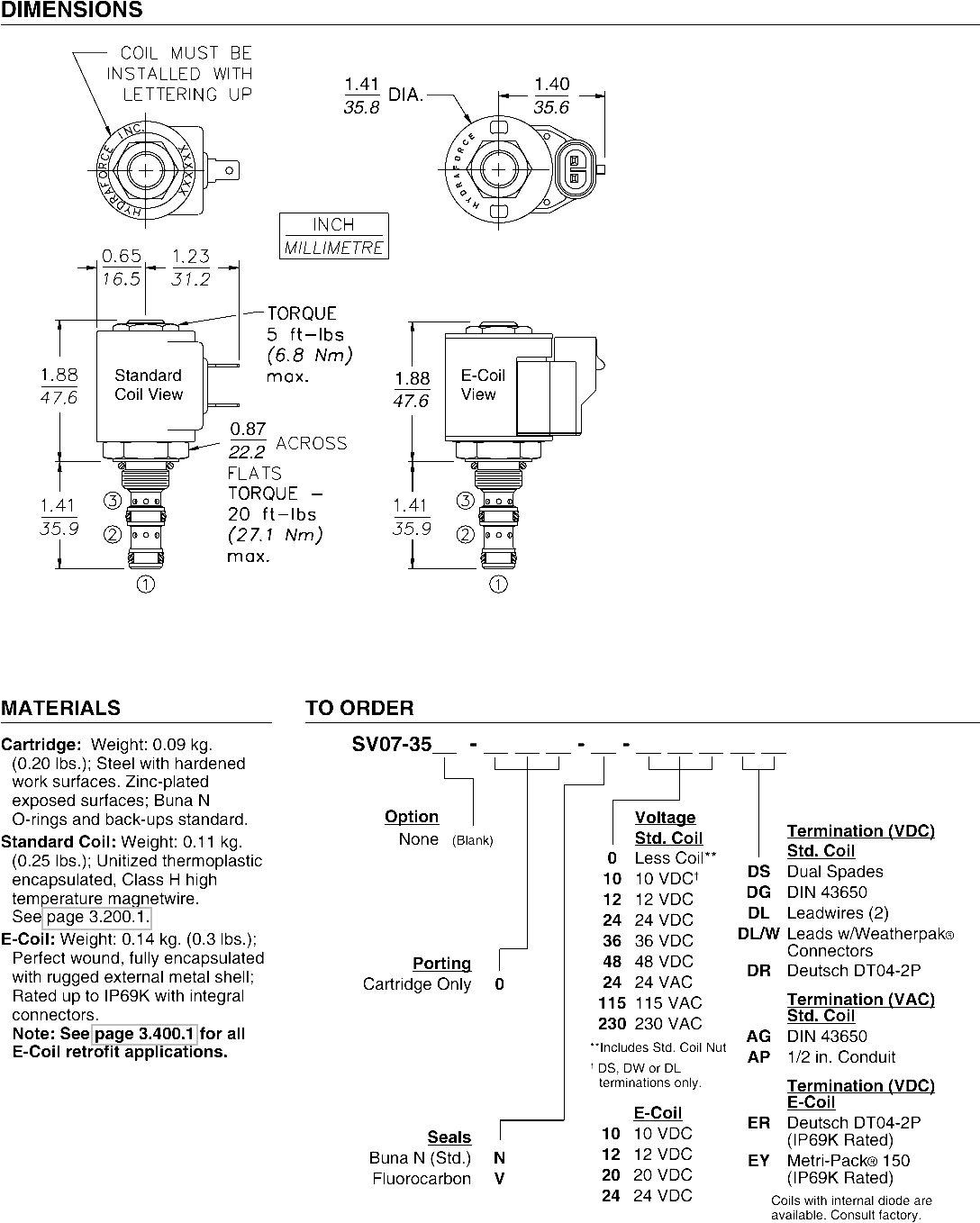

ISO SYMBOL

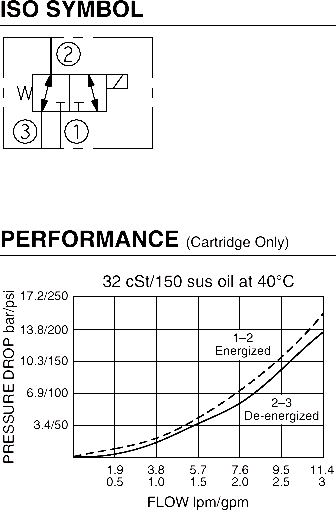

1.386.113.8/20010.3/15017.2/2506.9/1003.4/501.90.57.62.011.439.52.5FLOW lpm/gpmPRESSURE DROP bar/psi32 cSt/150 sus oil at 40°C5.71.53.81.01–2Energized2–3De-energized
