Contact usSV38-38 Double Blocking, 2 Position, 3-Way, N.C. (SV38-38)

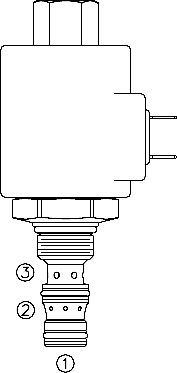

A solenoid-operated, two-position, three-way, bi-directional blocking, screw-in hydraulic cartridge valve. It is designed for low leakage in load-holding applications.
Product Operation
When de-energized, the SV38-38 blocks flow from 3 to 2 or from 2 to 3.
When energized, flow is blocked from 2 to 1 or from 1 to 2.
Product Features
• Continuous-duty rated solenoid.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Unitized, molded coil design.
• Industry-common cavity.
Product Ratings
Operating Pressure: 207 bar (3000 psi)

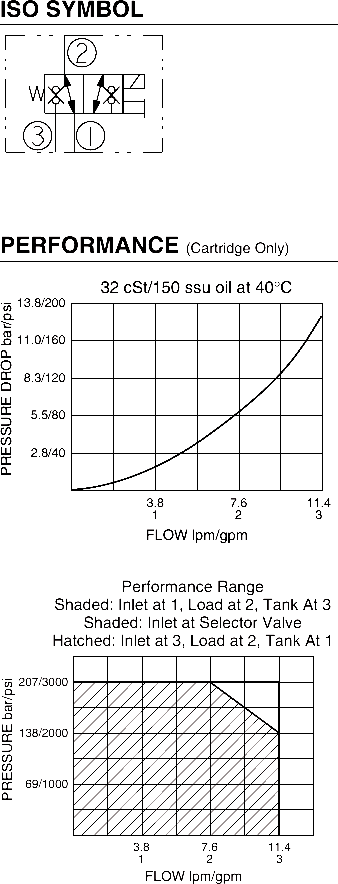

Flow: See Performance Chart
Internal Leakage: 0.25 cc/minute (5 drops/minute) at 207 bar (3000 psi)
Temperature: -40 to 100°C with standard Buna seals;-26 to 204°C with Fluorocarbon seals; -54 to 107°C with Polyurethane seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1

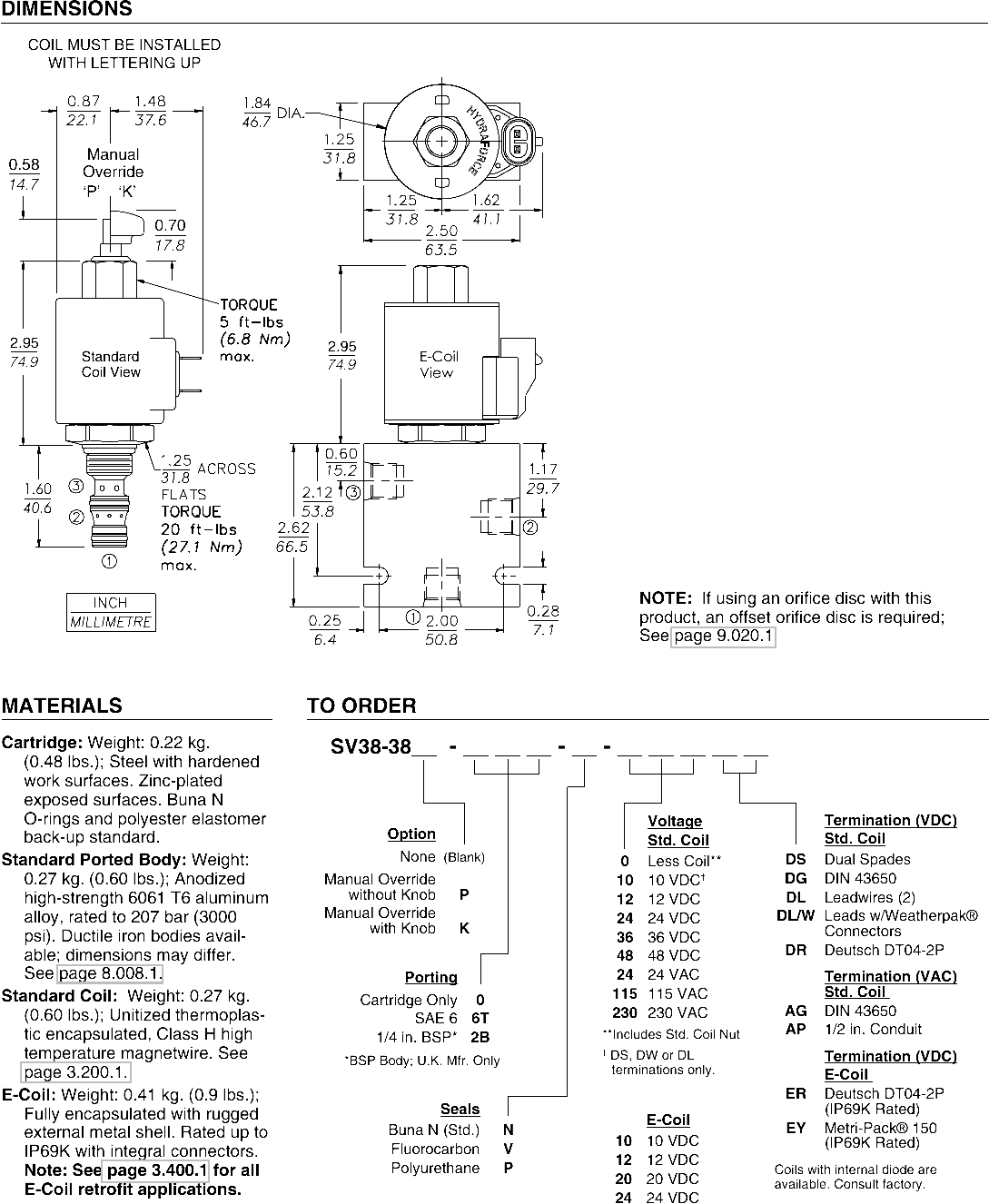

Installation: If using an orifice disc with this product, an offset orifice disc is required; See page 9.020.1
Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK38-3X-MM; See page 8.650.1
Coil Nut: Part No. 7004420; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
