SV58-30 Spool, 3-Way, High Pressure (SV58-30)

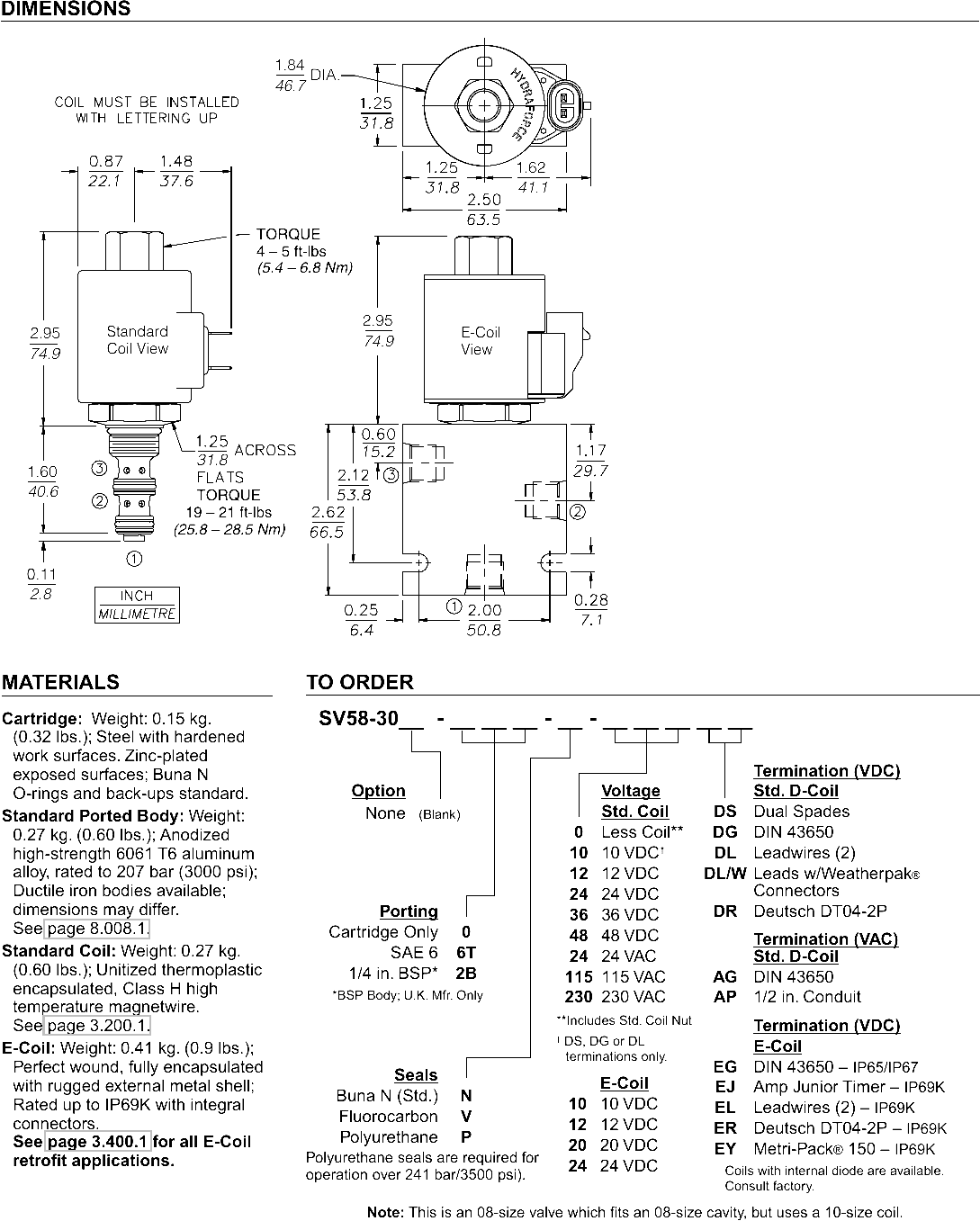

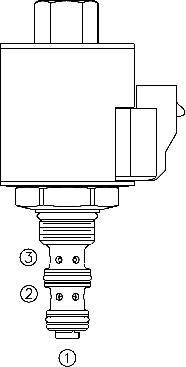

A solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic directional valve designed for high pressure operation up to 345 bar (5000 psi).

Product Operation

When de-energized, the SV58-30 allows flow from ➁ to ➀ while blocking flow at ➂When energized, the cartridge’s spool shifts to open from ➂ to ➁, while blocking flow out ➀Note: Port ➀ must be connected to tank. Valve cannot withstand more than 276 bar (4000 psi) at the inlet of port ➀

Product Features

 Continuous-duty rated solenoid.
 Hardened precision spool and cage for long life.
 Optional coil voltages and terminations.
 Effi cient wet-armature construction.
 Cartridges are voltage interchangeable.
 Optional waterproof E-Coils rated up to IP69K.
 Unitized, molded coil design.
 Fully guided spool.
 Compact size.

Product Ratings

Operating Pressure: 345 bar (5000 psi)
Flow: See Performance Chart
Internal Leakage: Port ➂ (De-energized): 131 ml/minute (8 cu. in./minute) max. at 345 bar (5000 psi); Port ➀ (Energized): 279 ml/minute (17 cu. in./minute) max. at 345 bar (5000 psi)
Temperature: -40 to 120°C with standard Buna seals; -26 to 204°C with Fluorocarbon seals; -54 to 107°C with Polyurethane seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:
Energized: 22 msec.; De-energized: 12 msec.
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectifi ed); E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC08-3, Variation “A”; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK58-3X-MM; See page 8.650.1
Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.
