SV07-34 Spool, 3-Way (SV07-34)

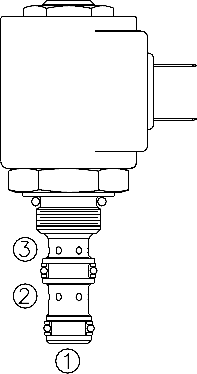

A solenoid-operated, two-position, three-way, direct-acting, spool-type, screw-in hydraulic cartridge valve.

Product Operation

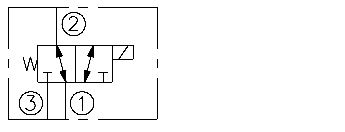

When de-energized, the SV07-34 blocks flow at 1 while allowing flow from 3 to 2.
When the coil is energized, flow is provided from 2 to 3, while blocking at 1.

Product Features

 Continuous-duty rated solenoid.
 Hardened precision spool and cage for long life.
 Optional coil voltages and terminations.
 Efficient wet-armature construction.
 Cartridges are voltage interchangeable.
 All ports may be fully pressurized.
 Optional waterproof E-Coils rated up to IP69K.
 Unitized molded coil design.
 Compact size.

Product Ratings

Operating Pressure: 207 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage: 81.1 cc/minute (5 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C (-40° to 248°F) with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectified); E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC07-3; See page 9.107.1
Cavity Tool: CT07-3XX; See page 8.600.1
Seal Kit: SK07-3X-MM; See page 8.650.1
Standard Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.

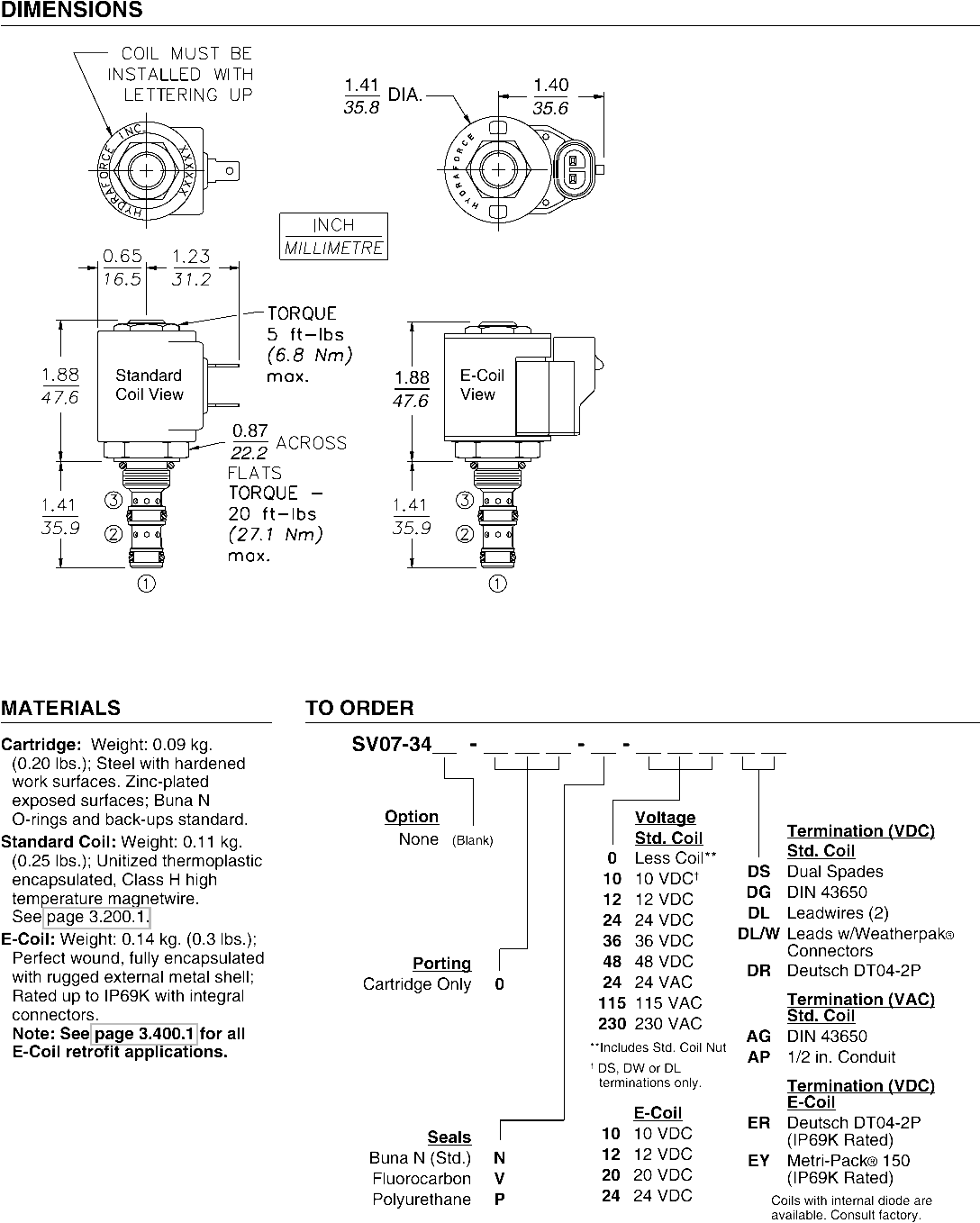

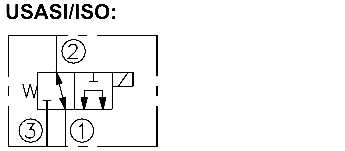

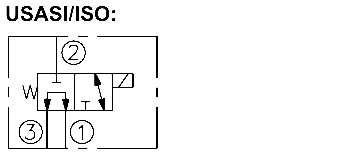

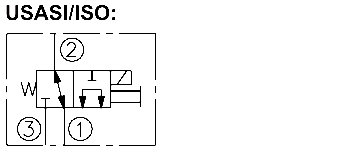

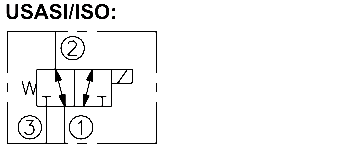

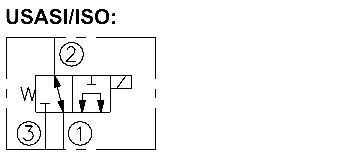

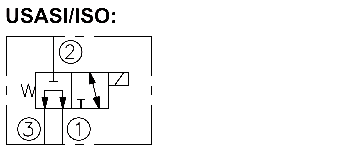

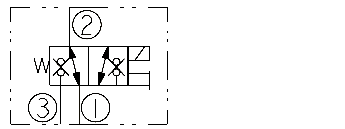

ISO SYMBOL

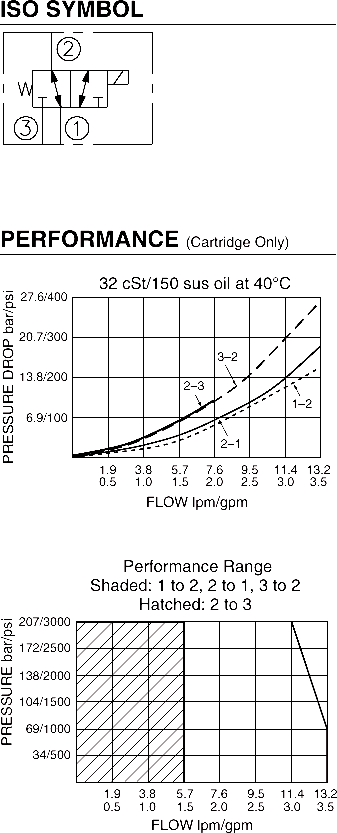

1.376.1PRESSURE DROP bar/psi27.6/40020.7/30013.8/2006.9/1003.81.07.62.011.43.013.23.5FLOW lpm/gpm32 cSt/150 sus oil at 40°C1.90.55.71.53–22–32–11–29.52.5207/3000138/2000104/1500172/250069/100034/5003.81.01.90.5FLOW lpm/gpmPRESSURE bar/psiPerformance RangeShaded: 1 to 2, 2 to 1, 3 to 2 Hatched: 2 to 3 7.62.05.71.511.43.013.23.59.52.5

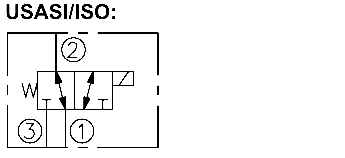

SV58-30 Spool, 3-Way, High Pressure (SV58-30)

Read More

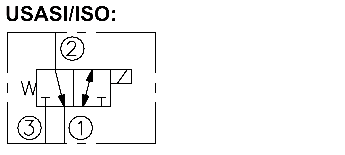

SV38-38 Double Blocking, 2 Position, 3-Way, N.C. (SV38-38)

Read More

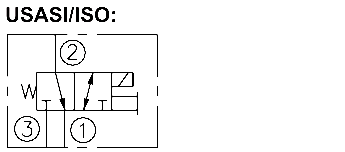

SV38-31J Spool, 3-Way (SV38-31J)
