HSPEC16-30 Proportional Flow Control Valve (HSPEC16-30)

A high pressure, proportional, solenoid-operated, 3-way, normally-closed, flow control, screw-in hydraulic cartridge valve intended for post-compensated applications with load-sense systems. In post-compensated systems, the load-sense port 1 of the HSPEC16-30 valve is connected to the highest load, which maintains flow sharing when flow demand exceeds flow supply. Pressure compensation value of the valve defined as pressure difference between inlet and load sense ports is provided by appropriate setup of a pump load sense control or by additional pressure compensa-tor valve, one for the whole system, in case the pump is non-adjustable.

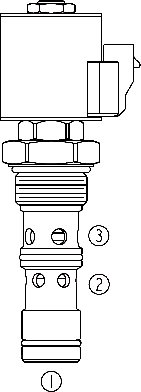

Product Operation

When de-energized, the HSPEC16-30 blocks flow from port 3 to port 2. The valve will regulate flow out of port 2 regardless of load pressure with flow rate proportional to current applied to the solenoid.

Product Features

 Industry-common cavity.
 Efficient wet-armature construction.
 Continuous-duty rated coils.
 Optional waterproof E-Coils rated up to IP69K.
 Reduced manifold space claim.
 Flow sharing possible
 All HyPerformance™ valves are tested to the rigorous standards of NFPA specifition T2.6.1 and are tested at a verfication level of 90% and an assurance of 99%.

Product Ratings

Operating Pressure: 350 bar (5075 psi); 10% cycle life; 420 bar (6090 psi) Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1241 bar (18000 psi)

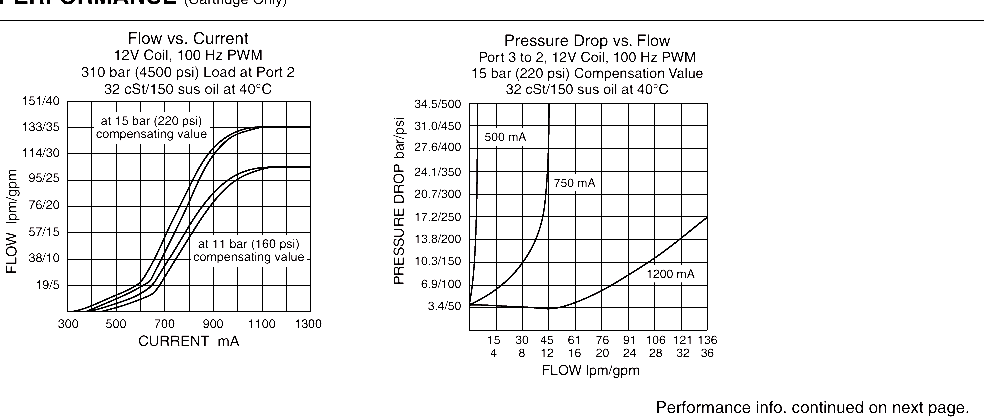

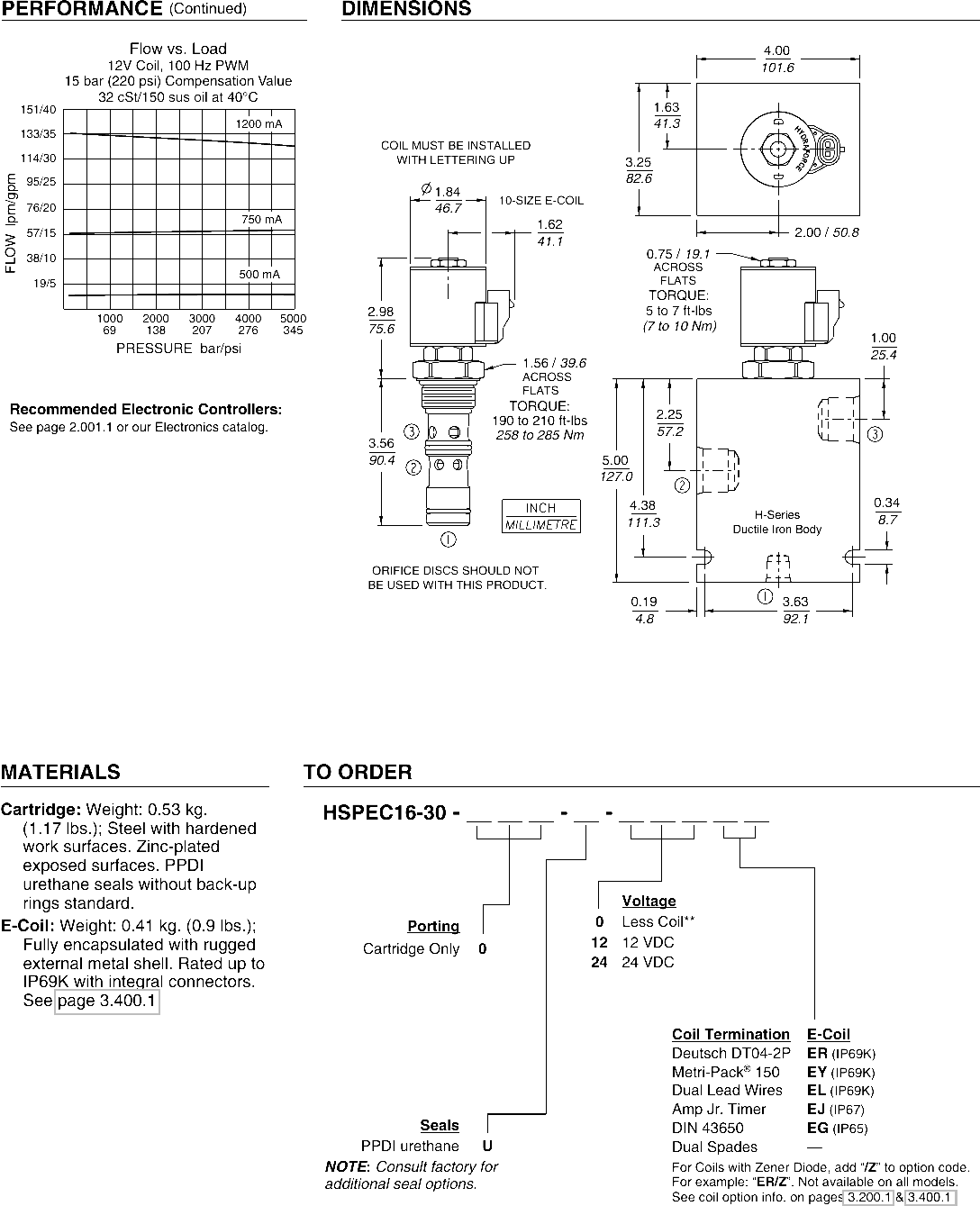

Flow Rating: 132 lpm (35 gpm) at 220 psi (15 bar) compensation value; 102 lpm (27 gpm) at 160 psi (11 bar) compensation value.
Internal Leakage: Port 3 to port 2 or port 1 to port 2: 7 drops/minute with 350 bar (5075 psi) at port 3.
Operating Temperature: -54° to 107°C (-65° to 225° F) with urethane seals
Installation: No restrictions; See page 9.020.1;
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Cavity: HVC16-3SPEC; See page 9.116.1
Cavity Tool: HCT16-3SPEC; See page 8.600.1
Seal Kit: HSK16-3U-0; See page 8.650.1

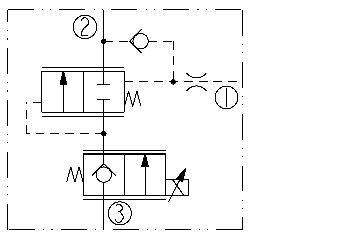

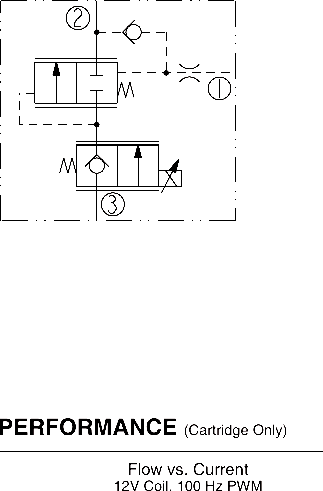

ISO SYMBOL
