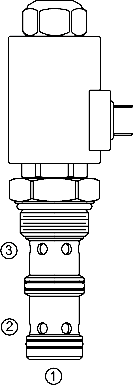

PV76-31A Proportional Flow Control Cartridge, (PV76-31A)

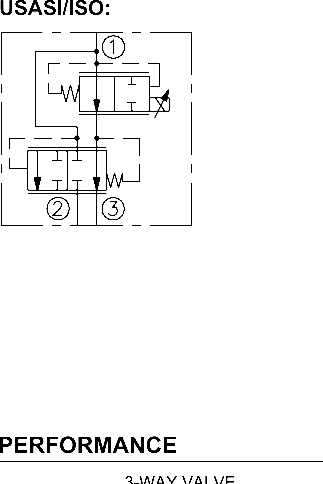

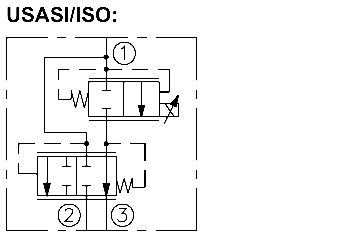

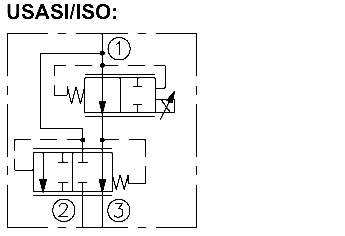

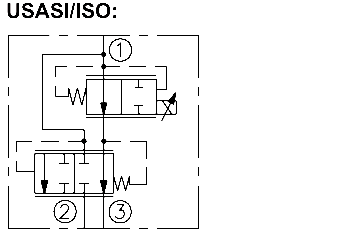

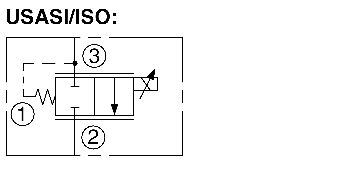

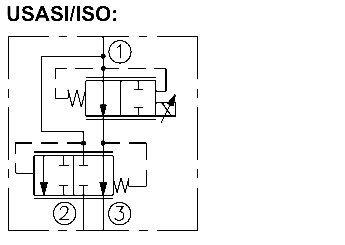

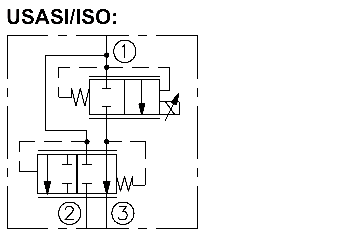

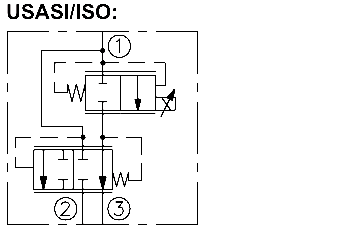

A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally open when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type, two-way, pressure-compensated flow regulator when the bypass line (port ➁) is blocked.

Product Operation

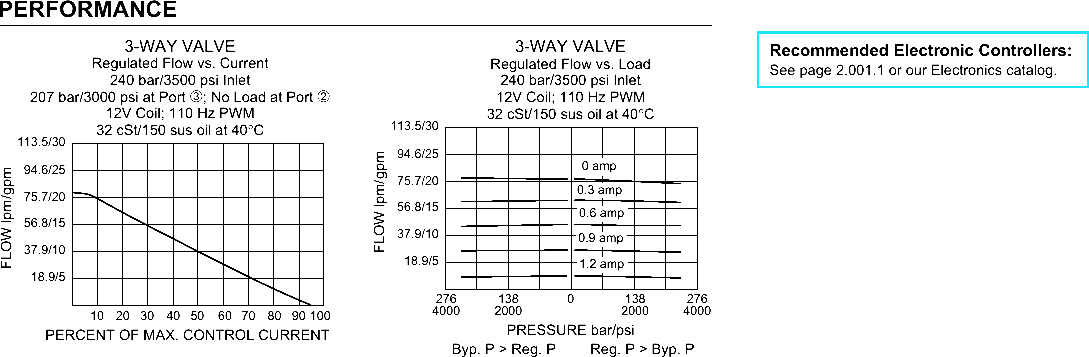

The PV76-31A will regulate flow out of port ➂ regardless of system working pressure. With an increasing current applied to the solenoid, output flow will decrease.
Note: When used as a bypass flow control in applications where the priority flow port
will be blocked by external valving, bypass pressure drop will increase unless a small
amount of leakage is provided for the priority port. Consult factory.
Operation of Manual Override: To Engage: Turn clockwise approximately 1 turn to
reach start point. Continue another approximately 5 turns to full shift. To Disengage:
Turn counterclockwise approximately 6 turns to positive stop.

Product Features

• Excellent linearity and hysteresis characteristics.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Effi cient wet armature construction.

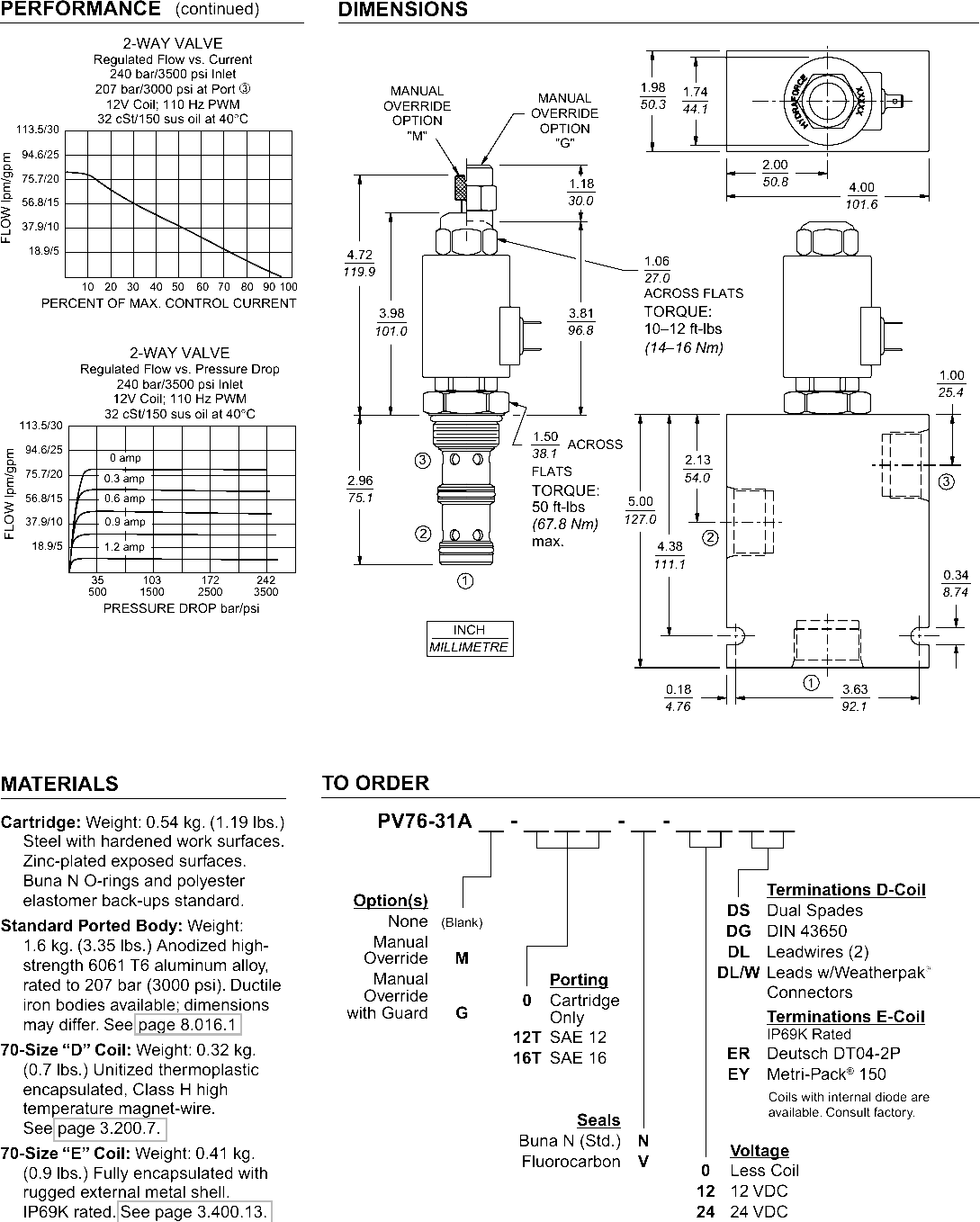

Product Ratings

Operating Pressure: Inlet: 240 bar (3500 psi); Ports ➁ and ➂: 207 bar (3000 psi)
Regulated Flow Rate: 3-Ported: 75.7 lpm (20.0 gpm)
2-Ported: 79.5 lpm (21.0 gpm)
Maximum Input Flow: Bypass Open, 3-Ported: 151.4 lpm (40.0 gpm)
Internal Leakage: 0.38 lpm (0.10 gpm) at maximum current
Electrical: 2 standard voltage ratings
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1.
Cavity: VC16-3; See page 9.116.1;
Cavity Tool: CT16-3X-XX; See page 8.600.1
Seal Kit: SK16-3X-MM; See page 8.650.1 for seal kit options and appropriate seals based on application temperature range.
