MP08-30 Manual, Spring Return, Pull-to-Shift (MP08-30)

<div>
<h3>Product Operation</h3>
In its steady-state, spring-offset position, the MP08-30 directs flow from ➁ to ➀, while blocking at ➂In the actuated (pulled) position, the cartridge directs flow from ➂ to ➁, blocking ➀. The spring chamber is vented at ➀Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
A unique pull-and-rotate feature for holding the positive actuated position is optional.
A 90° rotation is required to position at the hold slot. The valve resets to spring-return
de-actuated with a slight pull and a 90° turn from the locked actuated position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Pressure to 14 bar (200 psi) on ➀
• Optional rotational lock position.• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure:On ➂ to ➁: 240 bar (3500 psi)On ➀ (Max.): 14 bar (200 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max.
Mechanical Pull Effort Required: 7.7 kg. (17 lbs.) installed; 8.6 kg. (19 lbs.) to travel 3.2 mm (0.125 in.); 9.1 kg. (20 lbs.) to detent
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-MT; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

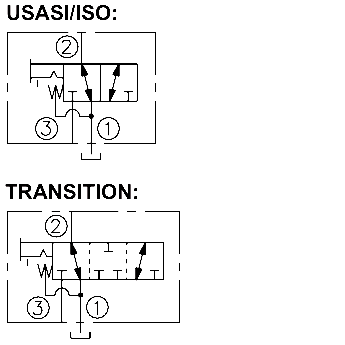

4-620-1-symbols

4-620-1-image-dimensions

4-620-1-main-image

4-620-1-symbols-graphs-image

A 3-way, manual, pull-to-shift, spring-return, directional hydraulic cartridge valve.Series operation is prohibited due to the tank port (➀) pressure rating.

MP08-34 Manual, Spring Return, Pull-to-Shift (MP08-34)

<div>
<h3>Product Operation</h3>
In its steady-state, spring-offset position, the MP08-34 blocks flow from ➁ to ➂In the actuated (pulled) position, the cartridge directs flow from ➂ to ➁. The spring chamber is vented at ➀. When released, the valve returns to its steady state.Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Pressure to 14 bar (200 psi) on ➀
• Optional rotational lock position.• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure:On ➂ to ➁: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 33 cc/minute (2 cu. in./minute) max. at 207 bar (3000 psi)
Mechanical Pull Effort Required: 7.3 kg. (17 lbs.) installed; 8.6 kg. (19 lbs.) to travel 3.2 mm (0.125 in.); 9.1 kg. (20 lbs.) to detent
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-MT; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

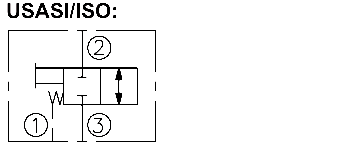

4-625-1-symbols

4-625-1-image-dimensions

4-625-1-main-image

4-625-1-symbols-graphs-image

A 3-way, manual, pull-to-shift, spring-return, directional hydraulic cartridge valve.

MP58-30 Manual, Spring Return, Pull-to-Shift (MP58-30)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In its steady-state, spring-offset position, the MP58-30 directs flow from ➁ to ➀, while blocking at ➂In the actuated (pulled) position, the cartridge directs flow from ➂ to ➁, blocking ➀. The spring chamber is vented at ➀Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
A unique pull-and-rotate feature for holding the positive actuated position is optional.
A 90° rotation is required to position at the hold slot. The valve resets to spring-return
de-actuated with a slight pull and a 90° turn from the locked actuated position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Pressure to 14 bar (200 psi) on ➀
• Optional rotational lock position.• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure:On ➂ to ➁: 345 bar (5000 psi)On ➀ (Max.): 14 bar (200 psi)
Flow: See Performance Chart
Internal Leakage: 147 cc/minute (9 cu. in./minute) max. at 345 bar (5000 psi)
Mechanical Pull Effort Required: 7.7 kg. (17 lbs.) installed; 8.6 kg. (19 lbs.) to travel 3.2 mm (0.125 in.); 9.1 kg. (20 lbs.) to detent
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3P-MT; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>

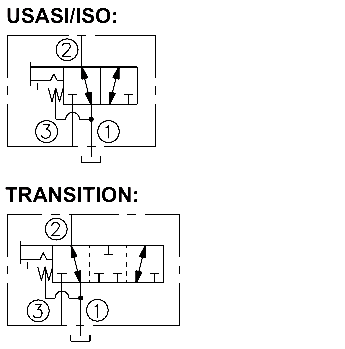

4-621-1-symbols

4-621-1-image-dimensions

4-621-1-symbols-graphs-image

4-621-1-main-image

Default Confirmation

Enter consent agreement text here.  The Consent Field will store this agreement text with the form entry in order to track what the user has consented to.

Admin Notification

New Newsletter Submission

Newsletter

BFPA-Logo-White

ISO9001 LOGO_White

ISO14001 LOGO_White

Logo

moog_savery_test_solutions_logo_vertical

Contact us

With over 300 years of engineering experience, Savery designs and manufactures high-quality hydraulic systems tailored to your needs. If you're interested in this product, fill in our contact form, and our team will be in touch.

Directional Valves

Manually-Operated, 3-Way Valves

directional-valves

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce / Oil Control

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

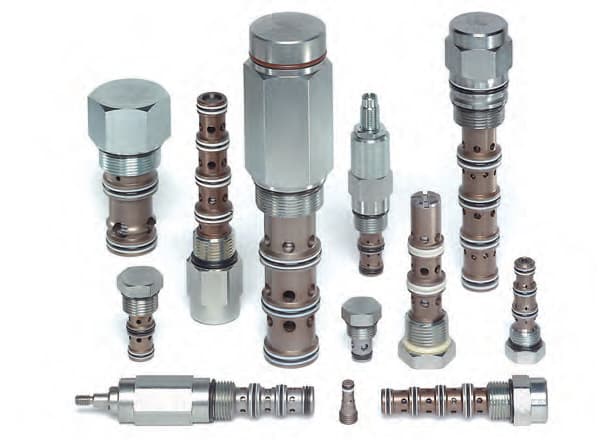

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.
