Contact usMP08-34 Manual, Spring Return, Pull-to-Shift (MP08-34)

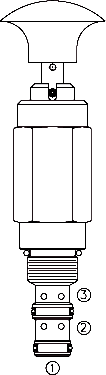

A 3-way, manual, pull-to-shift, spring-return, directional hydraulic cartridge valve.

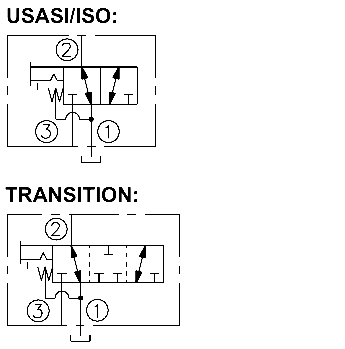

Product Operation

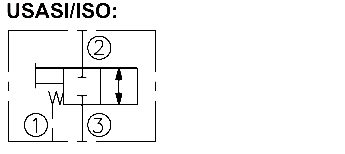

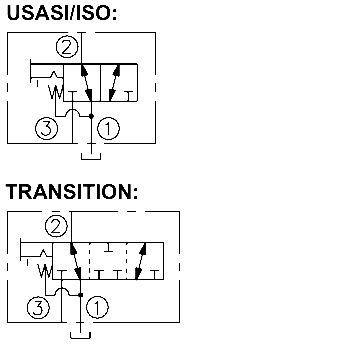

In its steady-state, spring-offset position, the MP08-34 blocks flow from ➁ to ➂In the actuated (pulled) position, the cartridge directs flow from ➂ to ➁. The spring chamber is vented at ➀. When released, the valve returns to its steady state.Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
Product Features
• Hardened spool and cage for long life.
• Pressure to 14 bar (200 psi) on ➀
• Optional rotational lock position.• Compact size.
Product Ratings
Operating Pressure:On ➂ to ➁: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)

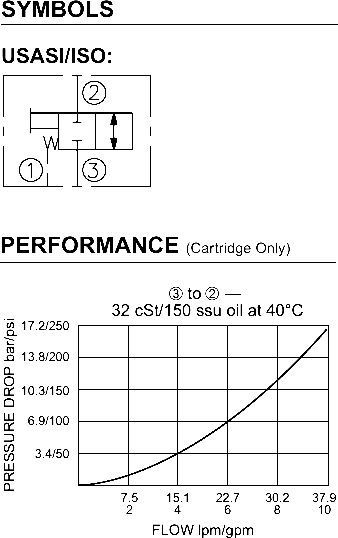

Flow: See Performance Chart
Internal Leakage: 33 cc/minute (2 cu. in./minute) max. at 207 bar (3000 psi)
Mechanical Pull Effort Required: 7.3 kg. (17 lbs.) installed; 8.6 kg. (19 lbs.) to travel 3.2 mm (0.125 in.); 9.1 kg. (20 lbs.) to detent
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

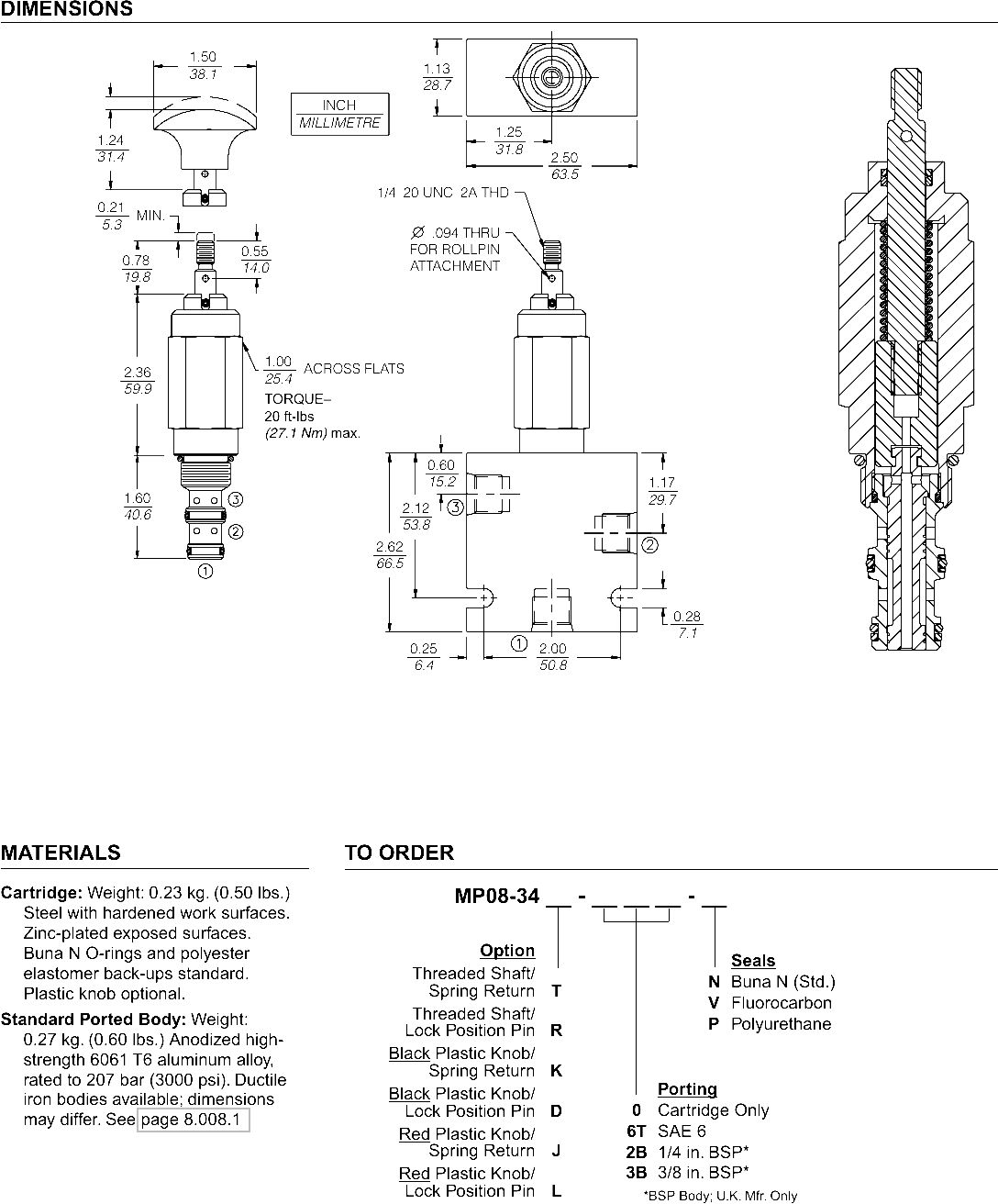

Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK08-3X-MT; See page 8.650.1
