Contact usMP58-30 Manual, Spring Return, Pull-to-Shift (MP58-30)

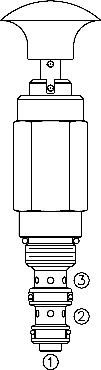

A 3-way, manual, pull-to-shift, spring-return, directional hydraulic cartridge valve.Series operation is prohibited due to the tank port (➀) pressure rating.
Product Operation
In its steady-state, spring-offset position, the MP58-30 directs flow from ➁ to ➀, while blocking at ➂In the actuated (pulled) position, the cartridge directs flow from ➂ to ➁, blocking ➀. The spring chamber is vented at ➀Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
A unique pull-and-rotate feature for holding the positive actuated position is optional.
A 90° rotation is required to position at the hold slot. The valve resets to spring-return
de-actuated with a slight pull and a 90° turn from the locked actuated position.
Product Features
• Hardened spool and cage for long life.
• Pressure to 14 bar (200 psi) on ➀
• Optional rotational lock position.• Compact size.
Product Ratings
Operating Pressure:On ➂ to ➁: 345 bar (5000 psi)On ➀ (Max.): 14 bar (200 psi)

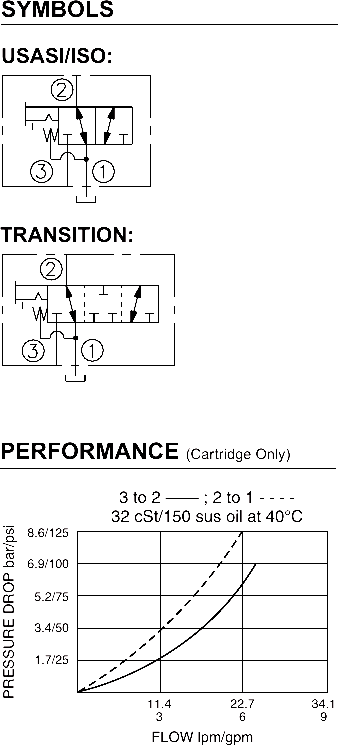

Flow: See Performance Chart
Internal Leakage: 147 cc/minute (9 cu. in./minute) max. at 345 bar (5000 psi)
Mechanical Pull Effort Required: 7.7 kg. (17 lbs.) installed; 8.6 kg. (19 lbs.) to travel 3.2 mm (0.125 in.); 9.1 kg. (20 lbs.) to detent
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

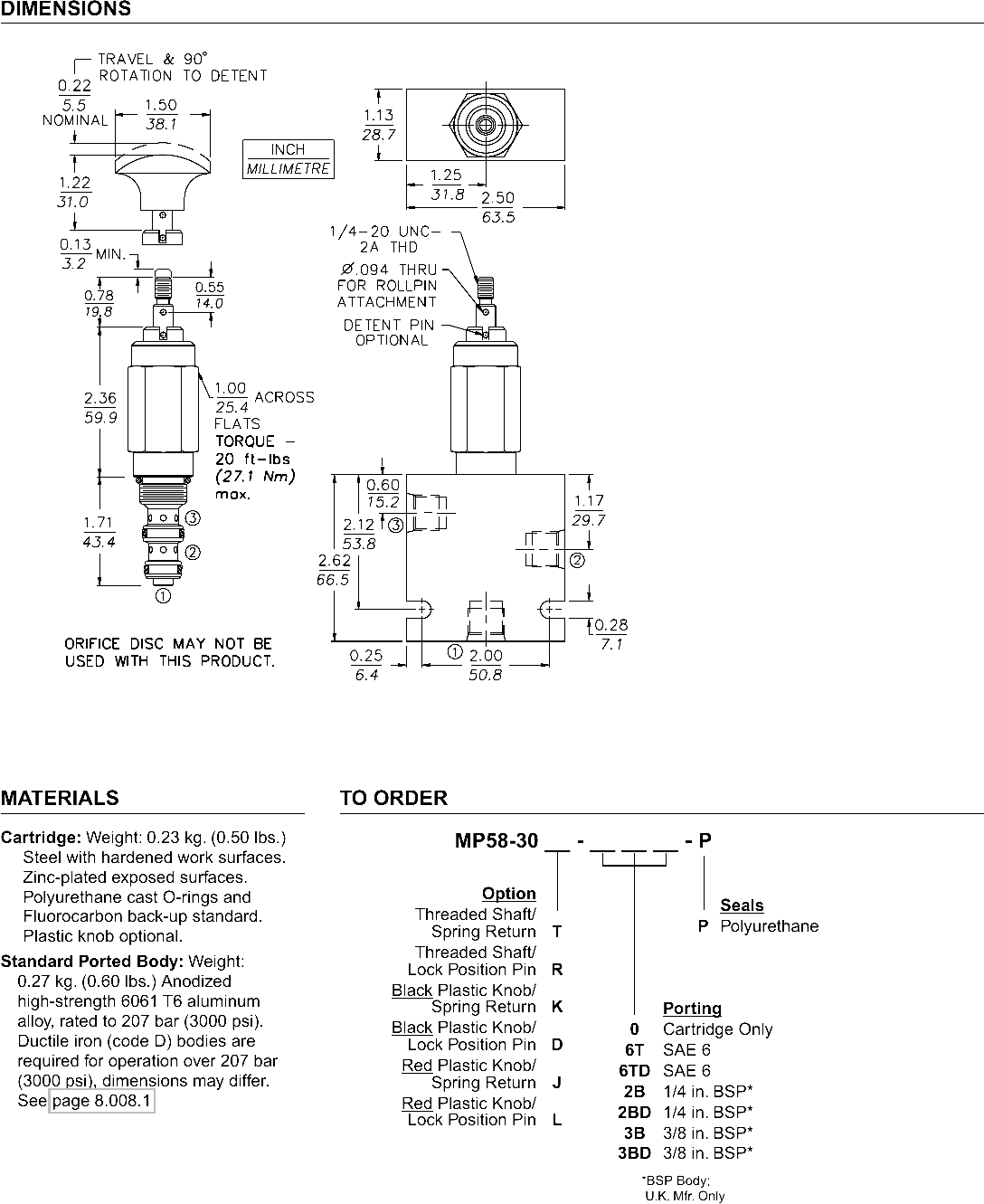

Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK08-3P-MT; See page 8.650.1
