HPV12-31 HyPerformance™ Proportional Flow, (HPV12-31)

A high pressure, solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally open when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compen-sated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.

Product Operation

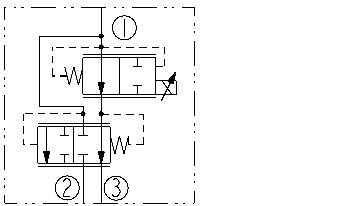

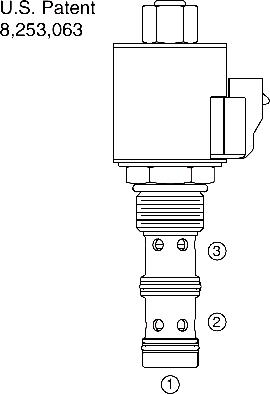

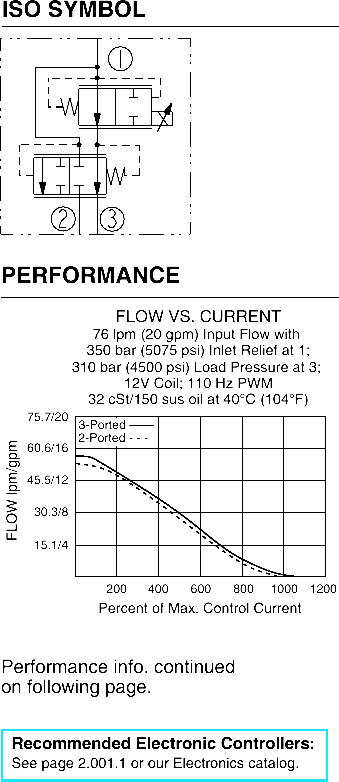

With inlet flow at port 1, the HPV12-31 will regulate priority flow out of port 3 regard-less of system working pressure, with flow rate inversely proportional to current applied to the solenoid. Excess flow will bypass out of port 2 and can be used for auxiliary function control.
Note: Avoid dead-heading of priority line by external valving to prevent blocking of bypass line. In restrictive mode applications, bypass port 2 has to be blocked. Flow rate out of port 3 remains inversely proportional to current applied to the solenoid regardless of load (pressure) applied to port 3.

Product Features

• Excellent linearity and hysteresis.
• 2 or 3-ported operation.
• Compensated flow control.
• Coil waterproofing standard.
• Patented high-strength solenoid tube.
• Uses more compact 10-size coil.
• Efficient wet armature construction.
• Hardened spool and cage for long life.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.

Product Ratings

Operating Pressure: 350 bar (5075 psi); 10% life cycle 420 bar (6090 psi) Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K cycles at 420 bar.
Proof Pressure: 690 bar (10,000 psi)
Burst Pressure: 1380 bar (20,000 psi)
Regulated Flow Rate: 76 lpm (20 gpm) nominal input; 114 lpm (30 gpm) maximum input; priority type 57 lpm (15 gpm) maximum; restrictive type 53 lpm (14 gpm) maximum.
Max. Internal Leakage: 380 ml/min. (0.10 gpm) at port 3 at 1200 mA current with 350 bar (5075 psi) at port 1 (port 2 blocked)
Temperature: -54°C – 107°C (-65°F – 225°F) with PPDI Urethane seals
Electrical Parameters (with size 10 E-series coil):
Coil Voltage
Rating
Coil Inductance
(mH)
Threshold Current
(mA)
Maximum Control
Current (mA)1224710010502497350525

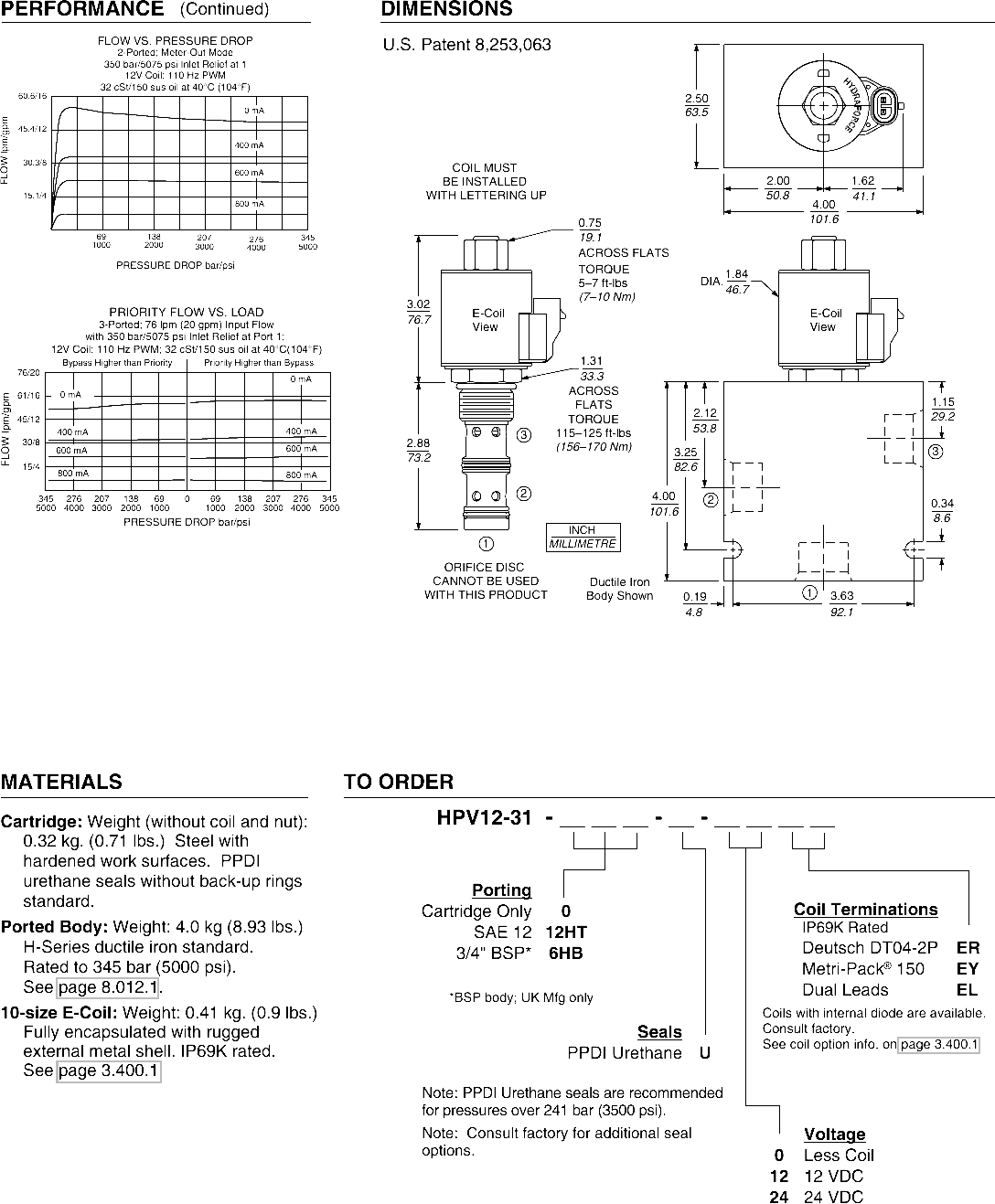

Hysteresis: ±1.9 lpm (0.50 gpm) maximum
Dither/PWM Frequency Range: 100 to 250 Hz
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1.
Cavity: HVC12-3; See page 9.112.1
Cavity Tool: HCT10-3X-XX; See page 8.600.1
Seal Kit: HSK12-3X-0; See page 8.650.1 for seal kit options and appropriate seals based on application temperature range.
Coil Nut: Part No. 7004420213
