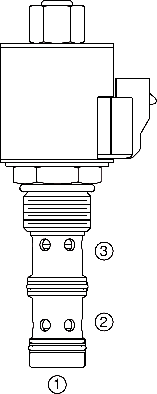

HPV12-30 HyPerformance™ Proportional Flow, (HPV12-30)
A high pressure, solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally closed when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compen-sated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.
Product Operation
The HPV12-30 will regulate flow out of port 3 regardless of system working pressure. With an increasing current applied to the solenoid, the HPV12-30 will increase output flow.
Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult factory.
Product Features
• Excellent linearity and hysteresis.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Efficient wet armature construction.
• Cartridges voltage-interchangeable.
• Unitized, molded coil design.
• Coil waterproofing standard.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.
Product Ratings
Operating Pressure: 350 bar (5075 psi); 10% life cycle 420 bar (6090 psi) Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K cycles at 420 bar.
Proof Pressure: 690 bar (10,000 psi)
Burst Pressure: 1380 bar (20,000 psi)
Regulated Flow Rate: 76 lpm (20 gpm) nominal input; 114 lpm (30 gpm) maximum input; priority type 66 lpm (17.5 gpm) maximum; restrictive type 60 lpm (16 gpm) maximum.
Max. Internal Leakage: 380 ml/min. (0.10 gpm) at port 3 at 0 current with 350 bar(5075 psi) at port 1 (port 2 blocked)
Temperature: -54°C – 107°C (-65°F – 225°F) with PPDI Urethane seals
Hysteresis: ±1.9 lpm (0.50 gpm) maximum
Dither/PWM Frequency Range: 100 to 250 Hz
Electrical Parameters (with size 10 E-series coil):
Coil
Voltage12 VDC24 VDC
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1.
Cavity: HVC12-3; See page 9.112.1
Cavity Tool: HCT10-3X-XX; See page 8.600.1
Seal Kit: HSK12-3X-0; See page 8.650.1 for seal kit options and appropriate seals based on application temperature range.
Coil Nut: Part No. 7004420213

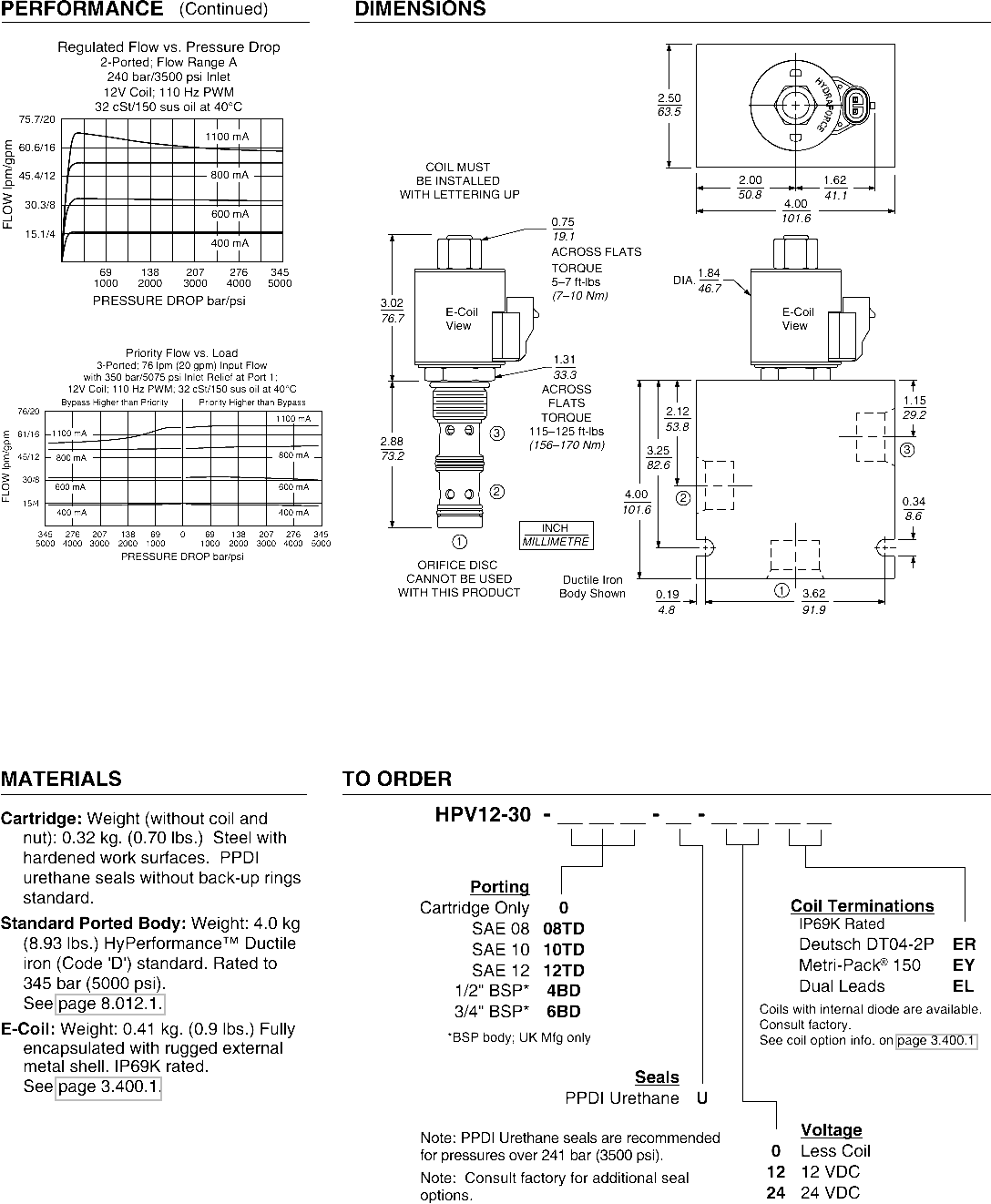

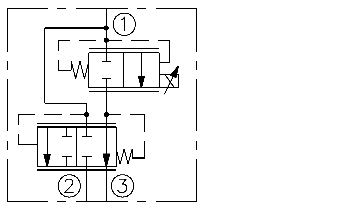

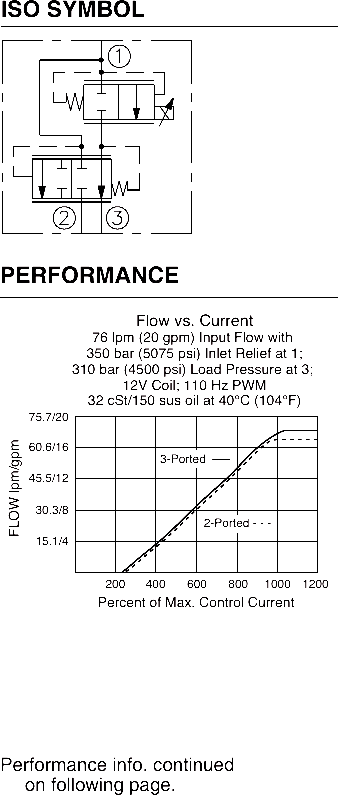

ISO SYMBOL
2.371.1
