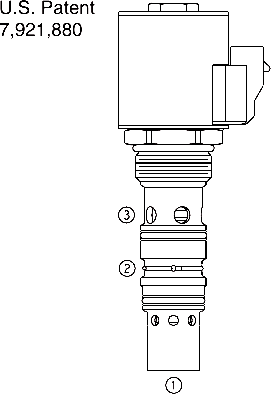

SPCL16-30 Poppet, 3-Port, Normally Closed (SPCL16-30)

A solenoid-operated, 3-port, normally-closed, proportional, poppet-type, screw-in hydraulic cartridge valve for low-leakage blocking and load-holding applications.

Product Operation

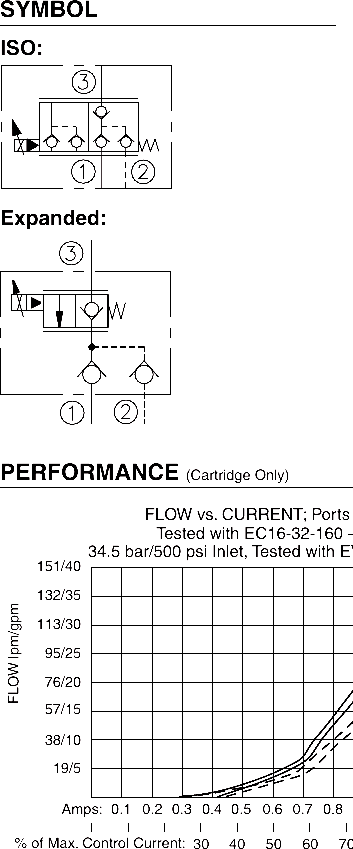

When the SPCL16-30 is energized, the poppet lifts to allow flow from port 3 to ports 1 and 2. Flow at port 2 is typical for load sensing applications and includes a check valve for isolation.

Product Features

 Industry-common cavity.
 Efficient wet-armature construction.
 Continuous-duty rated coils.
 Optional waterproof E-Coils rated up to IP69K.
 Reduce manifold space claim.

Product Ratings

Operating Pressure: Maximum: 250 bar (3625 psi); Minimum: 2.4 bar (35 psi)

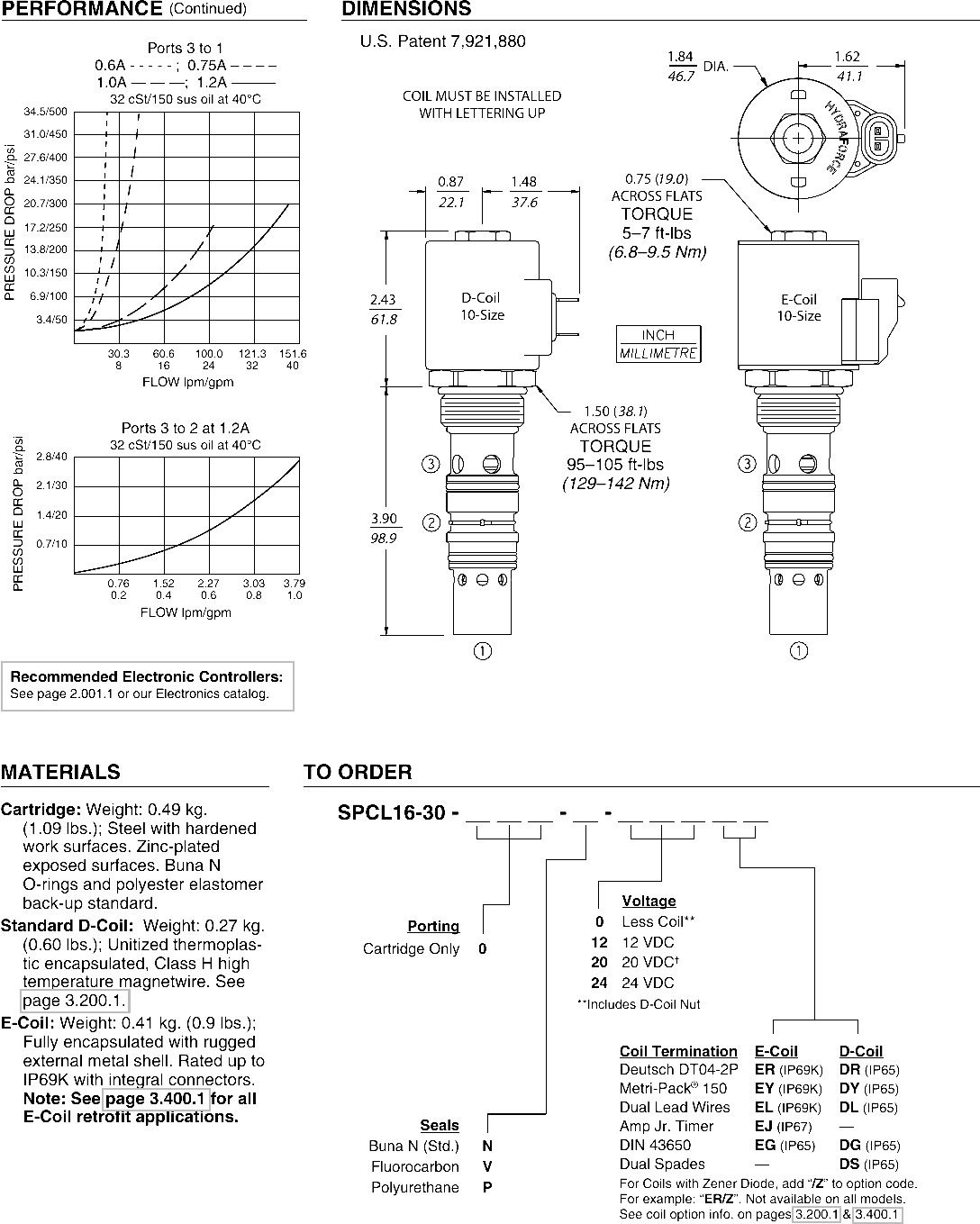

Flow Rating: up to 152 lpm (40 gpm); see performance charts
Internal Leakage: Ports 1 and 3: 5 drops/minute max. at 250 bar (3625 psi)Port 2: 15 drops/minute max. at 250 bar (3625 psi)
Operating Temperature: -40° to 100°C (-40° to 212° F) with standard Buna N seals;-26° to 204°C (-15° to 400°F) with Fluorocarbon seals;-54°C to 104°C (-65°F to 225°F) with Polyurethane seals
Valve Inductance: 173.3 mH at 1.2A (Max. Control Current)
Threshold Current: 0.40A to 0.60A
Hysteresis: Less than 10% of maximum flow at 1.2A (Max. Control Current)
Dither Frequency: 100 Hz recommended
Installation: No restrictions; See page 9.020.1;
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Cavity: VC16-3SPCL; See page 9.116.1
Cavity Tool: CT16-3SPCL; See page 8.600.1
Seal Kit: SK16-3X-MM; See page 8.650.1
Coil Nut: Part No. 7004400
