EV10-S34 Vented Spool-Type Logic Element (EV10-S34)
A spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
Product Operation

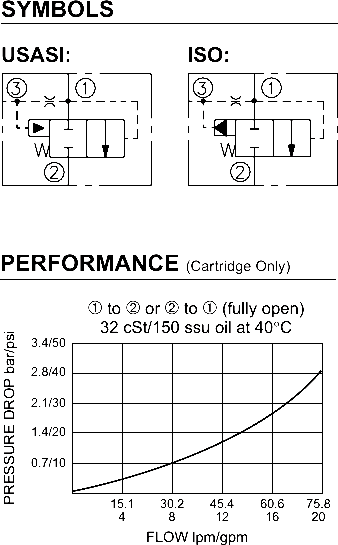

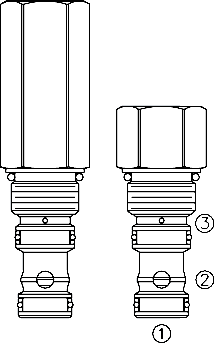

The EV10-S34 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when ➂ is vented to create a pressure drop across the internal orifice which exceeds the pressure value of the selected bias spring force.
EV10-S34 is a vent-to-open directional valve.
Product Features
• Multiple function/application potential.
• Smooth shift transition.
• Low pressure drop.
• Industry common cavity.

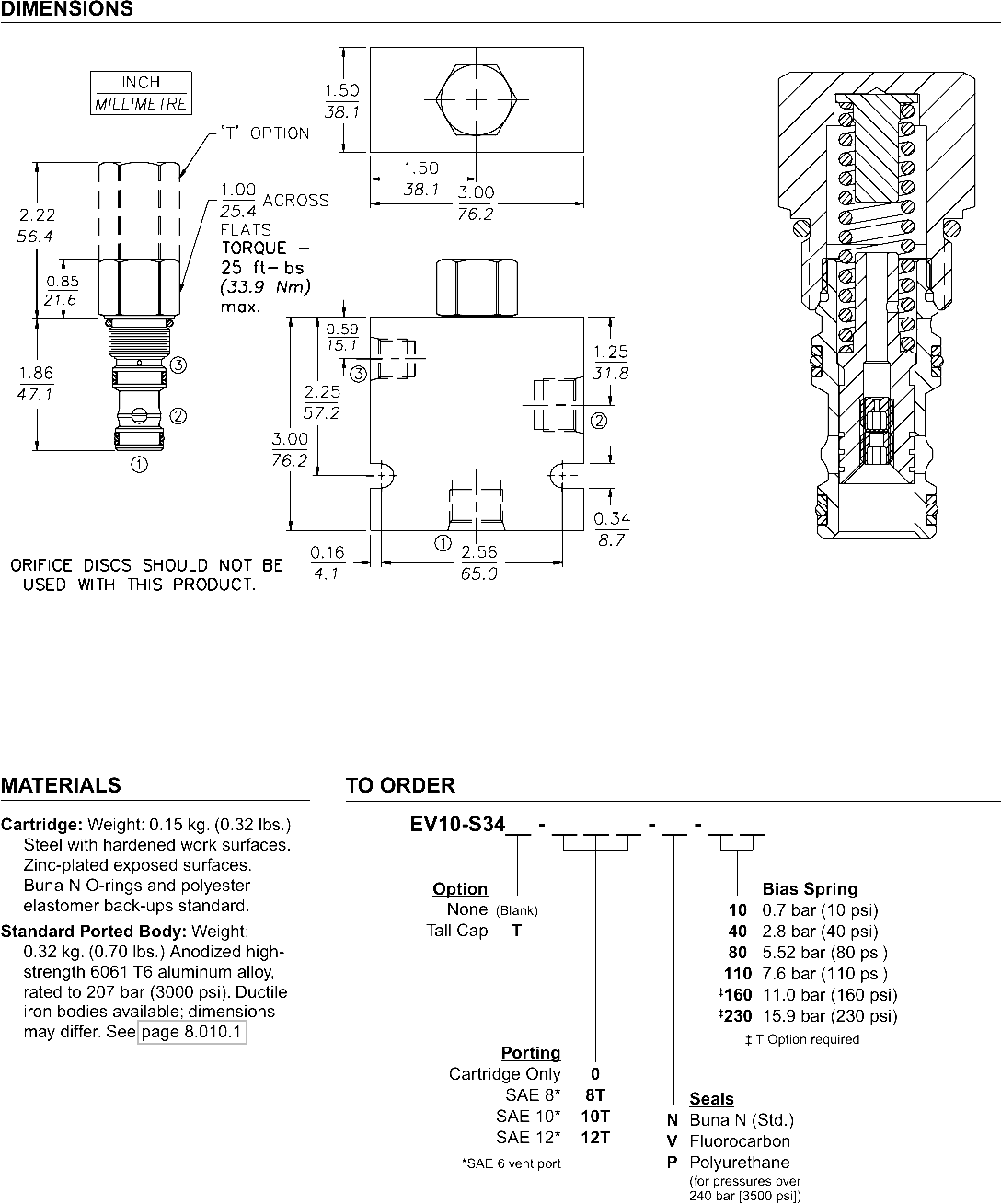

Product Ratings
Operating Pressure: 345 bar (5000 psi) cartridge; 240 bar (3500 psi) standard aluminum housing
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Bias Spring Pressure Options: 0.7 bar (10 psi); 2.8 bar (40 psi); 5.5 bar (80 psi); 7.6 bar (110 psi);11.0 bar (160 psi);Note: Tall cap option required for 11.0 bar (160 psi) spring.
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-S3; See page 9.110.1
Cavity Tool: CT10-S3xx; See page 8.600.1
Seal Kit: SK10-S3x-MM; See page 8.650.1
