Vented, Spool-Type Logic Elements

EV16-S34 Vented Spool-Type Logic Element (EV16-S34)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EV16-S34 is a spring-biased blocking valve which will shift to allow full flow from 1 to 2 only when 3 is vented to create a pressure drop across the internal orifice which exceeds the pressure value of the selected bias spring force.
EV16-S34 is a vent-to-open directional valve. It requires a tall cap when specified with bias springs from 6,2 to 16,5 bar (90 to 240 psi). The 240 psi spring requires an extra tall cap.NOTE: Orifice discs should not be used with this valve.
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Smooth shift transition.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 100°C (-40 to 212° F) with standard Buna seals; -26 to 204°C (-15 to 400° F) with Fluorocarbon seals; -54 to 104°C (-65 to 225° F) with Polyurethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S3; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

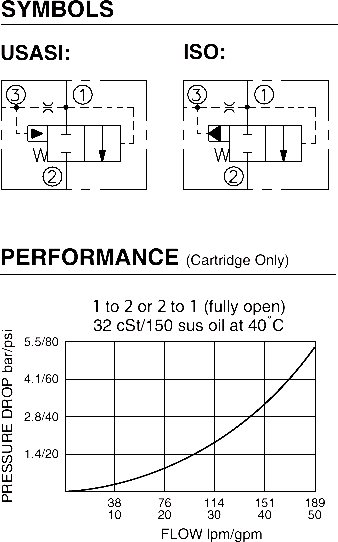

4-522-1-symbols

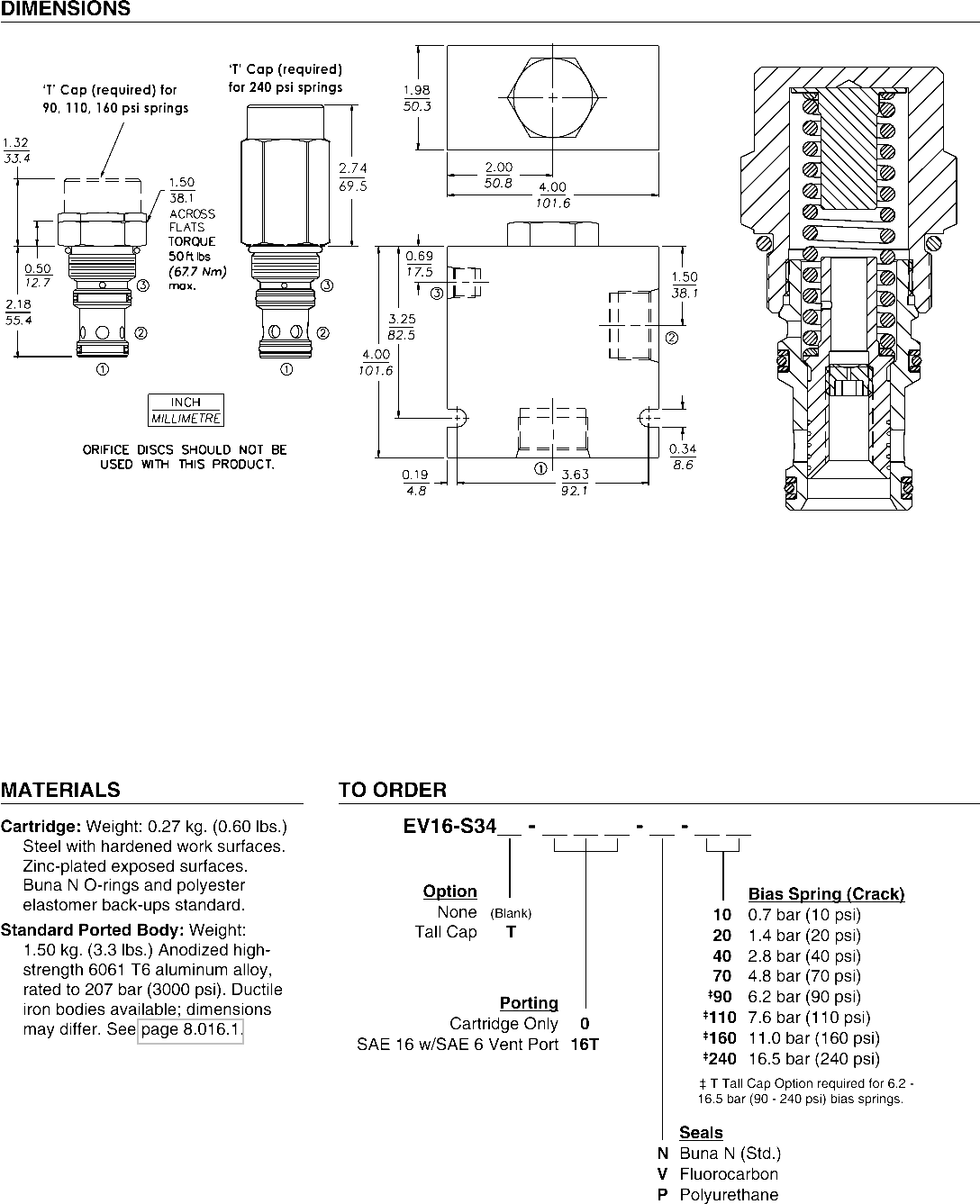

4-522-1-image-dimensions

4-522-1-main-image

4-522-1-symbols-graphs-image

A spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
