HEP42-S35 HyPerformance (HEP42-S35)

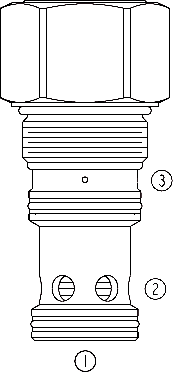

A high-pressure spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
Product Operation

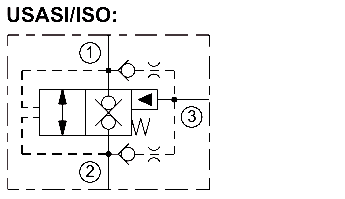

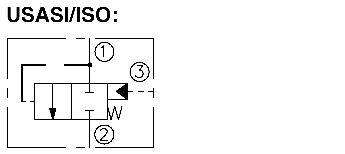

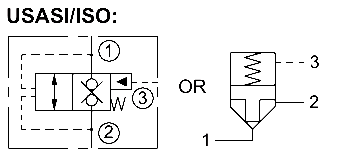

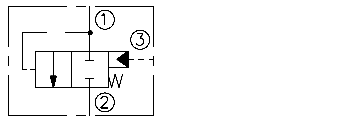

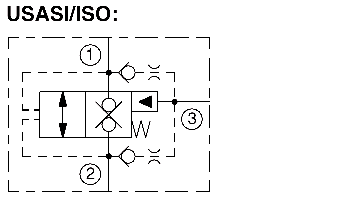

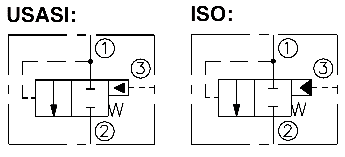

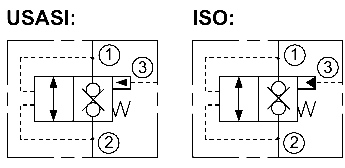

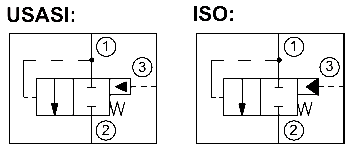

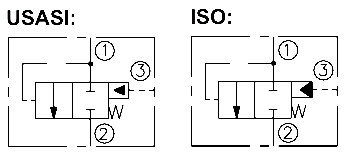

The HEP42-S35 is a spring-biased blocking valve which will shift to allow full flow from 1 to 2 only when pressure at 1 exceeds the cumulative pressure of 3, plus the bias spring pressure value.
HEP42-S35 is a pilot-to-close directional valve.
With no pressure at 3, flow will be allowed from 1 to 2 once the bias spring force is overcome with pressure at 1.
Product Features
•
Multiple function/application potential.• Low pressure drop.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
Product Ratings
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: 2 million cycles at 420 bar
Burst Pressure: 1380 bar (20000 psi)
Flow: 379 lpm (100 gpm)
Internal Leakage: 164 ml/minute (10 cu. in./minute) max. at 350 bar (5075 psi)
Operating Temperature: -40 to 100°C (-40 to 212°F) with Buna N seals -26 to 204°C (-15 to 400°F) with Fluorocarbon seals -54 to 107°C (-65 to 225°F) with Urethane seals
Ambient Temperature: -40 to 90°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

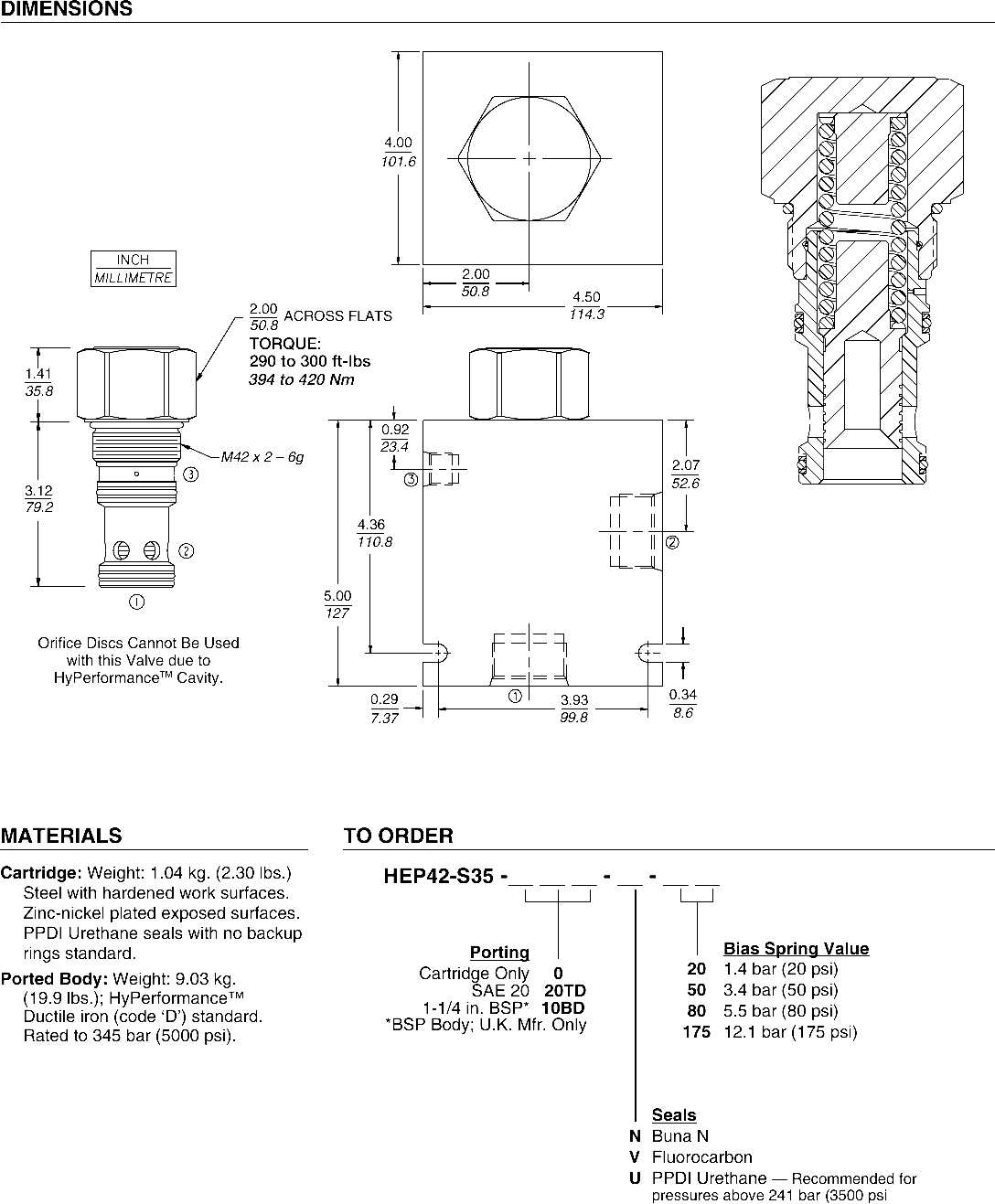

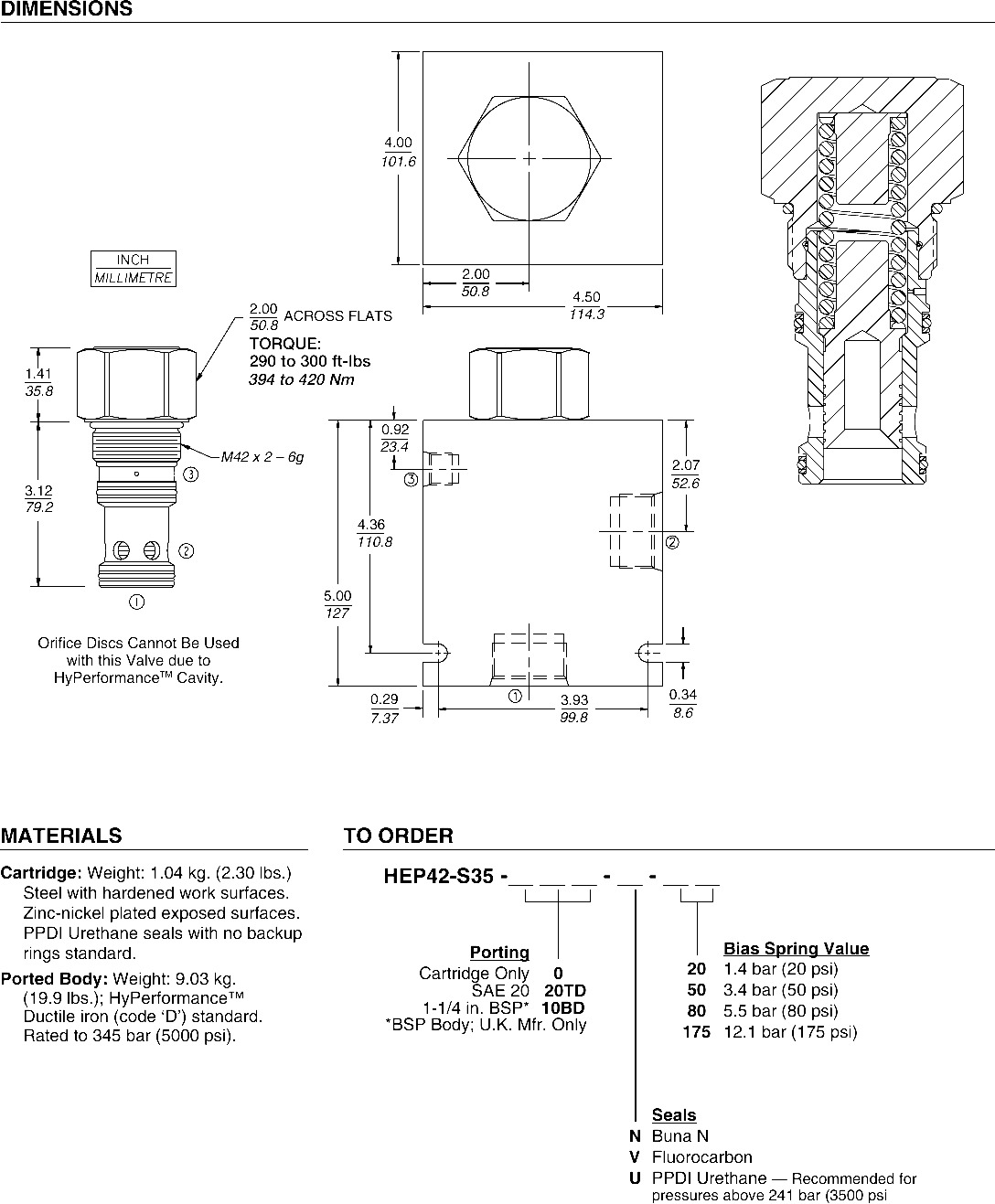

Cavity: HVC42-S3; See page 9.142.1
Cavity Tool: HCT42-S3XX; See page 8.600.1
Seal Kit: SK42-S3X-X; See page 8.650.1

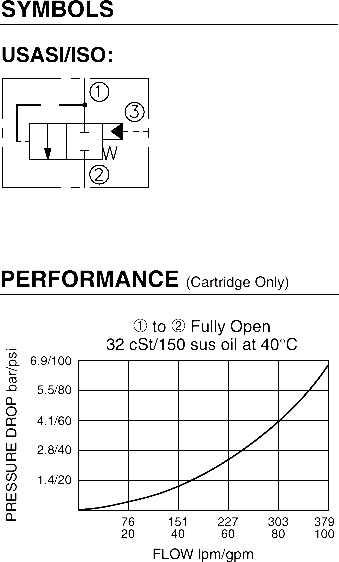

HYDRAFORCE.com®6.9/1005.5/8076201514022760FLOW lpm/gpmPRESSURE DROP bar/psi30380379100➀ to ➁ Fully Open32 cSt/150 sus oil at 40°C2.8/404.1/601.4/20
