Piloted Logic Elements

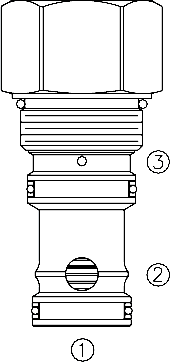

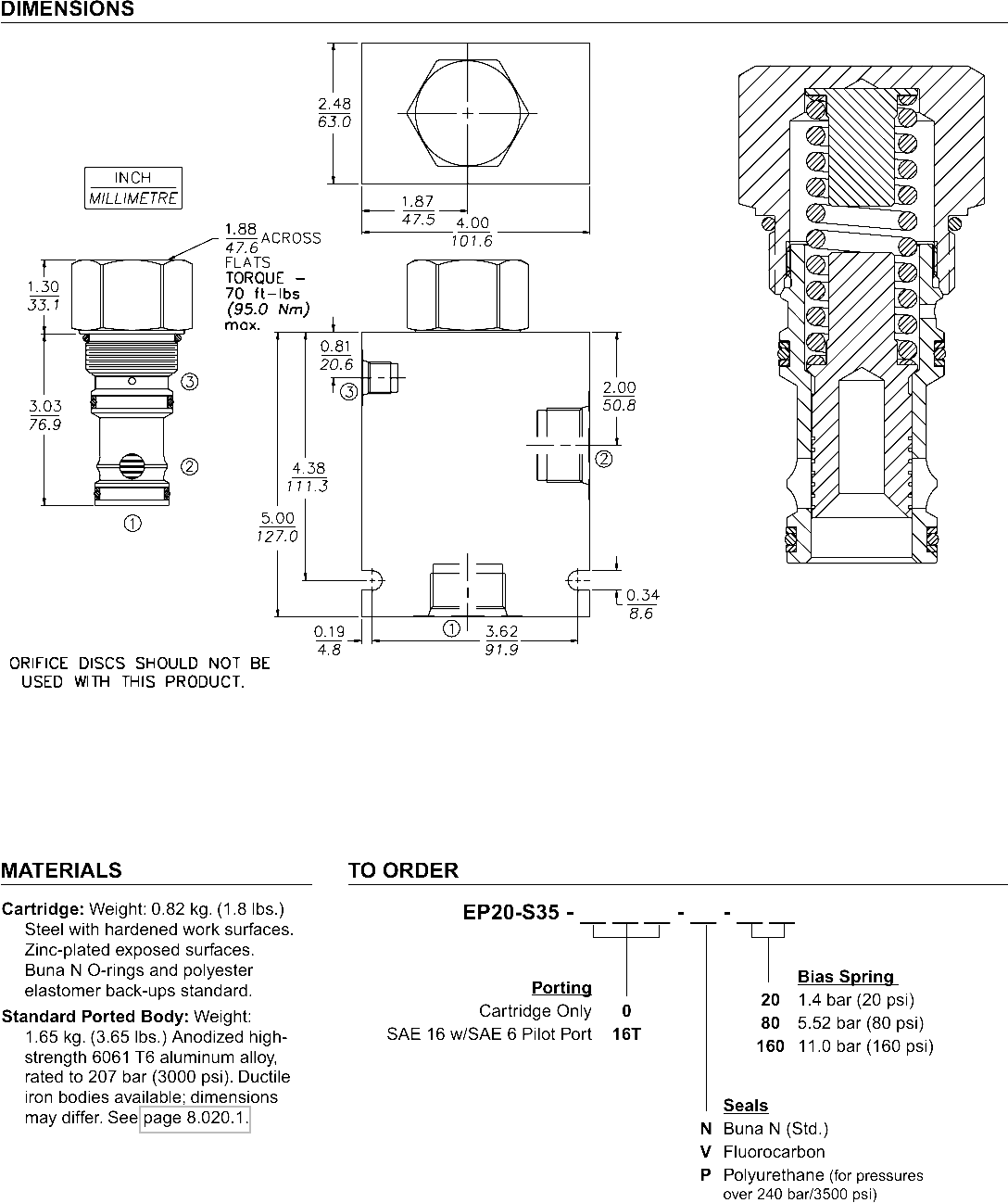

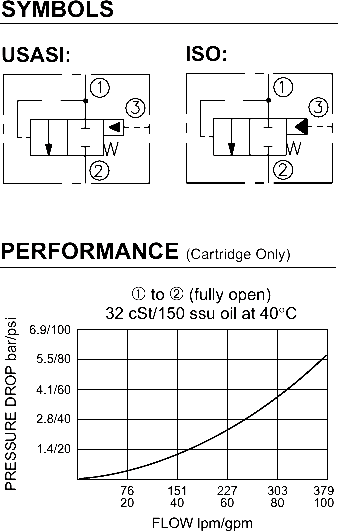

EP20-S35 Piloted Spool-Type Logic Element (EP20-S35)

<div>
<h3>Product Operation</h3>
The EP20-S35 is a spring-biased blocking valve which will shift to allow full flow from ➀ to ➁ only when pressure at ➀ exceeds the cumulative pressure of ➂, plus the bias spring pressure value.
EP20-S35 is a pilot-to-close directional valve.
With no pressure at ➂, flow will be allowed from ➀ to ➁ once the bias spring force is overcome with pressure at ➀
</div>
<div>
<h3>Product Features</h3>
• Multiple function/application potential.
• Low pressure drop.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Cartridge Only: Ports ➀ &amp; ➁: 345 bar (5000 psi); Port ➂: 320 bar (4600 psi); Polyurethane seals are recommended for operation over 240 bar (3500 psi). Aluminum bodies are rated for 207 bar (3000 psi).
Flow: See Performance Chart
Internal Leakage: 1 cc/minute (1 cu. in./minute) max. at 345 bar (5000 psi)
Bias Spring Pressure Options: 5.5 bar (80 psi); 11.0 bar (160 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC20-S3; See page <a title="9.120.1" href="https://www.savery.co.uk/products/view/9-120-1">9.120.1</a>
Cavity Tool: CT20-S3xx; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK20-S3x-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-503-1-symbols

4-503-1-image-dimensions

4-503-1-main-image

4-503-1-symbols-graphs-image

A spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.

24.03.28_BAR_Savery_2577
