PD16-S50 Piloted 3-Way Spool (PD16-S50)

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve.

Product Operation

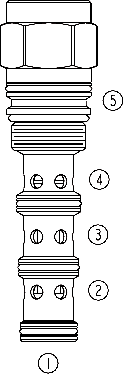

When in neutral the PD16-S50 allows flow between ports 3 and 2 while blocking at 4. On remote pilot signal at 1, the valve’s spool shifts to allow flow between 3 and 4, while blocking at 5. The spring chamber is vented to the tank through port 5. The vented spring chamber allows the valve to be fully pressurized at ports 1, 2, 3, and 4 without affecting required pilot pressure. Pressure at port 5 will affect required pilot pressure.

Product Features

• Hardened spool and cage for long life.
 50, 70, 100 and 150 psi bias springs available.

Product Ratings

Operating Pressure: 240 bar (3500 psi)

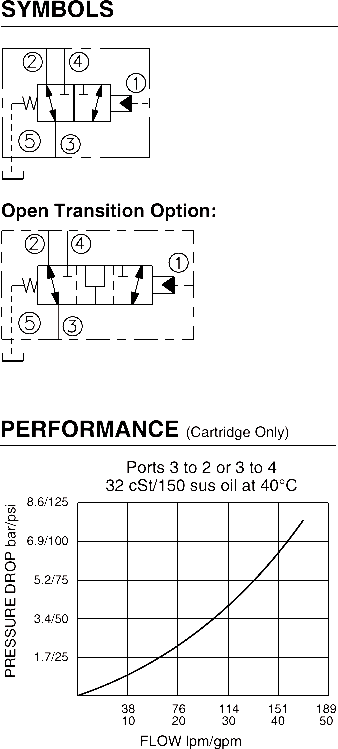

Flow: 0–170 lpm (0–45 gpm); See Performance Chart
Internal Leakage at 207 bar (3000 psi): 245 ml/minute (15 cu. in./minute);Zero leakage from port 1 to port 2 with sealed spool.
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1

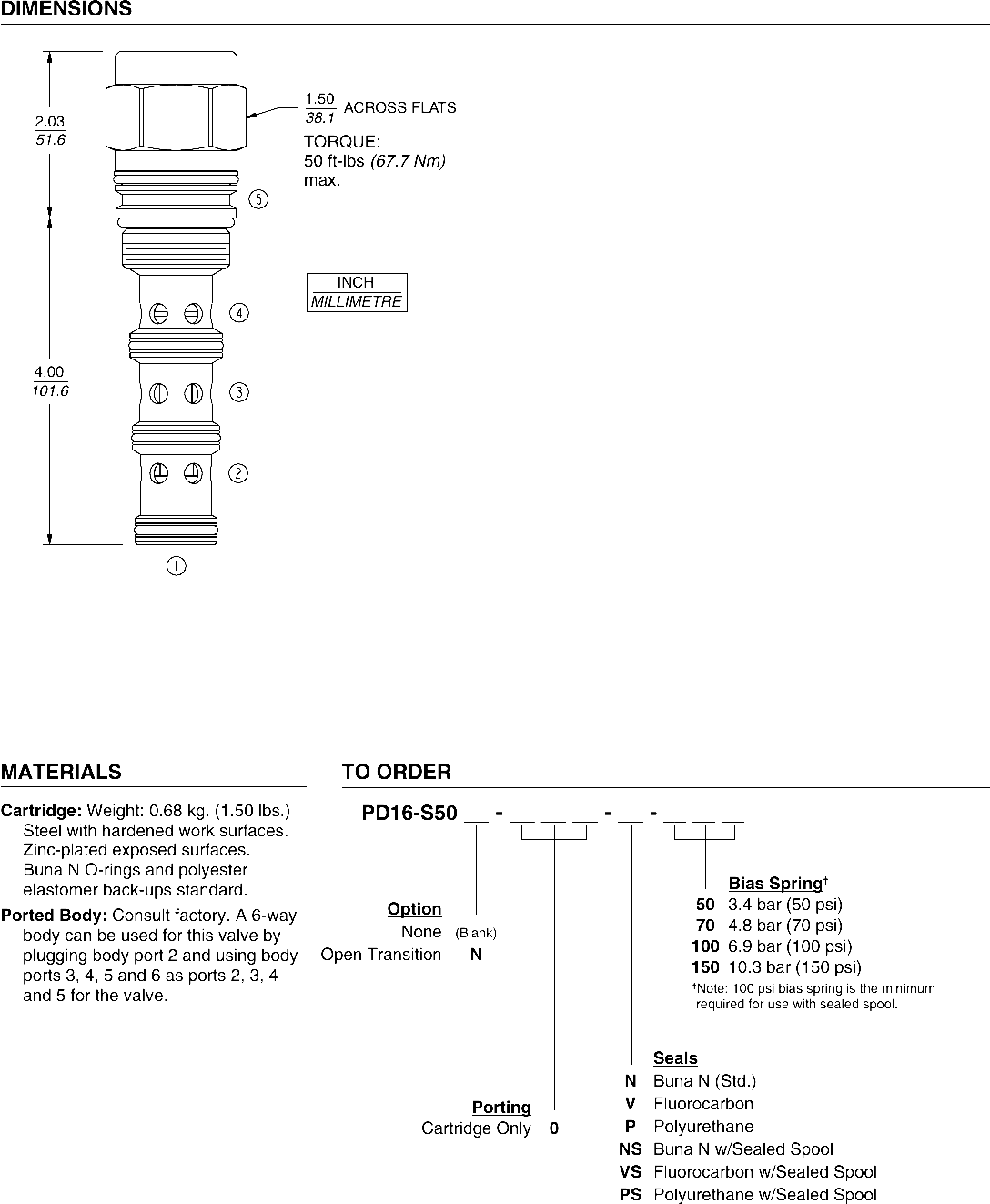

Installation: No restrictions; See page 9.020.1 A 6-way body can be used for this valve by plugging body port 2 and using body ports 3, 4, 5 and 6 as ports 2, 3, 4 and 5 for the valve.
Cavity: VC16-S5; See page 9.116.1
Cavity Tool: CT16-S5XX; See page 8.600.1
Seal Kit: SK16-S5X-BMMM; See page 8.650.1
