HPD42-M44 HyPerformance (HPD42-M44)

A high performance, screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for two-way circuits requiring remote pilot actuation and vented spring chamber.

Product Operation

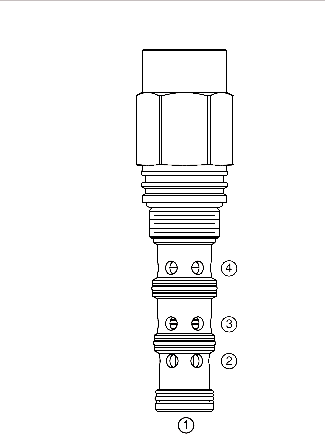

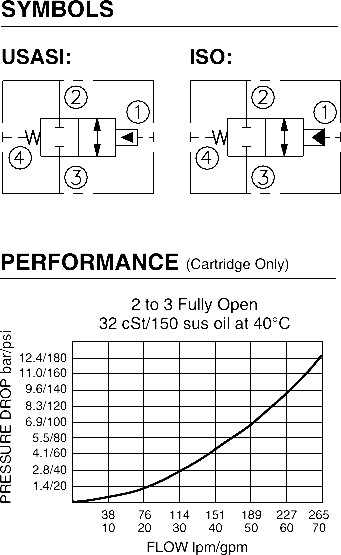

In neutral (unpiloted), the HPD42-M44 blocks flow from 2 to 3 and 3 to 2 on remote pilot signal at port 1. The valve’s spool shifts to allow flow from port 2 to 3 and port 3 to 2. The spring chamber is vented to port 4. Pressure at port 4 will directly (1:1) affect the pilot pressure required and must be added to the bias spring value.

Product Features

 Multiple function/application potential.
 Smooth shift transition.
 Low pressure drop.
 Hardened spool and cage for long life.
 Optional sealed pilot.
 Industry-standard ISO cavity.
 All HyPerformance products are tested to the rigorous standards of NFPA specification T2.6.1.
 All HyPerformance products are tested at a verification level of 90% and an assurance of 99%.

Product Ratings

Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar
Fatigue Rating: 2 million cycles at 420 bar
Burst Pressure: 1380 bar (20000 psi)
Flow: 265 lpm (70 gpm)
Internal Leakage: 310 ml/min (19 cu. in./minute) at 350 bar (5075 psi)
Pilot Pressure Required: To Spool Crossover: 10.3 bar (150 psi) with 150 psi bias spring
To Full Spool Shift:
17.9 bar (260 psi) with 150 psi bias spring
Oil Volume Required to Full Shift: 6.22 cc (0.38 cu. in.)
Temperature: -54°C to 107°C (-65°F to 225°F) with standard PPDI Urethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

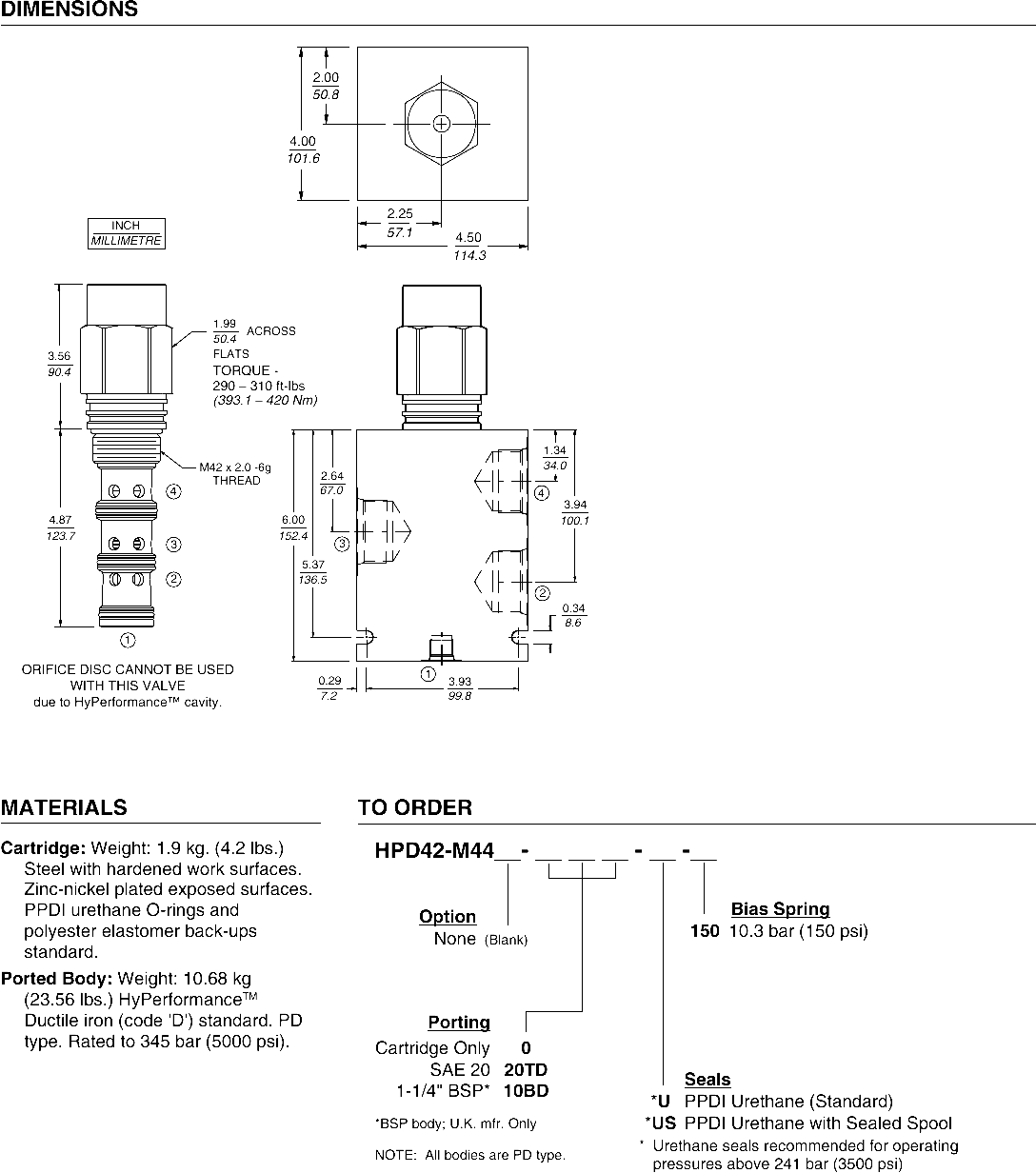

Cavity: HVC42-M4 See page 9.142.1
Cavity Tool: HCT42-M4XX See page 8.600.1
Seal Kit: SK42-M4U-000 (Urethane) See page 8.650.1
