PE42-S67H Proportional, Pilot Operated (PE42-S67H)

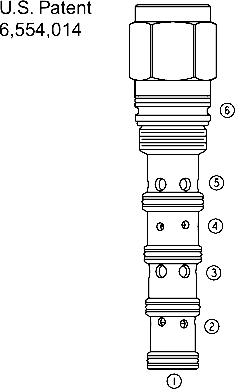

A screw-in, cartridge-style, proportional, spring-centered, pilot-operated spool-type hydraulic directional valve with neutral position bleed-to-tank.

Product Operation

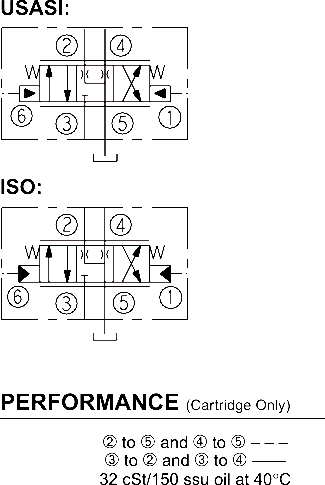

When the PE42-S67H is in neutral position port ➂ is blocked and ports ➁ and ➃ are connected to ➄. When the remote pilot signal at ➀ exceeds the force of the bias spring the spool shifts proportionally to the applied pilot pressure to allow flow from ➂ to ➃ through a load such as a hydraulic cylinder or motor, and then from ➁ to ➄, and to tank. When the pilot signal at ➅ exceeds the force of the bias spring the spool shifts proportionally to the applied force to allow flow from ➂ to ➁ and from ➃ to ➄. When the pilot signal is less than the force of the bias spring the spool will return to the
center position. The spool is symmetrical and provides meter-in and
meter-out control.

Product Features

• Hardened spool and cage for long life.
• Cost-effective cavity.
• Excellent metering characteristics.
 Good linearity.

Product Ratings

Maximum Operating Pressure: Port ➂: 345 bar (5000 psi) Ports ➁ and ➃: 240 bar (3500 psi) Ports ➀ and ➅: 27.6 bar (400 psi)
Orifi ce Diameter: Between ports ➁ and ➃ and port ➄ in neutral position: 0.030 in.

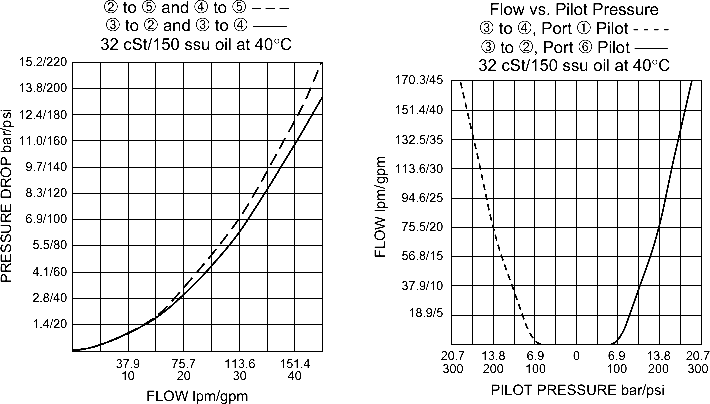

Flow: 0–170 lpm (0–45 gpm); See Performance Chart
Internal Leakage: 1180 ml/minute (72 cu. in./minute) at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna N seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

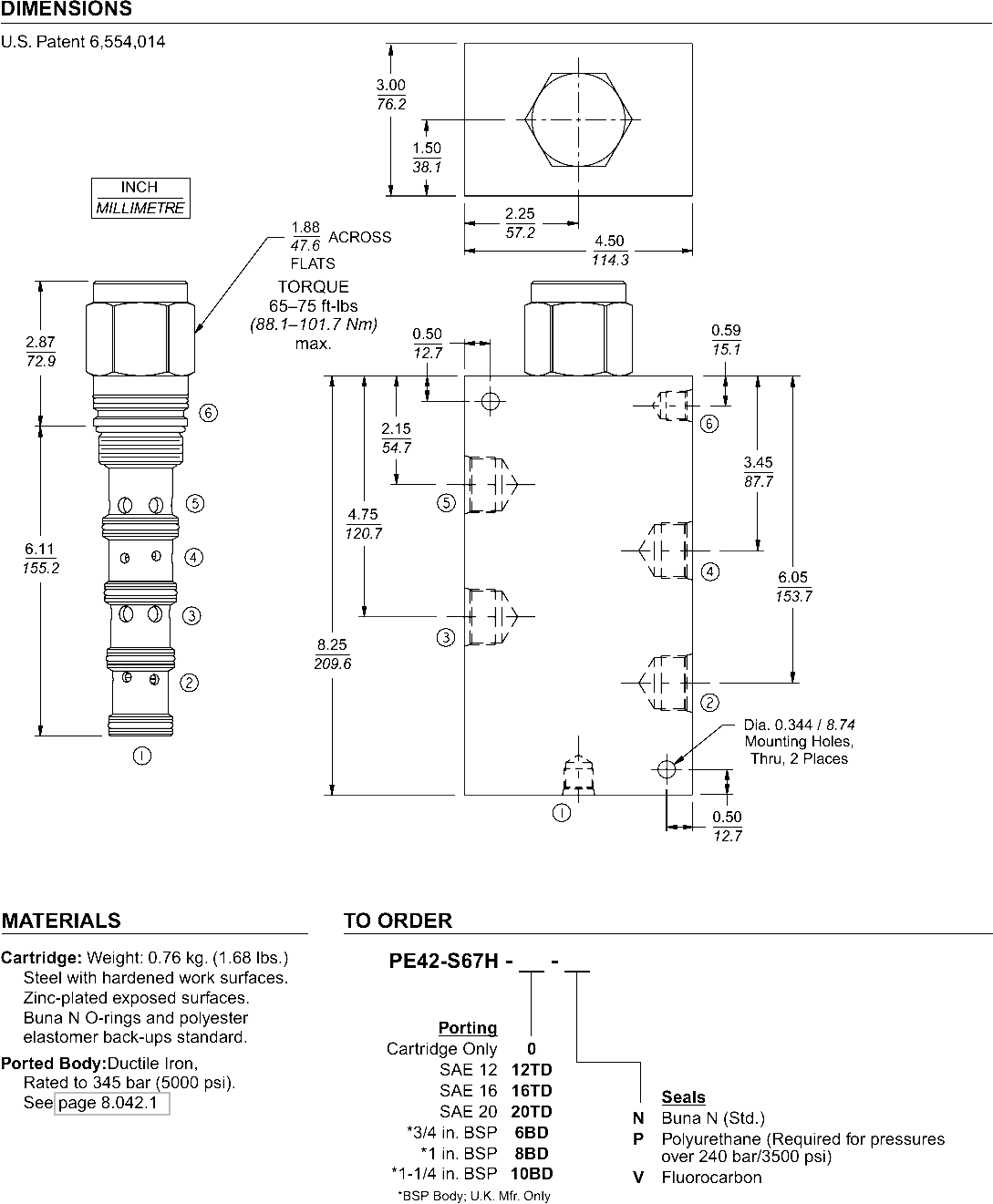

Cavity: VC42-S6; See page 9.142.1
Cavity Tool: CT42-S6; See page 8.600.1
Seal Kit: SK42-S6X-BMMMM; See page 8.650.1
