Pilot-Operated Check Valves, Lock Valves

DC08-40 Pilot Operated Check Valve (DC08-40)

<div>
<h3>Product Operation</h3>
The DC08-40 will block flow from 1 to 2, and from 4 to 3. Flow is allowed in the opposite direction when pressure is applied to port 2 and/or port 3.
The valve has a 3:1 pilot ratio, so at least 1/3 of the load pressure at port 1 or 4 is required at the pilot lines (ports 2 or 3) to open the flow passage to allow flow from ports 1 or 4.
The check is spring-biased at 25 psi to assure holding in a static or no load condition. An optional spring biased at 135 psi is available.
Note: Orifice disc cannot be used with this product.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Low pressure drop.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 240 bar (3500 psi)
Flow: Rated Inlet Flow: 19 lpm (5 gpm); see performance chart
Pilot Ratio: 3:1
Check Spring Bias: 1.7 bar (25 psi); Optional 9.3 bar (135 psi)
Leakage: 5 drops per minute (0.25 ml per minute) at 3000 psi
Temperature: –40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-4XX-X-X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

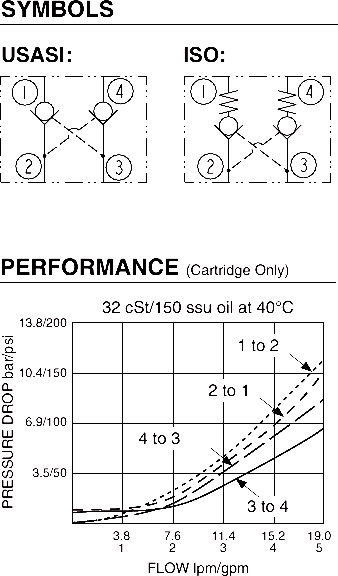

4-200-1-symbols

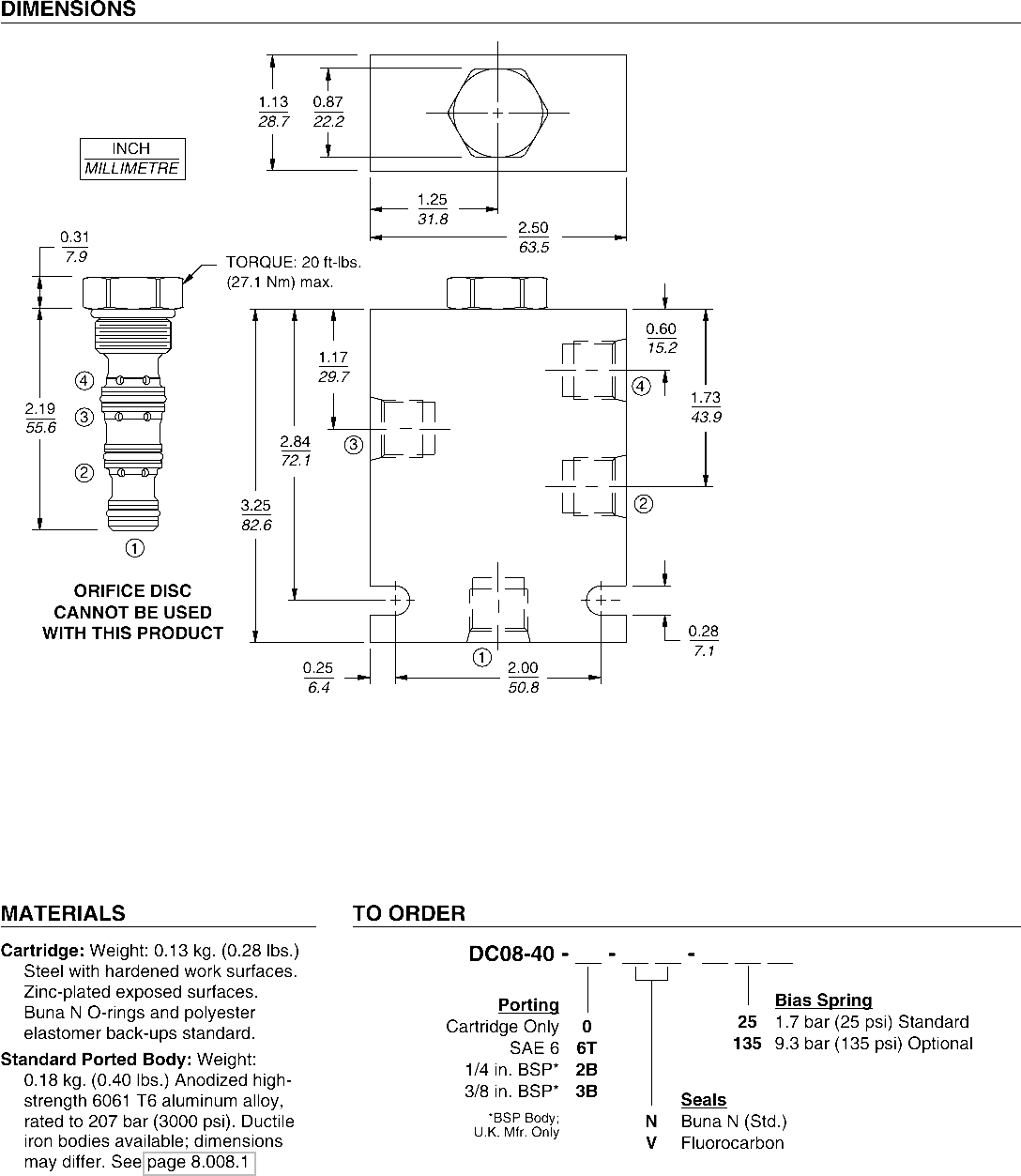

4-200-1-image-dimensions

4-200-1-symbols-graphs-image

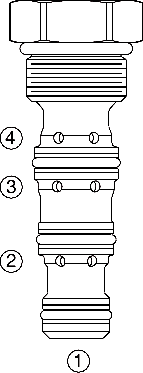

4-200-1-main-image

A dual pilot operated check valve for use in blocking or load-holding circuits.

24.03.28_BAR_Savery_2577
