PCV16 Check, Pilot-to-Open (PCV16)

An in-line-housed, pilot-operated, hydraulic check valve for use in blocking or load-holding circuits.

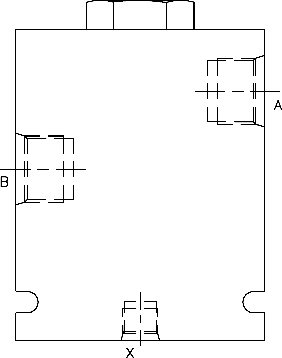

Product Operation

The PCV16 allows flow from B to A, while normally blocking flow from A to B. Flow will
be allowed from A to B when pressure is applied at X.
The check valve has a 3.8:1 pilot ratio, meaning that at least one-fourth of the load
pressure held at A is required at X to open the valve.
The check is spring-biased at 1.7 bar (25 psi) to assure holding in static or no-load
conditions. A sealed pilot piston option is available.

Product Features

• Hardened seat for long life and low leakage.
 Optional sealed pilot piston.• Optional spring ranges.
 Check section is serviceable as a cartridge.

Product Ratings

Operating Pressure: 240 bar (3500 psi)

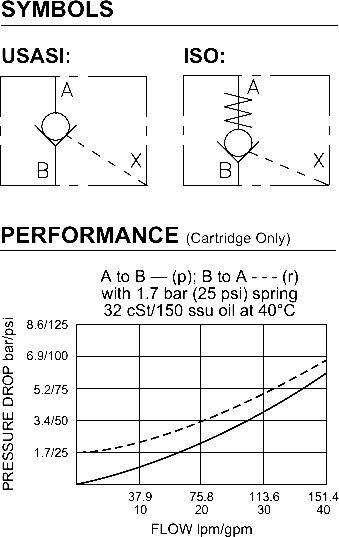

Flow: See Performance Chart
Internal Leakage: A to B: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi); B to X (without sealed piston): 245 cc/minute (15 cu. in./minute) max. at 240 bar (3500 psi)
Pilot Ratio: 3.8:1
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

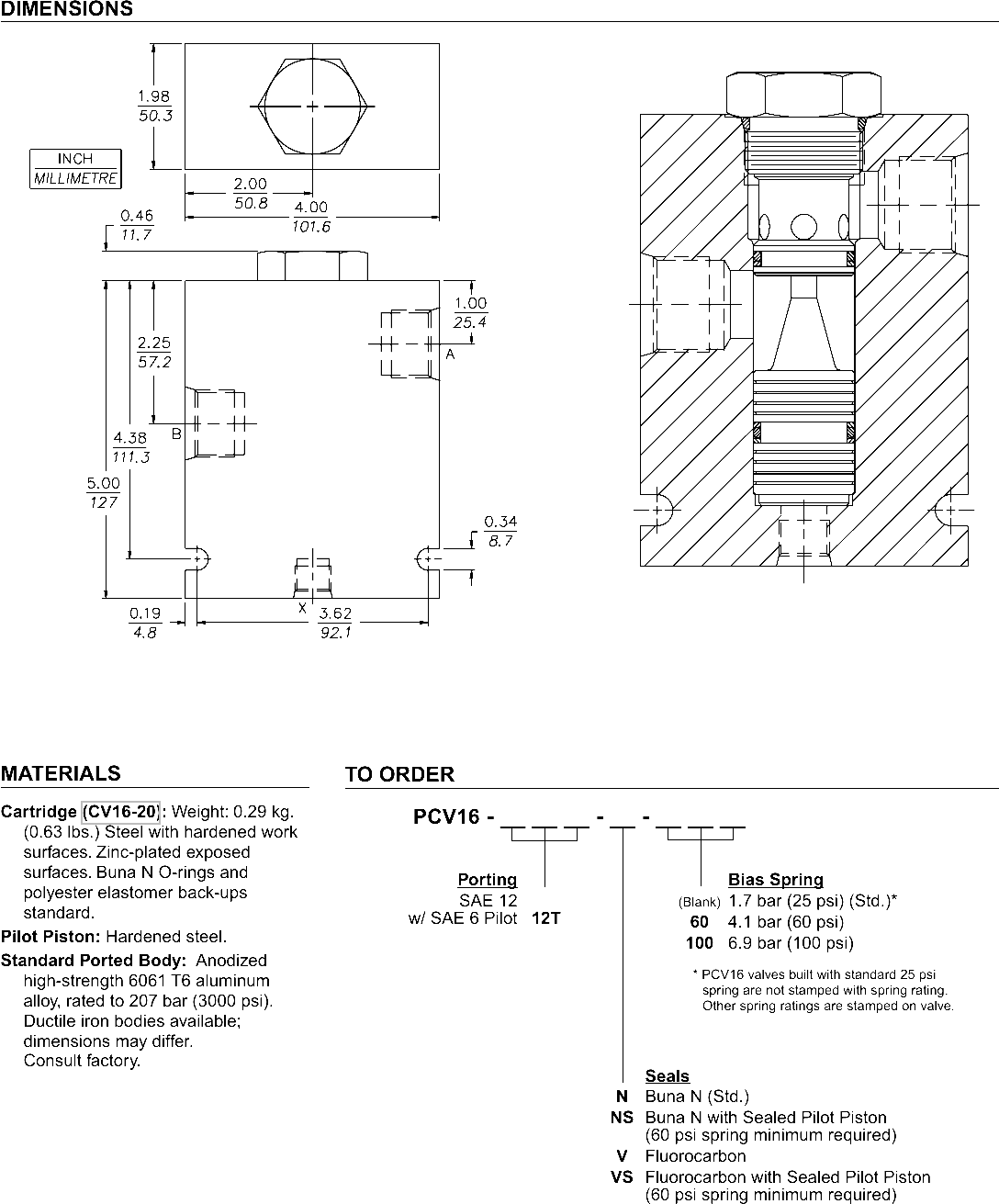

Seal Kit (for CV16-20):
SK16-2X-T; See page 8.650.1;
Piston Seals:
O-Ring (1)
Back-Ups (2) Buna 6001119 6010119 Fluorocarbon 6003119 6010119
