DC08-40 Pilot Operated Check Valve (DC08-40)

<div>
<h3>Product Operation</h3>
The DC08-40 will block flow from 1 to 2, and from 4 to 3. Flow is allowed in the opposite direction when pressure is applied to port 2 and/or port 3.
The valve has a 3:1 pilot ratio, so at least 1/3 of the load pressure at port 1 or 4 is required at the pilot lines (ports 2 or 3) to open the flow passage to allow flow from ports 1 or 4.
The check is spring-biased at 25 psi to assure holding in a static or no load condition. An optional spring biased at 135 psi is available.
Note: Orifice disc cannot be used with this product.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Low pressure drop.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 240 bar (3500 psi)
Flow: Rated Inlet Flow: 19 lpm (5 gpm); see performance chart
Pilot Ratio: 3:1
Check Spring Bias: 1.7 bar (25 psi); Optional 9.3 bar (135 psi)
Leakage: 5 drops per minute (0.25 ml per minute) at 3000 psi
Temperature: –40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-4XX-X-X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

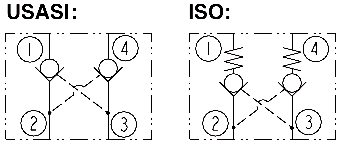

4-200-1-symbols

4-200-1-image-dimensions

4-200-1-symbols-graphs-image

4-200-1-main-image

A dual pilot operated check valve for use in blocking or load-holding circuits.

DC10-40 Pilot Operated Check Valve (DC10-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The DC10-40 will block flow from 1 to 2, and from 4 to 3. Flow is allowed in the opposite direction when pressure is applied to port 2 and/or port 3.
The valve has a 3:1 pilot ratio, so at least 1/3 of the load pressure at port 1 or 4 is required at the pilot lines (ports 2 or 3) to open the flow passage to allow flow from ports 1 or 4.
The check is spring-biased at 25 psi to assure holding in a static or no load condition.
Note: Orifice disc cannot be used with this product.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Low pressure drop.
• Optional thermal relief.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 240 bar (3500 psi)
Flow: Rated Inlet Flow: 30.3 lpm (8 gpm); See performance chart.
Pilot Ratio: 3:1
Check Spring Bias: 1.7 bar (25 psi)
Thermal Relief Crack Pressure Range: 310 to 386 bar (4500 to 5600 psi)
Thermal Relief Valve Leakage: 5 drops per minute (0.25 ml per minute) at up to 85% of crack pressure.
Maximum Check Valve Leakage: 5 drops per minute (0.25 ml per minute) at 240 bar (3500 psi).
Temperature: –40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX-X-X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-201-1-symbols

4-201-1-main-image

4-201-1-symbols-graphs-image

4-201-1-image-dimensions

A dual pilot operated check valve for use in blocking or load-holding circuits. This valve has an optional thermal relief from port 4 to port 3.

DCV08 Lock Valve (DCV08)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The DCV08 allows flow from V ports to C ports, while normally blocking flow in the opposite direction. Flow will be allowed from C to V when pressure is applied to the opposite side V port.
The valve has a 4:1 pilot ratio, so approximately one-fourth of the load pressure held at either C port is required at the opposite V port to open the flow passage.
The check is spring-biased at 1.7 bar (25 psi) to assure holding in static or no-load conditions. An optional sealed piston with check spring bias of 6.9 bar (100 psi) is available.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Check section serviceable as a cartridge.• Optional sealed piston.• Optional spring ranges.• Low pressure drop.
</div>
<div>
<h3>Product Ratings</h3>
Flow: See Performance Chart
Internal Leakage Cx to Vx: 0.25 cc/minute (5 drops/minute) max. at 207 bar (3000 psi) V1 to V2 (without sealed piston): 328 cc/minute (20 cu. in./minute) max. at 240 bar (3500 psi)
Pilot Ratio: 4:1
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Seal Kit (for CV08-2x): SK08-2x-T (2 required); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Pilot Piston Service Part Numbers: O-Ring (1) – Buna 6001012, Fluorocarbon 6003012 Back-up (2) – Buna 6011012, Fluorocarbon6011012
</div>
</div>
<div class="product-related"> </div>

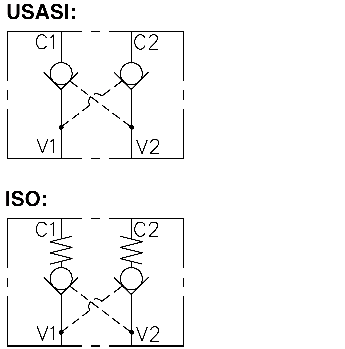

4-250-1-symbols

4-250-1-image-dimensions

4-250-1-main-image

4-250-1-symbols-graphs-image

An in-line-housed, double-pilot-operated, hydraulic check valve for use in blocking or load holding circuits.

DCV10 Lock Valve (DCV10)

<div>
<h3>Product Operation</h3>
The DCV10 allows flow from V ports to C ports, while normally blocking flow in the opposite direction. Flow will be allowed from C to V when pressure is applied to the opposite side V port.
The valve has a 4:1 pilot ratio, so at least one-fourth of the load pressure held at either C port is required at the opposite V port to open the flow passage.
The check is spring-biased at 2 bar (30 psi) to assure holding in static or no-load conditions. An optional sealed piston with check spring bias of 6.9 bar (100 psi) is available. Optional thermal reliefs are preset to 348 bar (5050 psi) as standard. NOTE: Thermal reliefs cannot be used with sealed pistons.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Check section serviceable as a cartridge.• Optional cartridge thermal relief(s).• Optional sealed piston. • Optional spring ranges.• Low pressure drop.
</div>
<div>
<h3>Product Ratings</h3>
Flow: up to 76 lpm (20 gpm)
Optional Thermal Relief Factory Setting: 348 ±38 bar (5050 ±550 psi)
Thermal Relief Reseat: 207 bar (3000 psi)
Internal Leakage: Cx to Vx: 0.25 cc/minute (5 drops/minute) maximum at 207 bar (3000 psi);
V1 to
V2: (without sealed piston): 328 cc/minute (20 cu. in./minute) maximum at 240 bar (3500 psi)
Pilot Ratio: 4:1
Check Spring Bias: 2 bar (30 psi); with sealed piston option, 6.9 bar (100 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Seal Kit (for CV10-2x): SK10-2x-T (2 required); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Pilot Piston Service Part Numbers: O-Ring (1) – Buna 6001014, Fluorocarbon 6003014 Back-up (2) – Buna 6011014, Fluorocarbon 6011014
ISO SYMBOL
<a title="4.251.1" href="https://www.savery.co.uk/products/view/4-251-1">4.251.1</a>
</div>

4-251-1-symbols

4-251-1-symbols-graphs-image

4-251-1-main-image

4-251-1-image-dimensions

An in-line-housed, double-pilot-operated, hydraulic check valve with optional thermal reliefs for use in blocking or load holding circuits.

DCV12 Lock Valve (DCV12)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The DCV12 allows flow from V ports to C ports, while normally blocking flow in the opposite direction. Flow will be allowed from C to V when pressure is applied to the opposite side V port.
The valve has a 4:1 pilot ratio, so at least one-fourth of the load pressure held at either C port is required at the opposite V port to open the flow passage.
The check is spring-biased at 1.7 bar (25 psi) to assure holding in static or no-load conditions. An optional sealed piston with check spring bias of 4.1 bar (60 psi) is available.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Check section serviceable as a cartridge.
• Optional cartridge thermal relief(s).
• Optional sealed piston.• Optional spring ranges.
• Low pressure drop.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 241 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage Cx to Vx: 0.25 cc/minute (5 drops/minute) max. at 207 bar (3000 psi); Vx to Vx (without sealed piston): 328 cc/minute (20 cu. in./minute) max. at 240 bar (3500 psi)
Pilot Ratio: 4:1
Check Spring Bias: 1.7 bar (25 psi); with sealed piston option, 4.1 bar (60 psi)
Optional Thermal Relief Factory Setting: 348 ± 38 bar (5050 ± 550 psi)
Thermal Relief Reseat: 207 bar (3000 psi) minimum.
Operating Temperature: -40°C to 120°C (-40°F to 248°F) with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Seal Kit (for CV12-2x): SK12-2x-T (2 required); See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Pilot Piston Service Part Numbers:
O-Ring (1) – Buna 6001115, Fluorocarbon 6003115 Back-up (2) – Fluorocarbon 6011115 (all)
</div>
</div>
<div class="product-related"> </div>

4-252-1-symbols

4-252-1-image-dimensions

4-252-1-main-image

4-252-1-symbols-graphs-image

HPC08-30 HyPerformance (HPC08-30)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The HPC08-30 allows flow from 2 to 3, while normally blocking flow from 3 to 2. Flow will be allowed from 3 to 2 when pressure at 1 exceeds one-third the pressure at 3.
The cartridge has a 3:1 pilot ratio, meaning that at least one-third of the load pressure held at 3 is required at 1 to open the valve.
The check is spring-biased to assure holding in static or no-load conditions. A sealed pilot piston option is available.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional sealed piston.• Optional spring ranges.• Compact size.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K at 420 bar.
Fatigue Rating: 2 million cycles at 420 bar
Proof Pressure: 690 bar (10000 psi)
Burst Pressure: 1380 bar (20000 psi)
Flow: 30.3 lpm (8 gpm)
Maximum Internal Leakage at 350 bar (5075 psi): 0.10 ml/minute (2 drops/minute)
Temperature: -40 to 100°C (-40 to 212°F) with standard Buna seals;-26 to 204°C (-15 to 400°F) with fluorocarbon seals;-54 to 107°C (-65 to 225°F) with urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: HCT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-TM for Buna N seals; SK08-3V-TM for viton seals; SK08-3U-00 for urethane seals; see page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>

4-100-3-symbols

4-100-3-image-dimensions

4-100-3-main-image

4-100-3-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, hydraulic check valve for use as a blocking or load-holding device for high pressure applications.

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The HPCV16 allows flow from B to A, while normally blocking flow from A to B. Flow will be allowed from A to B when pressure is applied at X.
This valve has a 2.3:1 pilot ratio, meaning that at least 44 percent of the load pres-sure held at A is required at X to open the valve.
The check is spring-biased at 1.7 bar (25 psi) or 4.1 bar (60 psi) to assure holding in static or no-load conditions. A sealed pilot piston option is available.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional sealed pilot piston.• Optional spring ranges.
• Check section is serviceable as a cartridge.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T<a title="2.6.1" href="https://www.savery.co.uk/products/view/2-6-1">2.6.1</a>.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)
Proof Pressure: 689 bar (10000 psi)
Burst Pressure: 379 bar (20000 psi)
Flow: 151 lpm (40 gpm)
Internal Leakage: A to B: 0.25 ml/minute (5 drops/minute) max. at 350 bar (5075 psi); B to X: 200 ml/minute (12.2 cu. in./minute) max. at 34.5 bar (500 psi); 1.5 lpm (0.4 gpm) at 350 bar (5075 psi)
Cycle Life: One million cycles
Pilot Ratio: 2.3:1
Temperature: -54 to 107°C (-65 to 225°F) with standard Urethane seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: HVC16-PVC; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Seal Kit (for HCV16-20): HSK16-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Piston Seals:
O-Ring (1) &#8211; Urethane 6005115
Back-Ups (2) &#8211; Urethane 6010115
</div>
</div>
<div class="product-related"> </div>

4-153-3-symbols

4-153-3-image-dimensions

4-153-3-main-image

4-153-3-symbols-graphs-image

An in-line-housed, pilot-operated, hydraulic check valve for use in high pressure blocking or load-holding circuits.

HPCV16 HyPerformance (HPCV16)

PC08-30 Check, Pilot-to-Open (PC08-30)

<div>
<h3>Product Operation</h3>
The PC08-30 allows flow from 2 to 3, while normally blocking flow from 3 to 2. Flow will be allowed from 3 to 2 when sufficient pressure is applied at 1.
The cartridge has a 3:1 pilot ratio, meaning that at least one-third of the load pressure held at 3 is required at 1 to open the valve.
The check is spring-biased to assure holding in static or no-load conditions. A sealed pilot piston option is available.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.• Optional sealed piston.• Optional spring ranges.• Compact size.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Maximum Internal Leakage at 207 bar (3000 psi): 3 to 2: 0.10 ml/minute (2 drops/minute) 2 to 1 without sealed piston: 115 ml/minute (7 cu. in./minute) 2 to 1 with sealed piston: zero leakage
Pilot Ratio: 3:1
Check Spring Bias: 1.72 bar (25 psi) standard; With sealed piston option: 6.2 bar (90 psi) minimum
Temperature: -40 to 100°C (-40 to 212°F) with standard Buna seals;-26 to 204°C (-15 to 400°F) with fluorocarbon seals;-54 to 107°C (-65 to 225°F) with polyurethane and urethane seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-3; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-3X-TM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-100-1-symbols

4-100-1-image-dimensions

4-100-1-symbols-graphs-image

4-100-1-main-image

A screw-in, cartridge-style, pilot-operated, hydraulic check valve for use in blocking or load-holding circuits.


PC10-30 Check, Pilot-to-Open (PC10-30)

<div>
<h3>Product Operation</h3>
The PC10-30 allows flow passage from 2 to 3, while normally blocking flow from 3 to 2. Flow will be allowed from 3 to 2 when pressure is applied at 1.
The cartridge has a 4:1 pilot ratio, meaning that at least one-fourth of the load pressure held at 3 is required at 1 to open the valve.
The check is spring-biased to assure holding in static or no-load conditions. A sealed pilot piston option is available.
Note: Special higher bias spring values available. Consult factory.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional sealed piston.• Optional spring ranges.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 241 bar (3500 psi)
Flow: See Performance Chart
Maximum Internal Leakage at 207 bar (3000 psi): 3 to 2: 0.10 ml/minute (2 drops/minute) 2 to 1 without sealed piston: 115 ml/minute (7 cu. in./minute) 2 to 1 with sealed piston: zero leakage
Pilot Ratio: 4:1
Check Bias Spring: 2.07 bar (30 psi); With sealed piston option: 6.2 bar (90 psi) minimum
Temperature: -40 to 120°C (-40 to 248°F) with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-TM (Buna N); SK10-3V-TM (Viton); SK10-3P-TM (Polyurethane)See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-101-1-symbols

4-101-1-image-dimensions

4-101-1-symbols-graphs-image

4-101-1-main-image

A screw-in, cartridge-style, pilot-operated, hydraulic check valve for use in blocking or load-holding circuits.

PC10-32 Check, Pilot-to-Open, 2:1 Pilot Ratio (PC10-32)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The PC10-32 allows flow passage from ➁ to ➂, while normally blocking flow from ➂ to ➁. Flow will be allowed from ➂ to ➁ when pressure is applied at ➀The cartridge has a 2:1 pilot ratio, meaning that at least one-half of the load pressure
held at ➂ is required at ➀ to open the valve.The check is spring-biased to assure holding in static or no-load conditions.
A sealed pilot piston option is available.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Optional sealed piston.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: ➂ to ➁: 0.25 cc/minute (5 drops/minute) max. at 240 bar (3500 psi) ➁ to ➀ (without sealed piston): 115 cc/minute (7 cu. in./minute) max. at 240 bar (3500 psi)
Pilot Ratio: 2:1
Check Bias Spring: 2.07 bar (30 psi); With sealed piston option: 6.9 bar (100 psi) minimum
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-TM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-109-1-symbols

4-109-1-image-dimensions

4-109-1-main-image

4-109-1-symbols-graphs-image

Default Confirmation

Enter consent agreement text here.  The Consent Field will store this agreement text with the form entry in order to track what the user has consented to.

Admin Notification

New Newsletter Submission

Newsletter

BFPA-Logo-White

ISO9001 LOGO_White

ISO14001 LOGO_White

Logo

moog_savery_test_solutions_logo_vertical

Contact us

With over 300 years of engineering experience, Savery designs and manufactures high-quality hydraulic systems tailored to your needs. If you're interested in this product, fill in our contact form, and our team will be in touch.

PCV16 Check, Pilot-to-Open (PCV16)

PCV10 Check, Pilot-to-Open (PCV10)

PC10-38 Check, Pilot-Operated with Integrated (PC10-38)

Directional Valves

Pilot-Operated Check Valves, Lock Valves

directional-valves

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce / Oil Control

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

HydraulicIntegratedCircuit(HIC) - ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Savery_11_comp

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

24.03.28_BAR_Savery_2719

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Pilot-Operated Check Valves, Lock Valves

DC08-40 Pilot Operated Check Valve (DC08-40)

DC10-40 Pilot Operated Check Valve (DC10-40)

DCV08 Lock Valve (DCV08)

DCV10 Lock Valve (DCV10)

DCV12 Lock Valve (DCV12)

HPC08-30 HyPerformance (HPC08-30)

HPCV16 HyPerformance (HPCV16)

PC08-30 Check, Pilot-to-Open (PC08-30)

PC10-30 Check, Pilot-to-Open (PC10-30)

PC10-32 Check, Pilot-to-Open, 2:1 Pilot Ratio (PC10-32)

Vented, Spool-Type Logic Elements

Pressure-Compensatig Logic Elements

Piloted, 4-Way Spool Valves, with Vented Spring

Piloted, 4-Way Spool Valves

Piloted, 3-Way Spool Valves, Vented

Piloted, 3-Way Spool Valves, Ported Vent

Piloted, 2-Way Spool Valves, Vented

Piloted, 2-Way Spool Valves, Ported Vent

Piloted Logic Elements

Pilot-Operated, Proportional Valves

Savery also offer

Bespoke Projects

Hydraforce / Oil Control

Hydraulic Control Systems

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

Hydraulic Power Unit

Small Hydraulic Power Packs
