A solenoid-operated, five-way, three-position, screw-in hydraulic cartridge valve with integral load-sense port.

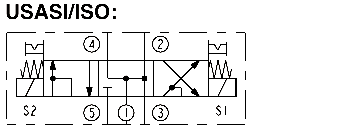

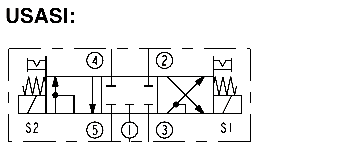

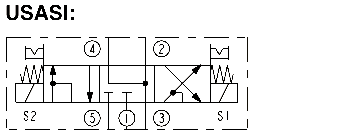

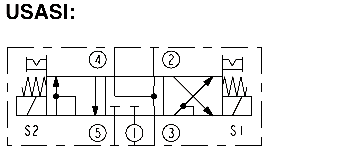

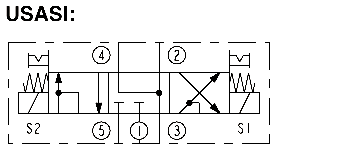

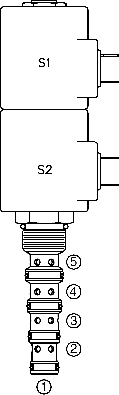

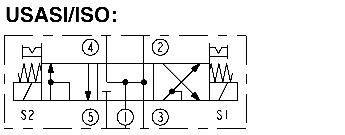

When de-energized, the SV10-57D blocks flow at 5 while allowing flow from both 2 and 4 to 3. When coil #1 is energized, flow is allowed from 5 to 2, and from 4 to 3. Whe coil #2 is energized, flow is allowed from 5 to 4 and from 2 to 3. Load sense is connected to port 5 when the spool is in shifted positions.
• Continuous-duty rated solenoid.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Optional waterproof E-Coils rated up to IP69K.
• Optional manual override.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
Operating Pressure: 247 bar (3625 psi) with standard Buna N seals

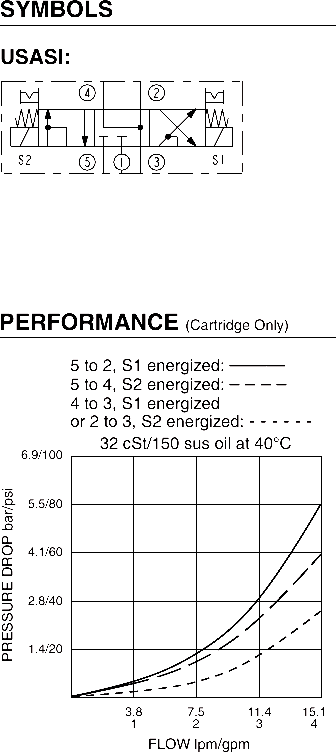

Flow: 20 lpm (4 gpm) max. See performance chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20° C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.6 amps at 12 VDC; 0.8 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

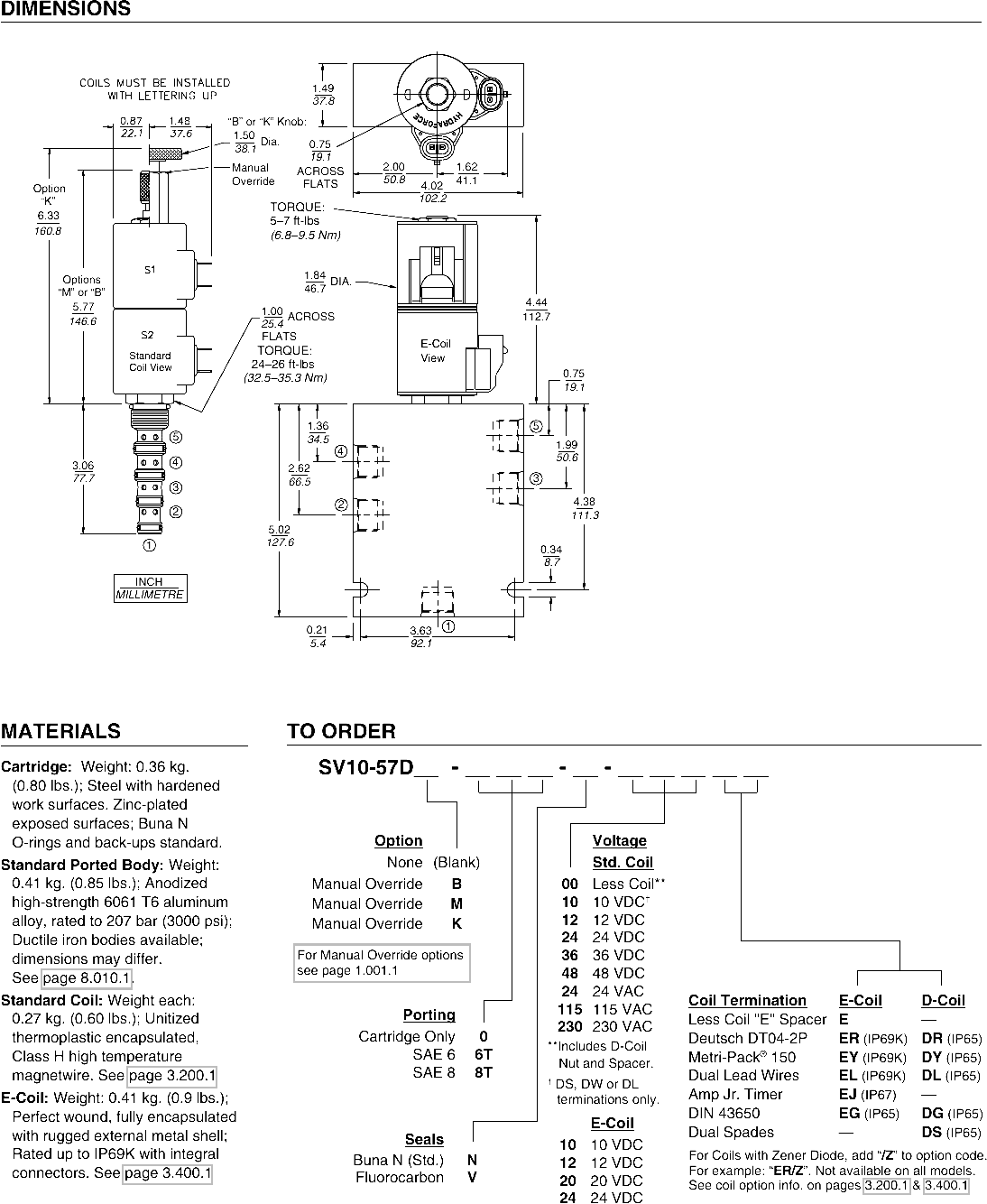

Cavity: VC10-5; See page 9.110.1
Cavity Tool: CT10-5XX; See page 8.600.1
Seal Kit: SK10-5X-MMMM; See page 8.650.1
Coil Nut: Part No. 7004400;
Coil Spacer: Std. D-Coil Spacer Part No. 7000280; E-Coil Spacer Part No. 4539700;If cartridge is ordered "Less Coil," D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
