SV10-58C Spool, 5-Way, 3-Position . . . (SV10-58C)

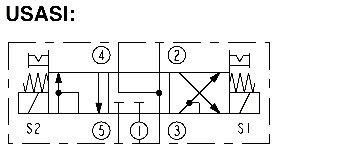

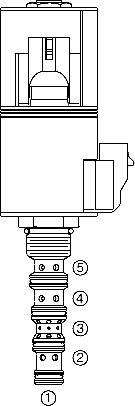

A solenoid-operated, five-way, three-position, direct acting, screw-in hydraulic cartridge valve with integral load-sense port. It has a closed center spool.

Product Operation

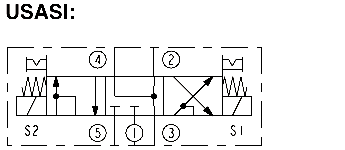

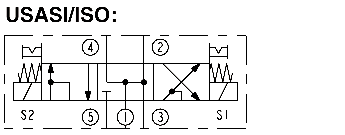

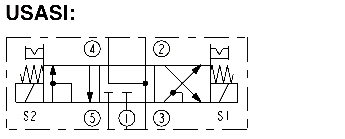

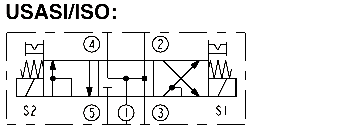

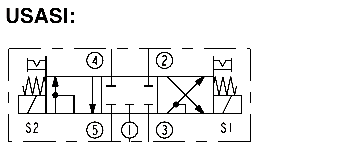

When de-energized, the SV10-58C blocks flow between all work ports and load sense at port 1 is vented to 3. When coil #1 is energized, flow is allowed from 5 to 2 and from 4 to 3. When coil #2 is energized, flow is allowed from 5 to 4 and from 2 to 3. Load sense at port 1 is connected to port 5 when spool is in the shifted positions.

Product Features

 Continuous-duty rated solenoid.
 Hardened precision spool and cage for long life.
 Optional coil voltages and terminations.
 Optional waterproof E-Coils rated up to IP69K.
 Optional manual override.
 Efficient wet-armature construction.
 Cartridges are voltage interchangeable.
 Unitized, molded coil design.

Product Ratings

Operating Pressure: 250 bar (3625 psi) with standard Buna N seals

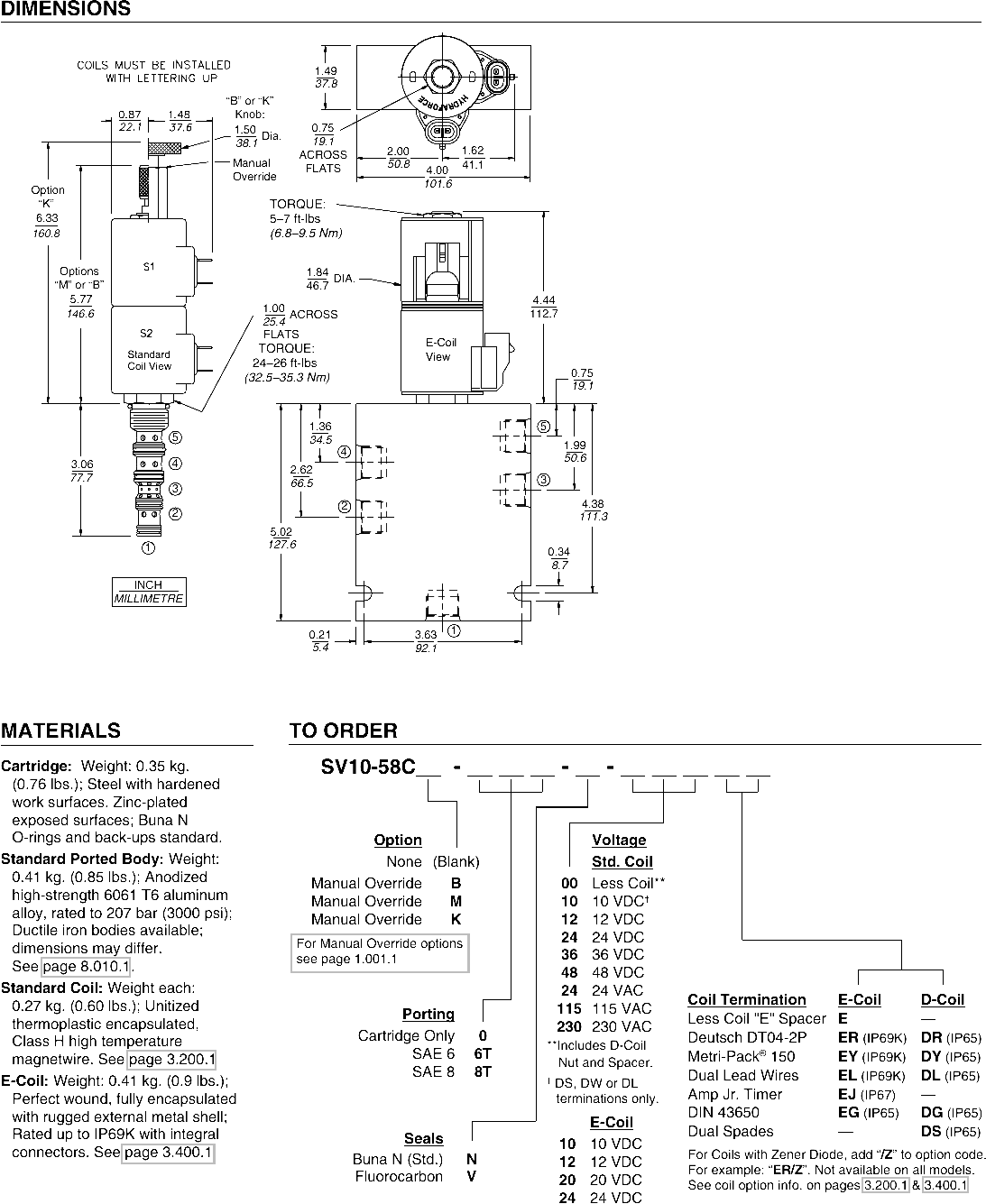

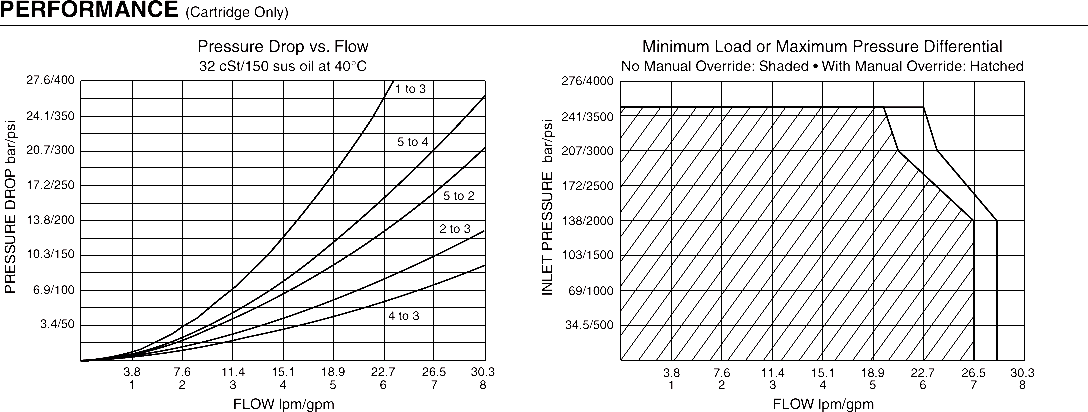

Flow: 30.3 lpm (8 gpm) maximum; see performance charts
Internal Leakage: 197 cc/minute (12 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20° C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.6 amps at 12 VDC; 0.8 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-5; See page 9.110.1
Cavity Tool: CT10-5XX; See page 8.600.1
Seal Kit: SK10-5X-MMMM; See page 8.650.1
Coil Nut: Part No. 7004400;
Coil Spacer: Std. D-Coil Spacer Part No. 7000280; E-Coil Spacer Part No. 4539700;If cartridge is ordered “Less Coil,” D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
