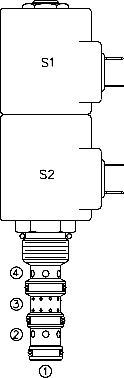

SV10-47F Spool, 4-Way, 3-Position, Tandem Center (SV10-47F)
A solenoid-operated, 4-way, 3-position, direct-acting, spool-type, tandem center, screw-in hydraulic cartridge valve.
Product Operation

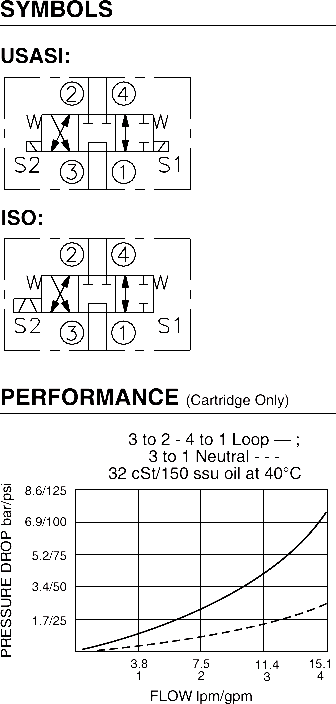

When de-energized, the SV10-47F blocks cylinder ports, while allowing flow from 3 to 1. When coil #1 is energized, flow is allowed from 3 to 2, and from 4 to 1. When coil #2 is energized, flow is allowed from 2 to 3, while blocking flow to 1 and 4.
In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
While 1 may be fully pressurized, it is not intended for use as the valve’s inlet.
Operaton of Manual Override Option: To override, push the knurled button to activate the coil #2 (S2) function, or pull the knob to activate the coil #1 (S1) function.
Product Features
• Continuous-duty rated solenoid.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Manual override option.
• Optional waterproof E-Coils rated up to IP69K.
• Efficient wet-armature construction.
• All ports may be fully pressurized.
• Cartridges are voltage interchangeable.
• Unitized, molded coil design.
• Industry common cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)
Flow: 15 lpm (4 gpm) max.
Internal Leakage: 328 cc/minute (20 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:
Energized: 40 msec.; De-energized: 10 msec.
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

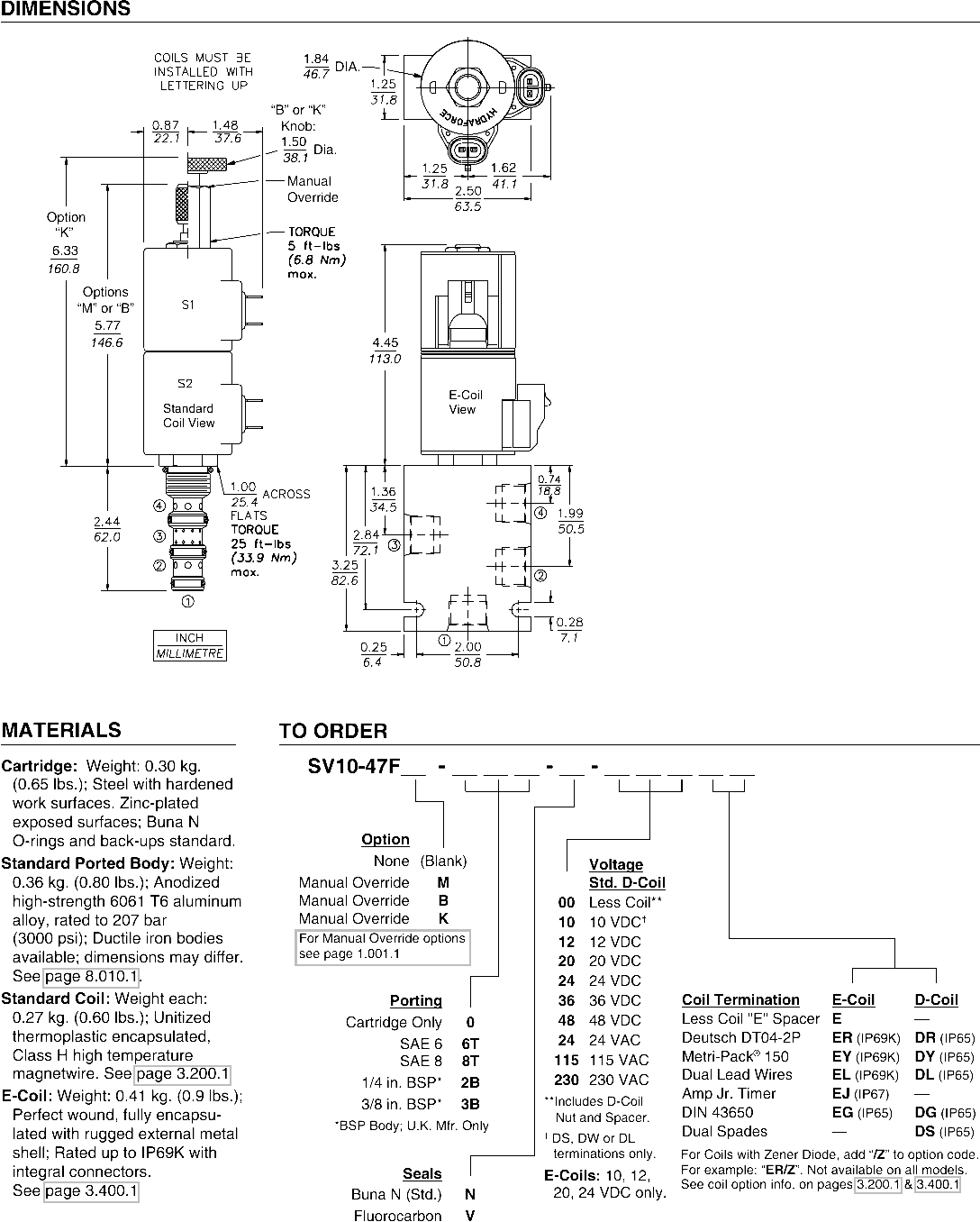

Cavity: VC10-4; See page 9.110.1;
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMM; See page 8.650.1
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180
Coil Spacer: Std. D-Coil Spacer Part No. 7000280; E-Coil Spacer Part No. 4539700;If cartridge is ordered “Less Coil,” D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
