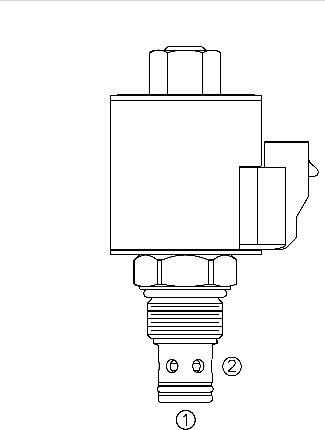

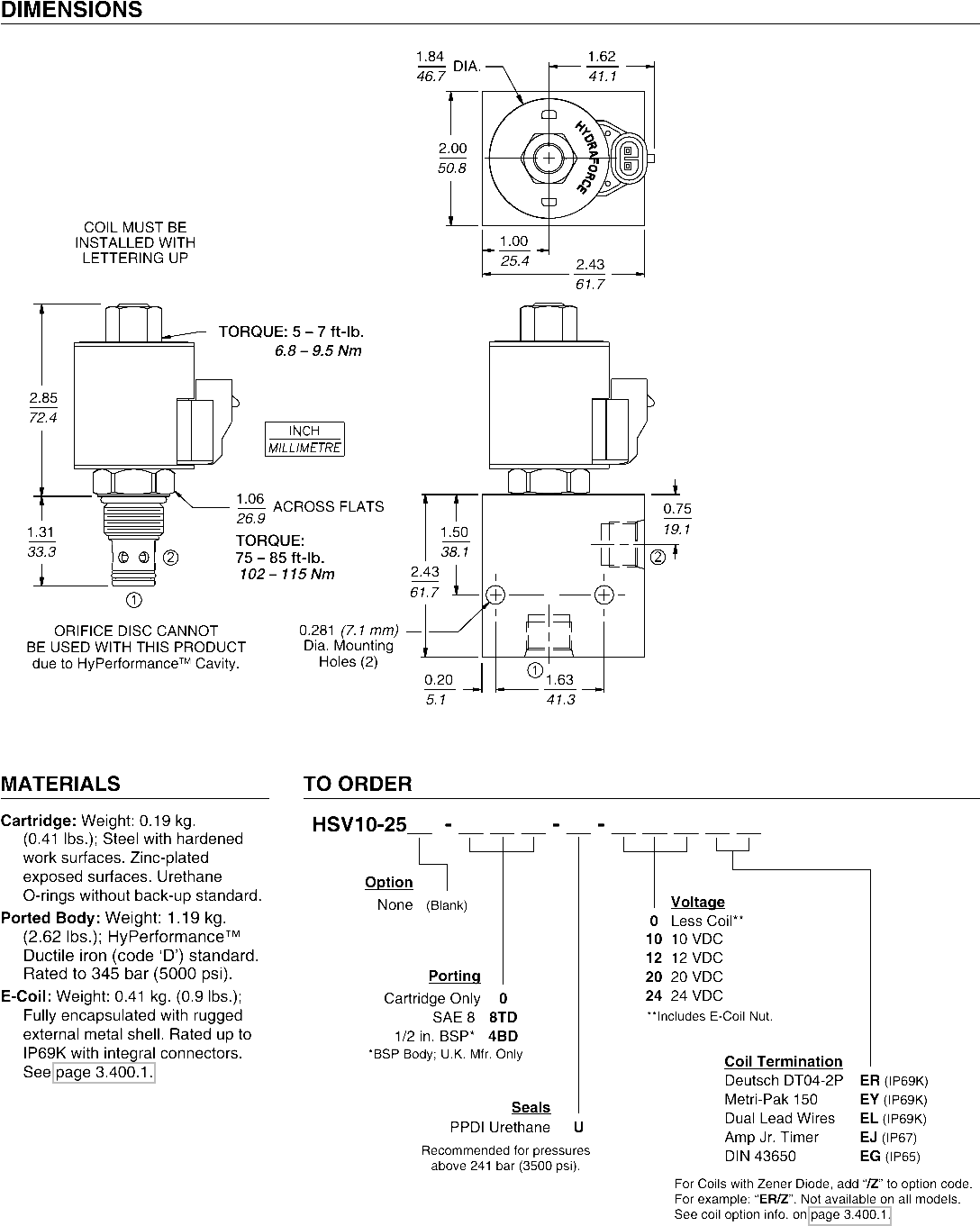

HSV10-25 HyPerformance (HSV10-25)

A solenoid-operated, 2-way, normally open, spool-type, screw-in hydraulic cartridge valve, designed to function as a bi-directional blocking valve in high pressure applications.

Product Operation

When de-energized, the HSV10-25 allows flow in both directions.
When energized, the cartridge’s spool shifts to close the bidirectional flow path.

Product Features

• Continuous-duty rated solenoid.• Hardened precision spool and cage for long life.• Optional coil voltages and terminations.• Both ports may be fully pressurized.• Efficient wet-armature construction.•
Cartridges are voltage interchangeable.• Waterproof E-Coils rated up to IP69K.• 1000-hour salt-spray rated solenoid tubes and coils.• Unitized, molded coil design.• All HyPerformance products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.

Product Ratings

Operating Pressure: 350 bar (5075 psi); 10% Cycle Life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K cycles at 420 bar.
Burst Pressure: 1380 bar (20,000 psi)

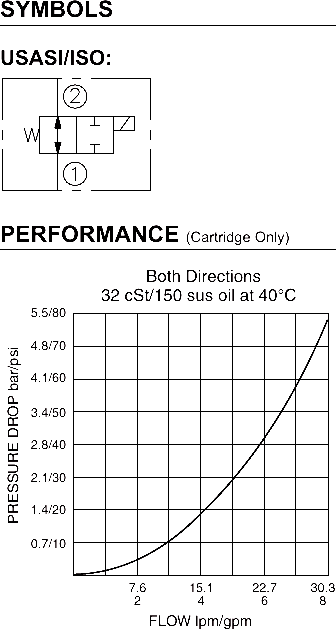

Flow: Up to 30.3 lpm (8 gpm)
Internal Leakage: 2 to 1 Direction: 131 ml/minute (8 cu. in./minute) max. at 350 bar (5075 psi); 1 to 2 Direction: 279 ml/minute (17 cu. in./minute) at 350 bar (5075 psi)
Temperature: -54° to 107°C (-65° to 225°F) with Urethane seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 40 msec.; De-energized: 32 msec.
Initial Coil Current Draw at 20°C: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: HVC10-2; See page 9.110.1
Cavity Tool: HCT10-2xx; See page 8.600.1
Seal Kit: SK10-2U-O; See page 8.650.1
Coil Nut: Part No. 4555250
