Relief Valves, Pilot-Operated, Spool-Type

RV52-26 Relief, Pilot-Operated Spool (RV52-26)

<div>
<h3>Product Operation</h3>
The RV52-26 blocks flow from 1 to 2 until sufficient pressure is present at 1 to force the piloting relief off its seat, allowing the main (second stage) spool to shift, opening 1 to 2.
The cartridge offers smooth transition in response to load changes in demanding hydraulic circuits.
NOTE: The RV52-26 cannot be used in cross-over relief applications.
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Hardened spool and cage for long life.
• Fast, smooth response to pressure surges.
• Cost effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Flow: See Performance Chart
Internal Leakage: 115 cc/minute (7 cu. in/minute) max. to 85% of nominal setting
Crack Pressure Defined: bar (psi) evident at 7.6 lpm (2.0 gpm) attained
Reseat Pressure: Nominal 90% of crack pressure
Standard Spring Range: 83 to 345 bar (1200 to 5000 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-2; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK52-2X-B; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

6-157-1-symbols

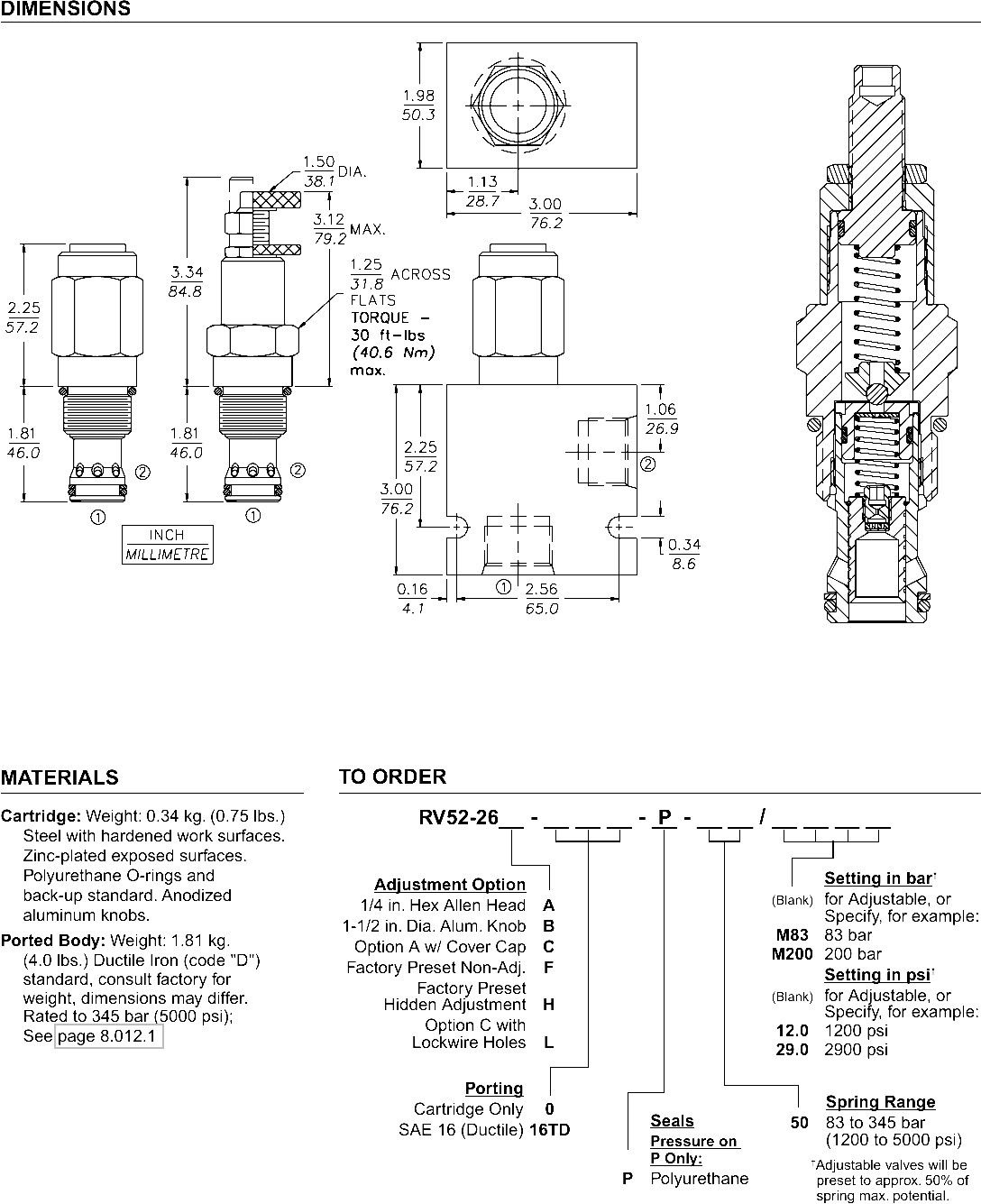

6-157-1-image-dimensions

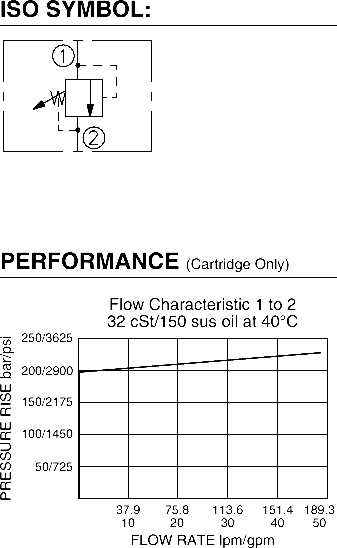

6-157-1-symbols-graphs-image

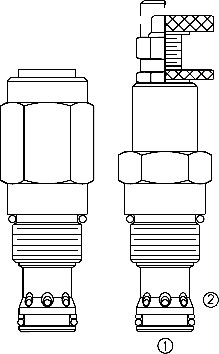

6-157-1-main-image

A screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.
