FR12-20F Regulator, Pressure-Compensated (FR12-20F)

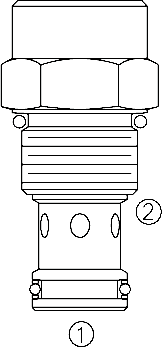

A screw-in, cartridge-style, fixed orifice, pressure-compensated, hydraulic flow regulating valve (restrictive type).
Product Operation

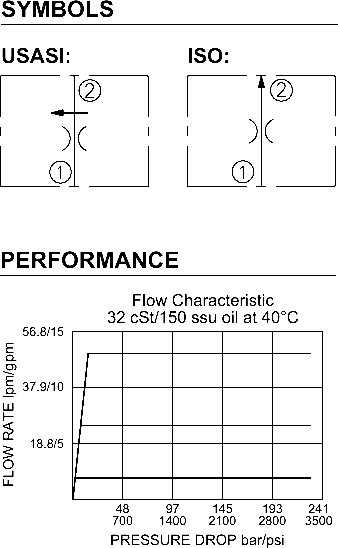

The FR12-20F maintains a constant flow rate out of ➁ regardless of load pressure changes in the circuit downstream of ➁The fi xed control orifice is factory preset to customer flow specifi cation. The valve
begins to respond to load changes when the flow through the valve creates a
pressure differential across the control orifice greater than 5.5 bar (80 psid), with
accurate flow maintenance from 7.6 to 240 bar (110 to 3500 psid). Reverse flow
(➁ to ➀) returns through the control orifice and is non-compensated.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Cost-effective cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)
Flow Settings: 4 lpm (1 gpm) min; 55 lpm (14.5 gpm) max.
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

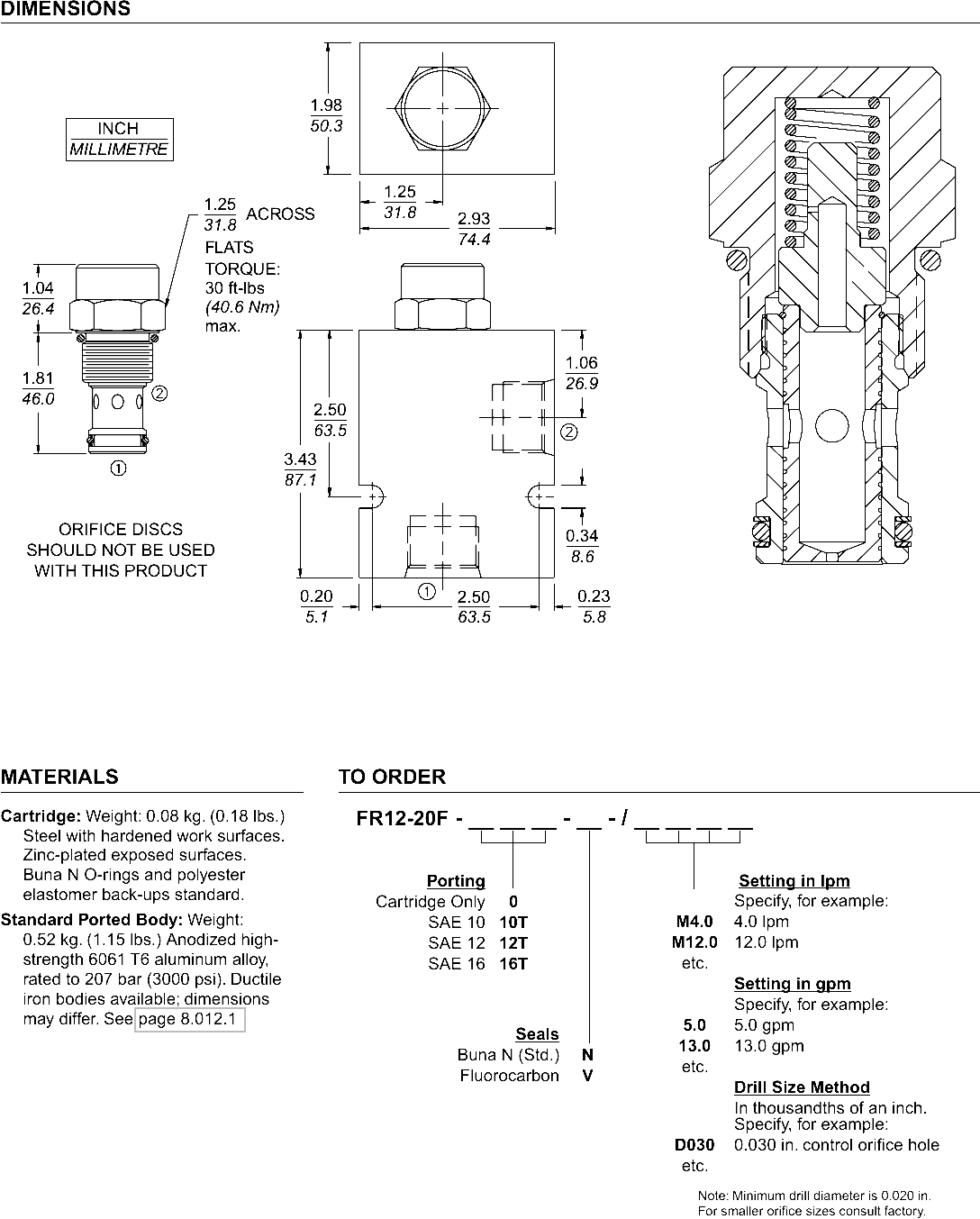

Cavity: VC12-2; See page 9.112.1
Cavity Tool: CT12-2XX; See page 8.600.1
Seal Kit: SK12-2X-M; See page 8.650.1
