Hydraforce Electronic Vehicle Controls

Electronic Vehicle Controls

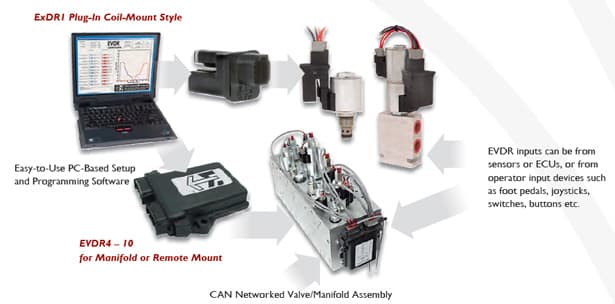

A full line of vehicle controls, sensors, monitors, displays and electrical connectors for integrated control applications in mobile, material handling and industrial equipment is available.

EVDR1, EFDR1, ETDR1 EVDR7

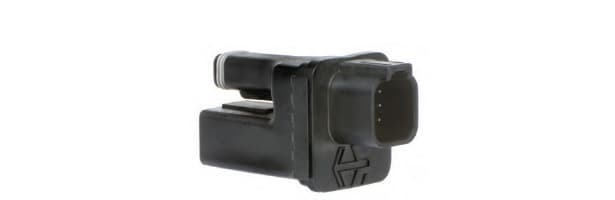

EVDR1, EFDR1, ETDR1 Plug-In Style Controllers for Valve Coil Mounting

The EVDR1 is a general-purpose PC-programmable controller for HydraForce proportional directional, flow or pressure control valves.

EFDR1 for proportional fan drive control, and ETDR1 for transmission control applications.

ExDR1-type controllers are designed for convenient plug-in coil mounting on valve coils with the Deutsch electrical connector.

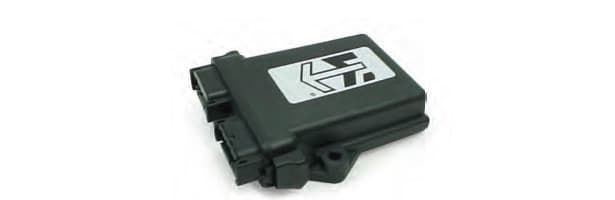

EVDR4 and EVDR5 can drive four proportional and one on/off valve with customer-programmable interface. The EVDR4 is stand-alone. The EVDR5 uses a CAN communications interface.

EVDR7 Operates two proportional or on/off valves and provides up to four 5V references.

EVDR9 and EVDR10 CAN expansion modules provide up to nine networked outputs and ten to eighteen inputs using a J1939 interface

Coretek™ Programmable Machine Controllers

Coretek™ Programmable Machine Controllers

The new CoreTek™ line of general-purpose programmable controllers can be used as stand-alone controllers or integrated with other CAN networked devices. They are designed to withstand the environmental demands of mobile equipment applications. They feature flexible input and output configuration and are capable of driving up to 3.0 amps per output pin.

CoreTek controllers are fully sealed within a compact cast aluminium housing. Operating temperature range is -40°C to +70°C (-40°F to 158°F) and no external cooling or heat dissipation is required.

These controllers are programmed using the powerful CoDeSys™ Programming Tool.

This open software environment offers maximum flexibility and painless servicing of a machine.

Model ECU-0710; Part No. 4000351
Up to 20 inputs, consisting of digital, pulse, current measuring feedback and analog. A total of seven output configurations can be set, including six PWM or digital high-side drivers and a single low-side driver.

Model ECU-2415; Part No. 4000352
Up to 39 digital, pulse, current measuring feedback and analog inputs along with 24 outputs consisting of up to 24 PWM or digital high-side drivers.

Model ECU-2032; Part No. 4000355
Up to 52 inputs and 20 outputs consisting of up to eight PWM or 20 digital high-side drivers.

Model ECU-2820; Part No. 4000356
Up to 52 inputs and 28 outputs consisting of up to 24 PWM or digital high-side drivers and up to four digital low-side drivers.
