TS58-21F Proportional Pressure Relieving Valve (TS58-21F)
A screw-in, cartridge-style, single-stage, poppet-type pressure relieving valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is inversely proportional to DC current input.
Product Operation
The TS58-21F blocks flow from 1 to 2 until sufficient pressure is present at 1 to open the valve by overcoming the preset spring force. With no current applied, the valve will relieve at ±50 psi of the spring maximum. Applying current to the coil reduces the induced spring force thereby reducing the valve setting.
Product Features
• 12 and 24 volt coils standard.
• Optional waterproof E-Coils rated up to IP69K.
• Industry common cavity.
• Hardened parts for long life.
Product Ratings
Maximum Operating Pressure: 393 bar (5700 psi)
Relief Pressure Range from Zero to Maximum Control Current: 344.7–6.9 bar (5000–100 psi)
Hysteresis at 200 Hz PWM: 5%
Rated Flow: 1.9 lpm/0.5 gpm; P = 6.9 to 9 bar (100 to 130 psi), cartridge only, 1 to 2 coil energized
Flow Path: Free Flow: 1 to 2 coil energized; Relieving: 1 to 2 coil de-energized
Electrical Parameters:
Coil
Typical Max. Current
(A) at 0 gpm
Typical Resistance ± 5%
@ 20°C (ohms)
Typical Apparent
Inductance (mH)
12 VDC
24 VDC
12 VDC
24 VDC
12 VDC
24 VDC
D-Coil1.250.637.2 ±3%28.8 ±5%156546
E-Coil1.300.657.1 ±3%28.5 ±5%160560
Temperature: -40° to 121°C (-40° to 250° F) with standard Buna N seals-35° to 204°C (-31° to 400°F) with Fluorocarbon seals;-54° to 107°C (-65° to 225°F) with Polyurethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
Cavity: VC08-2; See page 9.108.1;
Cavity Tool: CT08-2XX; See page 8.600.1
Seal Kit: SK08-2X-B; See page 8.650.1
Coil Nut: Part No. 4540550

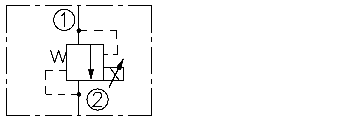

ISO SYMBOL
2.825.1
PERFORMANCE

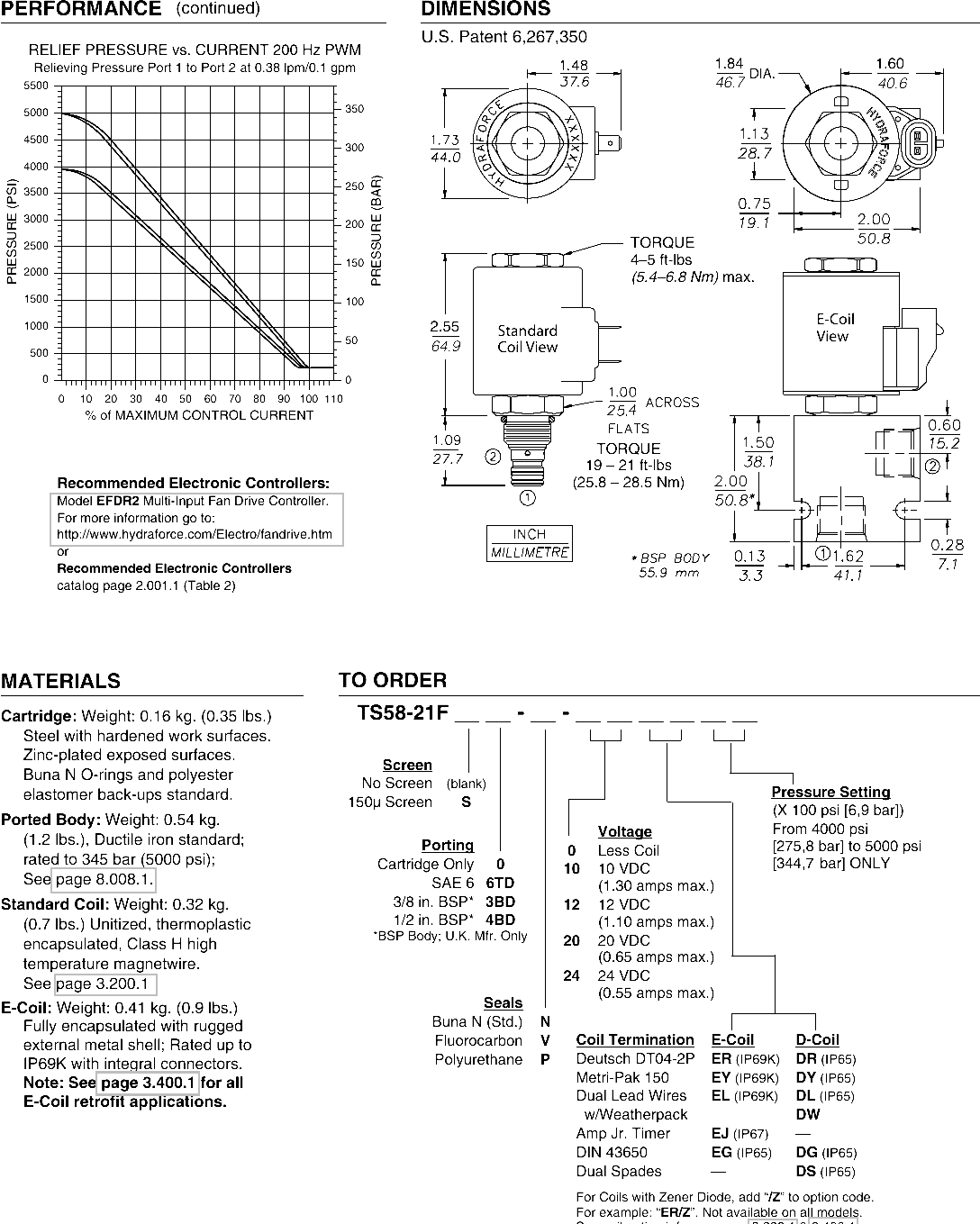

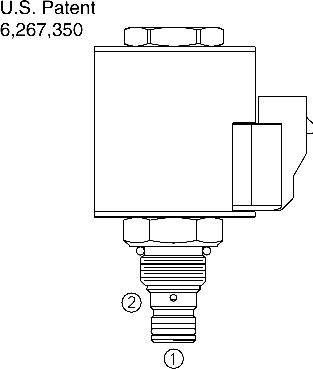

ELECTRO-PROPORTIONAL VALVES—PRESSUU.S. Patent 6,267,350

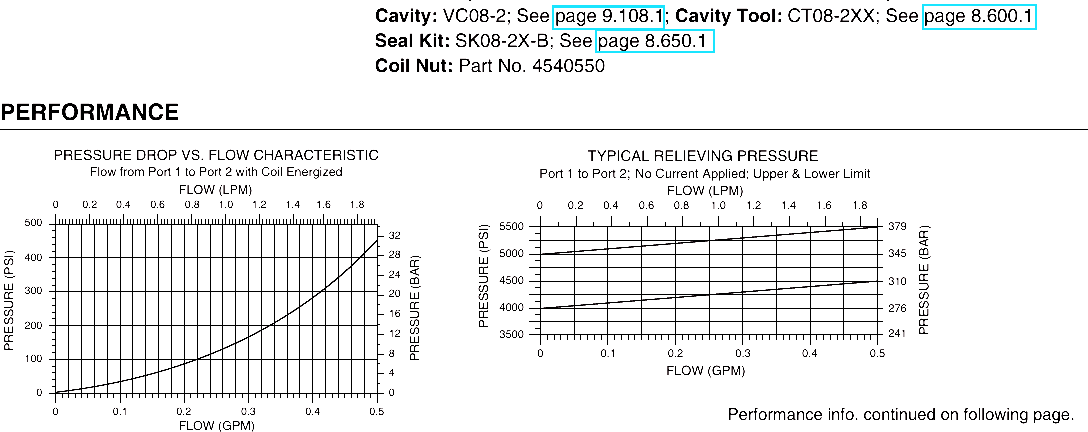

HYDRAFORCE.com®PRESSURE DROP VS. FLOW CHARACTERISTICFlow from Port 1 to Port 2 with Coil Energized32282420161284PRESSURE (BAR)PRESSURE (PSI)FLOW (GPM)FLOW (LPM)1002003004005000.10.20.30.40.50.20.40.60.81.01.21.41.61.8TYPICAL RELIEVING PRESSURE Port 1 to Port 2; No Current Applied; Upper & Lower LimitFLOW (LPM)FLOW (GPM)0.20.40.60.81.01.21.41.61.80.10.20.30.40.5241276310345379PRESSURE (BAR)35004000450050005500PRESSURE (PSI)Performance info. continued on following page.
RE CONTROLS
