With over 300 years of engineering experience, Savery designs and manufactures high-quality hydraulic systems tailored to your needs. If you're interested in this product, fill in our contact form, and our team will be in touch.

Proportional Pressure Control Valves, Reducing:Relieving

EHPR08-33 Proportional Reducing/Relieving Valve (EHPR08-33)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EHPR08-33 allows free flow from ➀ to ➂ when no current is applied to the coil. When the coil is energized, ➁ is connected to ➀. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at ➀ exceeds the setting induced by the coil, pressure from ➀ is relieved to ➂Note: Back pressure on port ➂ becomes additive to the pressure setting at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
• 12 and 24 volt coils standard.
• Optional manual override.
• Industry common cavity.
• Optional waterproof E-coils rated up to IP69K.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Inlet Pressure at port ➁
: 207 bar (3000 psi)
Maximum Tank Pressure at port ➂
: 34.5 bar (500 psi)
Maximum Control Current: 1.2 amps for 12 VDC coil; 0.6 amps for 24 VDC coil; For other voltages, consult factory
Dither Frequency Required: 200 Hz
Typical Frequency Response: See Section 10
Hysteresis: Less than 3%
Reducing/Relieving Pressure Range from Zero to Maximum Control Current: 0–26 bar (0–375 psi)
Rated Flow: 4.0 lpm (1.05 gpm), ΔP=6 bar (87 psi), Cartridge only,➀ to ➂ coil de-energized
Step Response: TON
</div>
</div>
<div class="product-related"> </div>

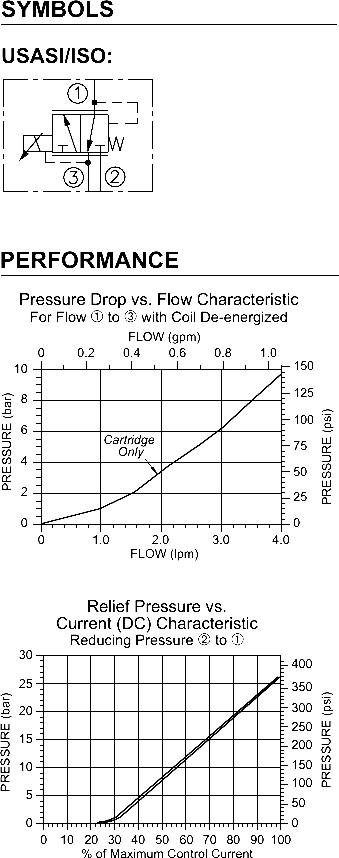

2-970-1-symbols

2-970-1-main-image

2-970-1-image-dimensions

2-970-1-symbols-graphs-image

A screw-in, cartridge-style, direct acting, spool-type reducing/relieving valve, which can be infi nitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure control device in demanding applications.

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce / Oil Control

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

HydraulicIntegratedCircuit(HIC) - ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Savery_11_comp

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

24.03.28_BAR_Savery_2719

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Savery_34_comp

Small Hydraulic Power Packs

TS98-T34 Proportional Reducing/Relieving Valve (TS98-T34)

<div>
<h3>Product Operation</h3>
Without applied current, the TS98-T34 allows flow from 3 to 4 while blocking 2. When the coil is energized, 3 is connected to 2, and pressure at 3 is controlled proportional to the amount of current applied to the coil. If pressure at 3 exceeds the setting induced by the coil, pressure is relieved to 4.
Back pressure on port 4 becomes additive to the pressure setting at a 1:1 ratio.
Note: This product may be customized for special OEM performance characteristics. Consult factory.
</div>
<div>
<h3>Product Features</h3>
• Economical drop-in style.
• 12 or 24 VDC coils.
• Several push-on termination options.
• Optional 233 micron mesh screen
• Integral waterproof coil standard.See page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a>&#8220;&gt;<a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a>&#8220;&gt;<a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a> for a description of tests conducted to verify coil waterproofing.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Inlet Pressure and Regulated Pressure: 30 bar (435 psi)
Maximum Control Current: To achieve 20 bar (290 psi) regulated pressure:0.85 amps for 12 VDC coil; 0.43 amps for 24 VDC coilNote: Regulated pressures up to 29.3 bar (425 psi) can be attained with increased current values and 30 bar (435 psi) inlet pressure.
Deadband: 0.150 amps @ 12 VDC; 0.075 amps @ 24 VDC
Hysteresis: 5% PWM for 20 bar (290 psi) control pressure
Reducing/Relieving Pressure Range from Zero to Maximum Control Current: 0–20.7 bar (0–300 psi)
Rated Flow: Port 3 to 4 with coil de-energized: 30 lpm (8 gpm)
Maximum Pilot Flow: 0.55 lpm (0.15 gpm) with 20.7 bar (300 psi) inlet
Flow Path: Free Flow: 3 to 4 coil de-energized; Reduced: 2 to 3 coil energized; Relieving: 3 to 4 coil energized; Port 1 is not plumbed externally
Oil Temperature: -40 to 120°C (-40 to 248°F)
Ambient Air Temperature: -40 to 120°C (-40 to 248°F)
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
Flange Mounting Screws: M5 x 8; Part No. 4000039 (not provided with valve)
Cavity: VC-T003; See page <a title="9.111.1" href="https://www.savery.co.uk/products/view/9-111-1">9.111.1</a>;
Cavity Tool: CT-T003R0-x-G; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK98-T3N; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
ISO SYMBOL
PERFORMANCEFLOW (gpm)FLOW (lpm)PRESSURE (bar)PRESSURE (psi)Pressure Drop vs. Flow Characteristic- &#8211; &#8211; &#8211; For Flow 3 to 4 with Coil De-energized—— For Flow 2 to 3 with Coil Energized12635478910201401204060801002468105102015302535160Cartridge &amp; BodyCartridge OnlyPRESSURE (psi)50100150200250300PRESSURE (bar)5101520% of Maximum Control Currentto achieve 20 bar (290 psi) Regulated PressureNote: Regulated pressures up to 29.3 bar (425 psi)can be attained with increased current valuesand 30 bar (435 psi) inlet pressure.201030507090406080100Reduced Pressure vs. Current CharacteristicWith Inlet Pressure at 2 of 0–20.7 bar (0–300 psi)Control Current: 200 Hz Dither2134ORCE.com®
</div>

2-950-1-symbols

2-950-1-image-dimensions

2-950-1-symbols-graphs-image

2-950-1-main-image

A drop-in, flange-mounted, cartridge-style, pilot-operated, spool-type reducing/relieving valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure control device in demanding applications.

TS98-30 Proportional Electric Reducing/Relieving (TS98-30)

<div>
<h3>Product Operation</h3>
Without applied current, the TS98-30 allows bidirectional flow from ➂ to ➃ while blocking ➁. When the coil is energized, ➂ is connected to ➁, and pressure at ➂ is controlled proportional to the amount of current applied to the coil. If pressure at ➂ exceeds the setting induced by the coil, pressure is relieved to ➃Back pressure on port ➃ becomes additive to the pressure setting at a 1:1 ratio.Note: This product may be customized for special OEM performance characteristics.
Consult factory.
</div>
<div>
<h3>Product Features</h3>
• 12 and 24 volt coils standard.
• Optional waterproofed E-Coils rated up to IP69K.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Inlet Pressure at Port ➁
: 24 bar (350 psi)
Maximum Control Current: 0.70 amps for 12 VDC coil; 0.35 amps for 24 VDC coil
Deadband: 0.150 amps @ 12 VDC; 0.075 amps @ 24 VDC
Hysteresis: 3.0% PWM
Reducing/Relieving Pressure Range from Zero to Maximum Control Current: 0–20.7 bar (0–300 psi)
Rated Flow: 30 lpm (8 gpm) at 45 psid port ➂ to ➃ with coil de-energized
Maximum Pilot Flow: 0.4 lpm (0.12 gpm)
Flow Path: Free Flow: ➂ to ➃ bidirectional coil de-energized; Reduced: ➁ to ➂ coil energized; Relieving: ➂ to ➃ coil energized; Port ➀ is not plumbed externally
Temperature: -30 to 175°C (-20 to 350°F), with standard Fluorocarbon seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
Cavity: VC98-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>;
Cavity Tool: CT98-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK90-3V; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004410; For E-coils manufactured prior to 1-1-04, see page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a> for coil nut info.
</div>

2-882-1-symbols

2-882-1-image-dimensions

2-882-1-main-image

2-882-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type reducing/relieving valve, which can be infi nitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure control device in demanding applications.



TS90-31 Proportional Reducing/Relieving Valve, (TS90-31)

<div>
<h3>Product Operation</h3>
Without applied current, the TS90-31 allows flow from 3 to 4 while blocking 2. When the coil is energized, 3 is connected to 2, and pressure at 3 is controlled pro-portional to the amount of current applied to the coil. If pressure at 3 exceeds the setting induced by the coil, pressure is relieved to 4. Back pressure on port 4 becomes additive to the pressure setting at a 1:1 ratio.
Note: This product may be customized for special OEM performance characteristics. Consult factory.
</div>
<div>
<h3>Product Features</h3>
• 12 and 24 volt coils standard.
• Optional waterproofed E-Coils rated up to IP69K.
• Valve spool protected by a 50 x 50 mesh screen.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 207 bar (3000 psi) at ports 1 and 2; 69 bar (1000 psi) at port 3.
Burst Pressure: 345 bar (5000 psi)
Flow Rating: 38 lpm (10 gpm);
Maximum Pilot Flow: 0.85 lpm (0.23 gpm)
Adjustable Pressure Range: 0 to 138 bar (2000 psi)
Electrical Parameters:
Coil
Typical Max. Current
(A) at 0 gpm
Typical Resistance ± 5%
@ 20°C (ohms)
Typical Apparent
Inductance (mH)
12 VDC
24 VDC
12 VDC
24 VDC
12 VDC
24 VDC
D-Coil0.680.347.2 ±5%28.8 ±5%148587
E-Coil0.880.447.1 ±5%28.5 ±5%137580
Recommended Drivers: Dither Frequency 350 Hz; PWM Frequency 200 Hz
Temperature: -40 to 100°C (-40 to 212°F) with standard Buna N seals;-26 to 204°C (-15 to 400°F) with Fluorocarbon seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
Cavity: VC98-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT98-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK90-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>;
Coil Nut: Part No. 4540560
</div>

2-884-1-symbols

2-884-1-image-dimensions

2-884-1-main-image

2-884-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type reducing/relieving valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure control device in demanding applications.

TS12-36 Proportional Electric Reducing/Relieving (TS12-36)

<div>
<h3>Product Operation</h3>
The TS12-36 allows flow from ➁ to ➀ until pressure at ➀ equals the setting determined by the coil current. Port ➂ is typically connected to the reservoir. If external load increases the pressure at ➀ beyond this setting, pressure is relieved by allowing flow from ➀ to ➂. Minimum pressure at ➀ without any current is 100 psi.If external circuitry allows the pressure at ➁ to fall below the pressure at ➀, the valve will allow free flow from ➀ to ➁ regardless of the setting of the valve or the amount of current in the coil.
</div>
<div>
<h3>Product Features</h3>
• 12 and 24 volt coils, standard or optional waterproofed.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Ports ➀ and ➁: 276 bar (4000 psi)
Maximum Tank Pressure: Port ➂: 68.9 bar (1000 psi); Note: Tank pressure is additive to regulated pressure.
Reduced Pressure Range from Zero to Maximum Controlled Current:
A: 6.9–207 bar (100–3000 psi);
B: 6.9–172 bar (100–2500 psi)
C: 6.9–138 bar (100–2000 psi)
Maximum Pilot Flow and Leakage: 0.49 lpm (0.13 gpm) with max. control current and with inlet pressure at 276 bar (4000 psi) at regulated flow of 3.8 lpm (1 gpm).
Flow Path: Free Flow: ➀ to ➂ coil de-energized; Reducing: ➁ to ➀ coil energized; Relieving: ➀ to ➂ coil energized
Performance Life: Less than 5% change in the slope of the pressure vs current characteristics over one million cycles.
Hysteresis: Less than 3%.
Temperature: -40 to 120°C (-40 to 250°F) with Buna N seals.
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
Cavity: VC12-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>;
Ca
vity Tool: CT12-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 4526330; For E-coils manufactured prior to 1-1-04, see page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a>&#8220;&gt;<a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a>&#8220;&gt;<a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a> for coil nut info.
</div>

2-901-1-symbols

2-901-1-image-dimensions

2-901-1-symbols-graphs-image

2-901-1-main-image

A screw-in, cartridge-style, pilot-operated, spool-type reducing/relieving valve, which can be infi nitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure limiting device in demanding applications.

TS10-36 Proportional Electric Reducing/Relieving (TS10-36)

<div>
<h3>Product Operation</h3>
With current applied to the valve coil, the TS10-36 blocks flow from 2 to 1 until sufficient pressure is present at 1 to open the pilot section by offsetting the electrically induced solenoid force. Increasing electric current will increase the control (reduced) pressure at 1. With no current applied to the solenoid, the valve will relieve pressure at 1 at approximately 6,9 bar (100 psi), regardless of pressure at 2.
The TS10-36 has an optional manual override feature. This allows the valve to be set when the electric supply is lost. The manual setting is added to the electric setting, so when using the manual override feature to establish a minimum setting, care is required to prevent the system from becoming over-pressurized.
</div>
<div>
<h3>Product Features</h3>
• Manual override option.
• Industry common cavity.
• 12 and 24 volt coils standard.
• Optional waterproof E-Coils rated up to IP69K.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: 241 bar (3500 psi)
Electrical Parameters:
Coil
Typical Max. Current
(A) at 0 gpm
Typical Resistance ±
5% @ 20°C (ohms)
Typical Apparent
Inductance (mH)
12 VDC
24 VDC
12 VDC
24 VDC
12 VDC
24 VDC
D-Coil1.100.557.25 ±5% 28.35 ±5% 141626
E-Coil1.200.607.3 ±5%29.4 ±5%139600
Relief Pressure Range from Zero to Maximum Control Current:
A: 6.9–207 bar (100–3000 psi)
B: 6.9–159 bar (100–2300 psi)
C: 6.9–117 bar (100–1700 psi)
Rated Flow: 57 lpm (15 gpm), P=22.8 bar (330 psi), Cartridge only,1 to 3 coil de-energized
Maximum Pilot Flow: 0.21 lpm (0.08 gpm)
Flow Path: Free Flow: 1 to 3 coil de-energized; Reduced: 2 to 1 coil energized; Relieving: 1 to 3 coil energized
Temperature: -40 to 100°C (-40 to 212°F) for Buna N seals-26° to 204°C (-15° to 400°F) with Fluorocarbon V seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-BM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a> (X = seal option)
Coil Nut: Part No. 4540560; For E-coils made prior to 1-1-04, see page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a>U.S. Patent 7,137,406
<a title="2.900.1" href="https://www.savery.co.uk/products/view/2-900-1">2.900.1</a>Relief Pressurevs. Current (DC) Characteristic200 Hz PWMReducing Pressure 2 to 1PRESSURE (bar/psi)507251001450150217520029002503625% of Maximum Control Current201030507090406080100ABCELECTRO-PROPORTIONAL VALVES &#8211; PRESSURE CONTROL
HYDRAFORCE.com®
</div>

2-900-1-symbols

2-900-1-image-dimensions

2-900-1-main-image

2-900-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type reducing/relieving valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure limiting device in demanding applications.

EHPR98-T38B Proportional Reducing/Relieving (EHPR98-T38B)

<div>
<h3>Product Operation</h3>
The EHPR98-T38B allows free flow from 1 to 3 when no current is applied to the coil. When the coil is energized, 2 is connected to 1. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at 1 exceeds the setting induced by the coil, pressure from 1 is relieved to 2.
Note: Operation of manual override option: Rotate manual override screw clockwise until desired regulated pressure is achieved.
</div>
<div>
<h3>Product Features</h3>
• Economical drop-in style. • 1000-hour salt spray protection.
• Integral waterproof coil standard.
• Optional 142 micron screen at inlet.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Inlet Pressure: 241 bar (3500 psi) at Port 2; 57 bar (820 psi) at Port 1; 34 bar (500 psi) at Port 3.
Flow Rating: 18.9 lpm (5.0 gpm)
Maximum Internal Leakage: Energized: 393 ml/min. (24 cu. in./min.) at 241 bar (3500 psi); De-energized: 100 ml/min. (6 cu. in./min.) at 241 bar (3500 psi)
Cycle Life: One million cycles.
Oil Operating Fluid Temperature: -40° to 149°C (-40° to 300°F)
Storage Temperature: -40° to 70°C (-40° to 160°F)
Ambient Temperature: -40° to 80°C (-40° to 176°F)
Maximum Control Current: 1.38 amps for 10 VDC coil; 1.30 amps for 12 VDC coil;0.69 amps for 20 VDC coil; 0.65 amps for 24 VDC coil
Control Pressure at Maximum Control Current: 56.6 bar (820 psi)
Hysteresis: at 100 Hz PWM: 4% of maximum control pressure
Resistance: 4.3 ohm (10V); 5.2 ohm (12V); 17.5 ohm (20V); 20.9 ohm (24V)
Valve Inductance: 80 mH (12V)
Environmental Rating: IP69K
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Cavity: VC-T011; See page <a title="9.111.1" href="https://www.savery.co.uk/products/view/9-111-1">9.111.1</a>
Cavity Tool: CT-T011R0-x-G; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kits: SK-T011-N; SK-T011-V; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
HYDRAFORCE.com®FLOW lpm/gpmPRESSURE bar/psiPressure Drop vs. FlowCartridge Only1 to 3 ———; 2 to 1 &#8211; &#8211; &#8211; &#8211; -3.4/506.9/10010.3/15013.8/20017.2/2503.81.07.62.011.43.015.14.018.95.0Relieving Pressure 1 to 3Typical Relieving/Reducing Pressure vs. Flow CharacteristicTypical Relieving Pressure at Various %s of Maximum Control CurrentInlet: 69 bar/1000 psi ——; Inlet 241 bar/3500 psi – – –(Curves overlap on Relieving Pressure side of graph); 150 Hz PWM (Both Directions)FLOW lpm/gpm15.14.015.14.018.95.018.95.011.43.011.43.07.62.07.62.03.81.03.81.0Reducing Pressure 2 to 130% Max. Control Current0% Max. Control Current% of MAXIMUM RELIEF PRESSURE% of MAXIMUM REDUCING PRESSURE50257510012515050257510012515045% Max. Control Current17560% Max. Control Current75% Max. Control Current100% Max. Control CurrentCURRENT ampsPRESSURE bar/psiReducing Pressure vs. Current6.9/10013.8/20020.7/30027.6/40062.1/9000.2 0.4 0.61.00.81.41.2Reducing Pressure 2 to 1Inlet: 34.5 bar/500 psi; 150 Hz PWM; 12V Coil34.5/50041.4/60048.3/70055.2/800
</div>

2-973-3-symbols

2-973-3-symbols-graphs-image

2-973-3-main-image

2-973-3-image-dimensions

A direct-acting, spool-type, proportional, drop-in-style, flange-mounted, pressure reducing/relieving valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. The E-coil is an integral part of the valve assembly, and cannot be replaced or field-serviced.

EHPR98-T38 Proportional Reducing/Relieving (EHPR98-T38)

<div>
<h3>Product Operation</h3>
The EHPR98-T38 allows free flow from 1 to 3 when no current is applied to the coil. When the coil is energized, 2 is connected to 1. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at 1 exceeds the setting induced by the coil, pressure from 1 is relieved to 3.
Note: Back pressure on port 3 becomes additive to the pressure setting at a 1:1 ratio.
Note: Operation of manual override option: Rotate manual override screw clockwise until desired regulated pressure is achieved.
</div>
<div>
<h3>Product Features</h3>
• Economical drop-in style. • 1000-hour salt spray protection.
• Integral waterproof coil standard.
• Optional 142 micron screen at port 2.
</div>
<div>
<h3>Product Ratings</h3>
Pressure Rating: 241 bar (3500 psi)
Tank Port (3)
Pressure: 34.5 bar (500 psi) maximum; 17.2 bar (250 psi) maximum with manual override option.
Maximum Control Current: 1.38 amps for 10 VDC coil; 1.30 amps for 12 VDC coil;0.69 amps for 20 VDC coil; 0.65 amps for 24 VDC coil
Control Pressure at Maximum Control Current: 30 bar (435 psi)
Resistance: 4.3 ohm (10V); 5.2 ohm (12V); 17.5 ohm (20V); 20.9 ohm (24V)
Inductance: 80 mH (12V)
Hysteresis: at 100 Hz PWM: 5% of maximum control pressure
Flow Rating: 18.9 lpm (5.0 gpm)
Maximum Internal Leakage: De-engergized: 50 ml/min. (3 cu. in./min.) at 34.5 bar (500 psi); Energized at I-max: 100 ml/min. (6 cu. in./min.) at 34.5 bar (500 psi)
Temperature: -40° to 149°C (-40° to 300°F) with HNBR seals; -26° to 204°C(-15° to 400°F) with fluorocarbon seals
Ambient Air Temperature: -40° to 80°C (-40 to 176°F)
Environmental Rating: IP69K
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Mounting Screws: M4 x 0.7 x 12 Long; Part No. 4001015 (not provided with valve)
Cavity: VC-T011; See page <a title="9.111.1" href="https://www.savery.co.uk/products/view/9-111-1">9.111.1</a>
Cavity Tool: CT-T011R0-x-G; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK-T011; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

2-973-1-symbols

2-973-1-symbols-graphs-image

2-973-1-main-image

2-973-1-image-dimensions

A direct-acting, spool-type, drop-in-style, flange-mounted, pressure reducing/reliev-ing valve, which can be infinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. The E-coil is an integral part of the valve assembly, and cannot be replaced or field-serviced.

EHPR98-T35 Proportional Reducing/Relieving (EHPR98-T35)

<div>
<h3>roduct Operation</h3>
The EHPR98-T35 allows free flow from ➀ to ➂ when no current is applied to the coil. When the coil is energized, ➁ is connected to ➀. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at ➀ exceeds the setting induced by the coil, pressure from ➀ is relieved to ➂Note: Back pressure on port ➂ becomes additive to the pressure setting at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
• Economical drop-in style.
• Several push-on termination options.
• Integral waterproof coil standard.
• 1000-hour salt spray protection.
• 10, 12, 20 or 24 VDC coils.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Inlet Pressure: 103 bar (1500 psi); If higher inlet pressure is required (103 bar/1500 psi to 241 bar/3500 psi) select the “A” option in the model code.
Maximum Tank Pressure: 34.5 bar (500 psi);with Manual Override Option: 17.2 bar (250 psi)
Control Pressure at Maximum Control Current: 20.7 bar (300 psi)
Maximum Control Current: 1.38 amps for 10 VDC coil; 1.30 amps for 12 VDC coil;0.69 amps for 20 VDC coil; 0.65 amps for 24 VDC coil
Resistance: 4.2Ω (10V); 5.1Ω (12V); 17.0Ω (20V); 19.3Ω (24V)
Inductance: 80 mH (12V);
Hysteresis: Less than 4% with 100 Hz PWM
Flow Rating: 5.7 lpm (1.5 gpm)
Maximum Internal Leakage: De-energized: 75 ml/minute (4.58 cu. in./minute) at 25 bar (365 psi); 200 ml/minute (12.2 cu. in minute) at 241 bar (3500 psi).Energized at I-Max.: 125 ml/minute (7.63 cu. in./minute) at 25 bar (365 psi); 400 ml/minute (24.4 cu. in. minute) at 241 bar (3500 psi)
Temperature: -40 to 120°C (-40 to 250°F), with standard Buna N seals
Ambient Air Temperature: -40 to 80°C (-40 to 176°F)
Environmental Rating: IP69K
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: Flange Mount
Mounting Screws: M4 x 0.7 x 12 Long; Part No. 4001015 (not provided with valve)
Cavity: VC-T009; See page <a title="9.111.1" href="https://www.savery.co.uk/products/view/9-111-1">9.111.1</a>;
Cavity Tool: CT-T009R0-x-G; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SKEHPR98-T3X; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

2-972-1-symbols

2-972-1-image-dimensions

2-972-1-main-image

2-972-1-symbols-graphs-image

A direct-acting, spool-type, drop-in-style, fl ange-mounted, pressure reducing/reliev-ing valve, which can be infi nitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. The Ecoil is an integral part of the valve assembly, and cannot be replaced or fi eld-serviced.

EHPR98-T33 Proportional Reducing/Relieving (EHPR98-T33)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The EHPR98-T33 allows free flow from ➀ to ➂ when no current is applied to the coil. When the coil is energized, ➁ is connected to ➀. Increasing current applied to the coil will increase the control (reduced) pressure proportionally. If pressure at ➀ exceeds the setting induced by the coil, pressure from ➀ is relieved to ➂Note: Back pressure on port ➂ becomes additive to the pressure setting at a 1:1 ratio.
</div>
<div>
<h3>Product Features</h3>
• Economical drop-in style.
• Integral waterproof coil standard.
• 1000-hour salt spray protection.
• 10, 12, 20 or 24 VDC coils.
• Several push-on termination options.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Inlet Pressure: 241 bar (3500 psi)
Common Port Burst Pressure: One cycle at 158 bar (2300 psi) on all ports simultaneously pressurized
Tank Port (➂)
Pressure: 34.5 bar (500 psi) maximum for 100,000 cycles
Maximum Control Current: 1.38 amps for 10 VDC coil; 1.30 amps for 12 VDC coil;0.69 amps for 20 VDC coil; 0.65 amps for 24 VDC coil
Resistance: 4.2 ohm (10V), 5.1 ohm (12V), 17.0 ohm (20V), 19.3 ohm (24V)
Inductance: 80 mH (12V)
Hysteresis: Less than 3% with 100 Hz PWM
Flow Rating: 3.8 lpm (1.0 gpm)
Step Response: TON <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

EHPR08-33 Proportional Reducing/Relieving Valve (EHPR08-33)

Product Operation

Product Features

Product Ratings

TS98-T34 Proportional Reducing/Relieving Valve (TS98-T34)

TS98-30 Proportional Electric Reducing/Relieving (TS98-30)

TS90-31 Proportional Reducing/Relieving Valve, (TS90-31)

TS12-36 Proportional Electric Reducing/Relieving (TS12-36)

TS10-36 Proportional Electric Reducing/Relieving (TS10-36)

EHPR98-T38B Proportional Reducing/Relieving (EHPR98-T38B)

EHPR98-T38 Proportional Reducing/Relieving (EHPR98-T38)

EHPR98-T35 Proportional Reducing/Relieving (EHPR98-T35)

EHPR98-T33 Proportional Reducing/Relieving (EHPR98-T33)

EHPR08-33 Proportional Reducing/Relieving Valve (EHPR08-33)

Savery also offer

Bespoke Projects

Hydraforce / Oil Control

Hydraulic Control Systems

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

Hydraulic Power Unit

Small Hydraulic Power Packs
