SP08-46R Spool, 4-Way, 2-Position (SP08-46R)

<div>
<h3>Product Operation</h3>
When de-energized, the SP08-46R allows flow from ➁, ➀ and ➃, while blocking flow at ➂. When energized, metered flow is allowed from ➂ to ➃, as well as metered return flow from ➁ to ➀. Please note that this valve will allow flow from ➃ to ➂ and from ➀ to ➁ but these flows will not be metered.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoid.
• Hardened parts for long life.
• Optional coil voltages and terminations.
• Effi cient wet-armature construction.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Good linearity and hysteresis.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 247 bar (3625 psi) with standard Buna N seals
Flow: 11.4 lpm (3 gpm) maximum; see performance chart
Internal Leakage: 328 ml/minute (20 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous from 85% to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a> for coil nut info.
</div>

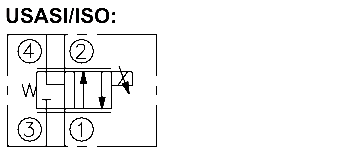

2-088-1-symbols

2-088-1-graphs-image

2-088-1-image-dimensions

2-088-1-symbols-image

2-088-1-main-image

A proportional, solenoid-operated, four-way, two-position, screw-in hydraulic cartridge valve.

SP08-47C Spool, 4-Way, 3-Position, Closed Center (SP08-47C)

<div>
<h3>Product Operation</h3>
When de-energized, the SP08-47C blocks flow to all ports. When coil S1 is energized, flow is allowed from 3 to 4, and from 2 to 1. When coil S2 is energized, flow is allowed from 3 to 2, and from 4 to 1.
Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 3 gpm occurs at 1.0 to 1.1 amp on a 12 VDC system. Each coil has its own metering characteristics, which are quite similar (see performance chart).
While port 1 may be fully pressurized, it is not intended for use as the valve’s inlet.
In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoids.
• Optional manual override.
• Efficient wet-armature construction.
• Industry-common cavity.
• Optional coil voltages and terminations.
• Hardened precision spool and cage for long life.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Designed for good linearity and hysteresis.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 11.4 lpm (3 gpm) max. (see performance chart); Flow rate is based on 50% duty cycle and coil temperature of 20°C (140°F). Consult factory if higher duty cycle and coil temperatures are anticipated.
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. per side at 207 bar (3000 psi)
Hysteresis: Less than 7%
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous up to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>;
Cavity Tool: CT08-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180;
Coil Spacer: Std
D-Coil Spacer
Part No. 7012940; E-Coil Spacer Part No. 4534720; If cartridge is ordered &#8220;Less Coil,&#8221; D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
</div>

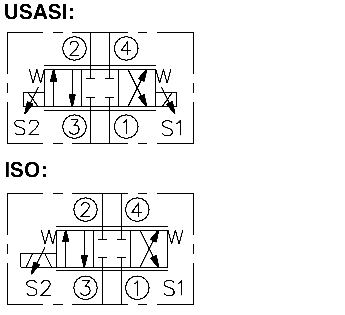

2-110-1-symbols

2-110-1-image-dimensions

2-110-1-graphs-image

2-110-1-symbols-graphs-image

2-110-1-main-image

A proportional solenoid-operated, four-way, three-position, spool-type, closed center, screw-in hydraulic cartridge valve.

SP08-47CL Spool, 4-Way, 3-Position, Closed Center, (SP08-47CL)

<div>
<h3>Product Operation</h3>
When de-energized, the SP08-47CL blocks flow to all ports. When coil S1 is energized, flow is allowed from 3 to 4, and from 2 to 1. When coil S2 is energized, flow is allowed from 3 to 2, and from 4 to 1.
Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 2 gpm occurs at 1.0 to 1.1 amp on a 12 VDC system. Each coil has its own metering characteristics, which are quite similar (see performance chart).
While port 1 may be fully pressurized, it is not intended for use as the valve’s inlet.
In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoids.
• Optional manual override.
• Efficient wet-armature construction.
• Industry-common cavity.
• Optional coil voltages and terminations.
• Hardened precision spool and cage for long life.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Designed for good linearity and hysteresis.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 7.6 lpm (2 gpm) max. (see performance chart); Flow rate is based on 50% duty cycle and coil temperature of 20°C (140°F). Consult factory if higher duty cycle and coil temperatures are anticipated.
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. per side at 207 bar (3000 psi)
Hysteresis: Less than 7%
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous up to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>;
Cavity Tool: CT08-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180;
Coil Spacer: Std
D-Coil Spacer
Part No. 7012940; E-Coil Spacer Part No. 4534720; If cartridge is ordered &#8220;Less Coil,&#8221; D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
</div>

2-111-1-symbols

2-111-1-main-image

2-111-1-symbols-graphs-image

2-111-1-image-dimensions

A proportional solenoid-operated, four-way, three-position, spool-type, closed center, screw-in hydraulic cartridge valve with lower maximum flow rate of 7.6 lpm (2 gpm).

SP08-47D Spool, 4-Way, 3-Position, “Motor Spool” (SP08-47D)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When de-energized, the SP08-47D blocks flow to 3 while allowing flow from 2 to 1, and from 4 to 1. When coil S1 is energized flow is allowed from 3 to 4 and from 2 to 1. When coil S2 is energized flow is allowed from 3 to 2 and from 4 to 1. Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 3 gpm occurs at 1.0 to 1.1 amp on a 12 VDC system. Each coil has its own metering characteristics, which are quite similar (see performance chart). While port 1 may be fully pressurized, it is not intended for use as the valve’s inlet. In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoids.
• Optional manual override.
• Optional coil voltages and terminations.
• Industry-common cavity.
• Efficient wet-armature construction.
• Hardened precision spool and cage for long life.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Designed for good linearity and hysteresis.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 11.4 lpm (3 gpm) max. (see performance chart); Flow rate is based on 50% duty cycle and coil temperature of 20°C (140°F). Consult factory if higher duty cycle and coil temperatures are anticipated.
Internal Leakage: 328 cc/minute (20 cu. in./minute) max. per side at 207 bar (3000 psi)
Hysteresis: Less than 7%
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous up to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>;
Cavity Tool: CT08-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180;
Coil Spacer: Std
D-Coil Spacer
Part No. 7012940; E-Coil Spacer Part No. 4534720; If cartridge is ordered &#8220;Less Coil,&#8221; D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
</div>
</div>

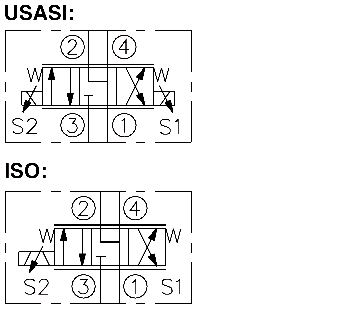

2-120-1-symbols

2-120-1-image-dimensions

2-120-1-main-image

2-120-1-symbols-graphs-image

A proportional solenoid-operated, four-way, three-position, spool-type, motor spool, screw-in hydraulic cartridge valve.

SP08-47DL Spool, 4-Way, 3-Position, “Motor Spool” (SP08-47DL)

<div>
<h3>Product Operation</h3>
When de-energized, the SP08-47DL blocks flow to 3 while allowing flow from 2 to 1, and from 4 to 1. When coil S1 is energized flow is allowed from 3 to 4 and from 2 to 1. When coil S2 is energized flow is allowed from 3 to 2 and from 4 to 1. Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 2 gpm occurs at 1.0 to 1.1 amp on a 12 VDC system. Each coil has its own metering characteristics, which are quite similar (see performance chart). While port 1 may be fully pressurized, it is not intended for use as the valve’s inlet. In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoids.
• Optional manual override.
• Optional coil voltages and terminations.
• Industry-common cavity.
• Efficient wet-armature construction.
• Hardened precision spool and cage for long life.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Designed for good linearity and hysteresis.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: 7.6 lpm (2 gpm) max. (see performance chart); Flow rate is based on 50% duty cycle and coil temperature of 20°C (140°F). Consult factory if higher duty cycle and coil temperatures are anticipated.
Internal Leakage: 328 cc/minute (20 cu. in./minute) max. per side at 207 bar (3000 psi)
Hysteresis: Less than 7%
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous up to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-4; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>;
Cavity Tool: CT08-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180;
Coil Spacer: Std
D-Coil Spacer
Part No. 7012940; E-Coil Spacer Part No. 4534720; If cartridge is ordered &#8220;Less Coil,&#8221; D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
</div>

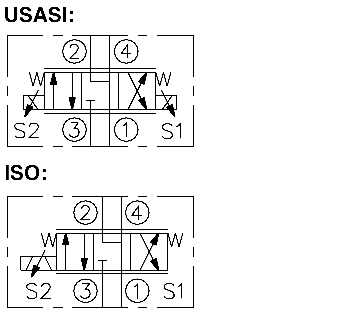

2-121-1-symbols

2-121-1-image-dimensions

2-121-1-main-image

2-121-1-symbols-graphs-image

A proportional solenoid-operated, four-way, three-position, spool-type, motor spool, screw-in hydraulic cartridge valve with lower maximum flow rate of 7.6 lpm (2 gpm).

SP10-46R Spool, 4-Way, 2-Position (SP10-46R)

<div>
<h3>Product Operation</h3>
When de-energized, the SP10-46R allows flow from ➁, ➀ and ➃, while blocking flow at ➂. When energized, metered flow is allowed from ➂ to ➃, as well as metered return flow from ➁ to ➀
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoid.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Effi cient wet-armature construction.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Good linearity and hysteresis.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 247 bar (3625 psi) with standard Buna N seals
Flow: 22.7 lpm (6 gpm) maximum; see performance chart
Internal Leakage: 328 ml/minute (20 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous from 85% to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a> for coil nut info.10.3/1506.9/1003.4/503.817.5211.4315.1418.9522.76FLOW lpm/gpmPRESSURE DROP bar/psi➂ to ➃, S2 energized: ———➁ to ➀, S1 energized: &#8211; &#8211; &#8211; &#8211; &#8211; -32 cSt/150 sus oil at 40°C18.9/515.1/411.4/37.6/23.8/169100013820002073000PRESSURE bar/psiFLOW lpm/gpmPressure Compensation, Inlet to Work PortTypical Differential Pressure32 cSt/150 sus oil at 40°C0.7 ampCurrent0.5 ampCurrent
</div>

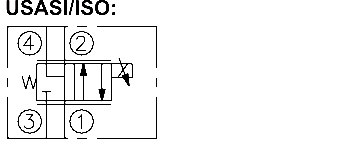

2-090-1-symbols

2-090-1-graphs-image

2-090-1-image-dimensions

2-090-1-symbols-graphs-image

2-090-1-main-image

SP10-47C Spool, 4-Way, 3-Position, Closed Center (SP10-47C)

<div>
<h3>Product Operation</h3>
When de-energized, the SP10-47C blocks flow to all ports. When coil S1 is energized, flow is allowed from 3 to 4, and from 2 to 1. When coil S2 is energized, flow is allowed from 3 to 2, and from 4 to 1.
Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 6 gpm occurs at 1.1 to 1.2 amp on a 12 VDC system. Each coil has its own metering characteristics, which are quite similar (see performance chart).
While port 1 may be fully pressurized, it is not intended for use as the valve’s inlet.
In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoids.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Efficient wet-armature construction.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Optional manual override.
• Industry-common cavity.
• Designed for good linearity and hysteresis.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 248 bar (3600 psi)
Flow: 22.7 lpm (6 gpm) max. (see performance chart)
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. per side at 248 bar (3600 psi)
Hysteresis: Less than 7%
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous up to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>;
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180
Coil Spacer: Std. D-Coil Spacer Part No. 7000280; E-Coil Spacer Part No. 4539700;If cartridge is ordered &#8220;Less Coil,&#8221; D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
</div>

2-112-1-symbols

2-112-1-image-dimensions

2-112-1-main-image

2-112-1-symbols-graphs-image

SP10-47D Spool, 4-Way, 3-Position, “Motor Spool” (SP10-47D)

<div>
<h3>Product Operation</h3>
When de-energized, the SP10-47D blocks flow to 3 while allowing flow from 2 to 3, and from 4 to 1. When coil S1 is energized flow is allowed from 3 to 4 and from 2 to 1. When coil S2 is energized flow is allowed from 3 to 2 and from 4 to port 1.
Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 6 gpm occurs at 1.1 to 1.2 amp on a 12 VDC system. Each coil has its own metering characteristics, which are quite similar (see performance chart).
While port 1 may be fully pressurized, it is not intended for use as the valve’s inlet.
In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoids.
• Optional coil voltages and terminations• Cartridges are voltage interchangeable.• Optional waterproof E-Coils rated up to IP69K.
• Efficient wet-armature construction.
• Hardened precision spool and cage for long life.
• Designed for good linearity and hysteresis.
• Optional manual override.
• Industry-common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Flow: 22.7 lpm (6 gpm) max. (see performance chart)
Internal Leakage: 246 cc/minute (15 cu. in./minute) max. per side at 207 bar (3000 psi)
Hysteresis: Less than 7%
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Standard Coils and E-Coils: Continuous up to 115% of nominal voltage
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation Recommendation: When possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>;
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400;
Manual Override Coil Nut: Part No. 4528180
Coil Spacer: Std. D-Coil Spacer Part No. 7000280; E-Coil Spacer Part No. 4539700;If cartridge is ordered &#8220;Less Coil,&#8221; D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
</div>

2-122-1-symbols

2-122-1-image-dimensions

2-122-1-symbols-graphs-image

2-122-1-main-image

A proportional solenoid-operated, 4-way, 3-position, spool-type, motor spool, screw-in hydraulic cartridge valve.

Default Confirmation

Enter consent agreement text here.  The Consent Field will store this agreement text with the form entry in order to track what the user has consented to.

Admin Notification

New Newsletter Submission

Newsletter

BFPA-Logo-White

ISO9001 LOGO_White

ISO14001 LOGO_White

Logo

moog_savery_test_solutions_logo_vertical

Contact us

With over 300 years of engineering experience, Savery designs and manufactures high-quality hydraulic systems tailored to your needs. If you're interested in this product, fill in our contact form, and our team will be in touch.

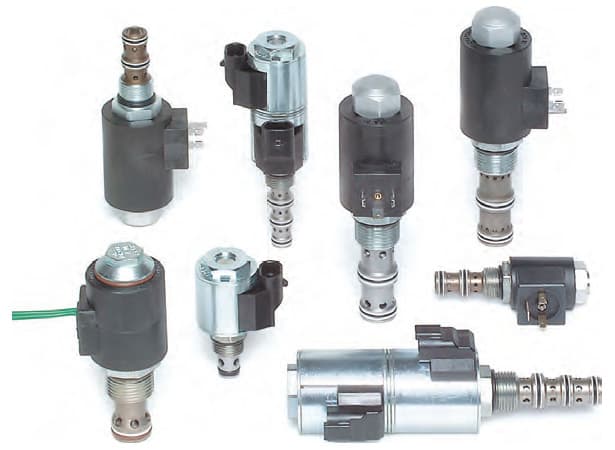

Electro-Proportional Valves

Proportional Directional Valves, 4-Way

electro-valves-1

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce / Oil Control

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

HydraulicIntegratedCircuit(HIC) - ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Savery_11_comp

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

24.03.28_BAR_Savery_2719

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Proportional Directional Valves, 4-Way

SP08-46R Spool, 4-Way, 2-Position (SP08-46R)

SP08-47C Spool, 4-Way, 3-Position, Closed Center (SP08-47C)

SP08-47CL Spool, 4-Way, 3-Position, Closed Center, (SP08-47CL)

SP08-47D Spool, 4-Way, 3-Position, “Motor Spool” (SP08-47D)

SP08-47DL Spool, 4-Way, 3-Position, “Motor Spool” (SP08-47DL)

SP10-46R Spool, 4-Way, 2-Position (SP10-46R)

SP10-47C Spool, 4-Way, 3-Position, Closed Center (SP10-47C)

SP10-47D Spool, 4-Way, 3-Position, “Motor Spool” (SP10-47D)

Proportional Pressure Control Valves, Relief

Proportional Pressure Control Valves, Reducing:Relieving

Proportional Flow Regulators, Pressure Compensated

Proportional Flow Control Valves, Bi-Directional

Proportional Flow Control Valves, 3-Way

Proportional Flow Control Valves, 2-Way

Proportional Directional Valves, 5-Way

Proportional Directional Valves, 4-Way

Proportional Directional Valves, 3-Port with Load Sense

Savery also offer

Bespoke Projects

Hydraforce / Oil Control

Hydraulic Control Systems

Hydraulic Integrated Circuit (HIC) – Manifold Assembly

Hydraulic Power Unit

Small Hydraulic Power Packs
