Contact usMD10-40 Manual, Spring Return, Push-to-Shift (MD10-40)

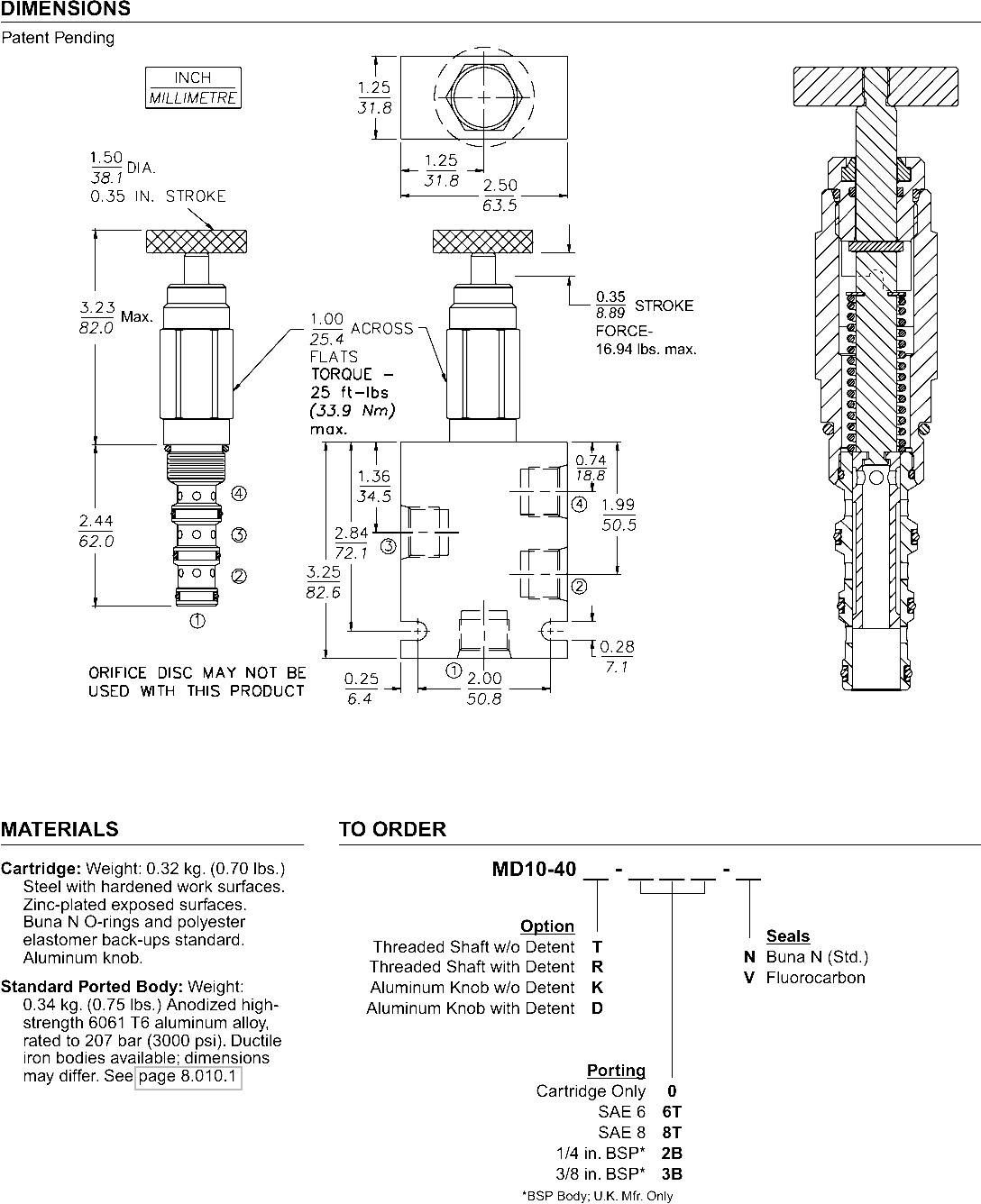

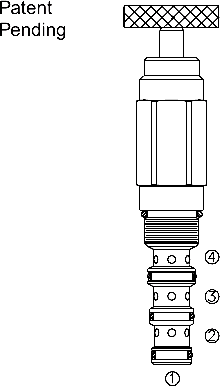

A 4-way, manual, push-to-shift, spring-return, directional hydraulic cartridge valve.Series operation is prohibited due to the tank port (➀) pressure rating.
Product Operation
In its steady-state spring-offset position, the MD10-40 directs flow from ➃ to ➂, and from ➁ to ➀ (tank).In the actuated (pushed) position, the cartridge directs flow from ➁ to ➂, and from ➃ to ➀. Note that all ports are open in transition.Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
When the valve is actuated (pushed in) it can be detented by holding in and turning
the knob clockwise 90°. When released, the valve will remain in the actuated position.
To return the valve to its steady state, push in the knob and turn the handle
counterclockwise.
Product Features
• Hardened spool and cage for long life.
• Optional detent position.
• Industry common cavity.
Product Ratings
Operating Pressure:On ➁, ➂ and ➃: 207 bar (3000 psi)On ➀ (Max.): 14 bar (200 psi)
Cycle Life: 100,000

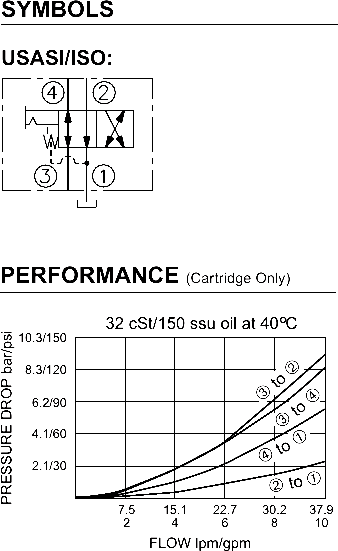

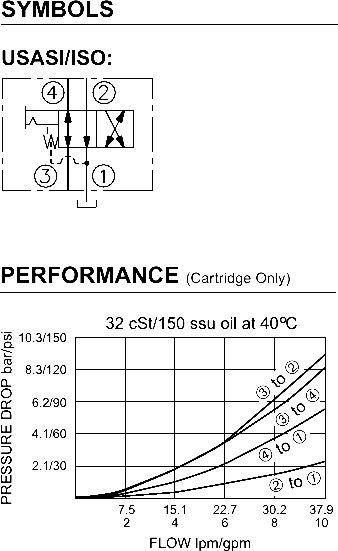

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max.
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-4; See page 9.110.1
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMT; See page 8.650.1
