Hydraulic Power Packs

Hydraulic Power Packs

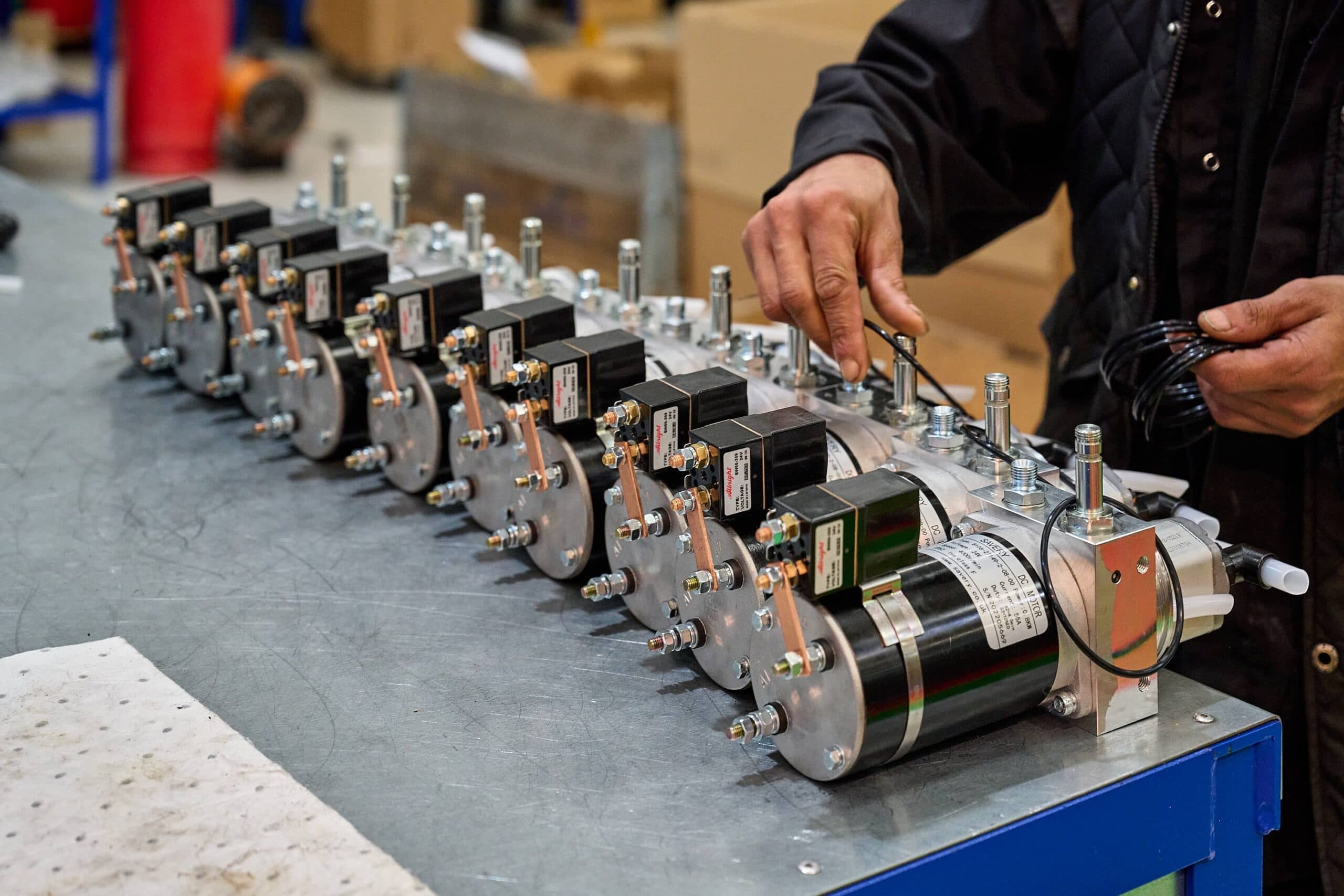

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs. Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

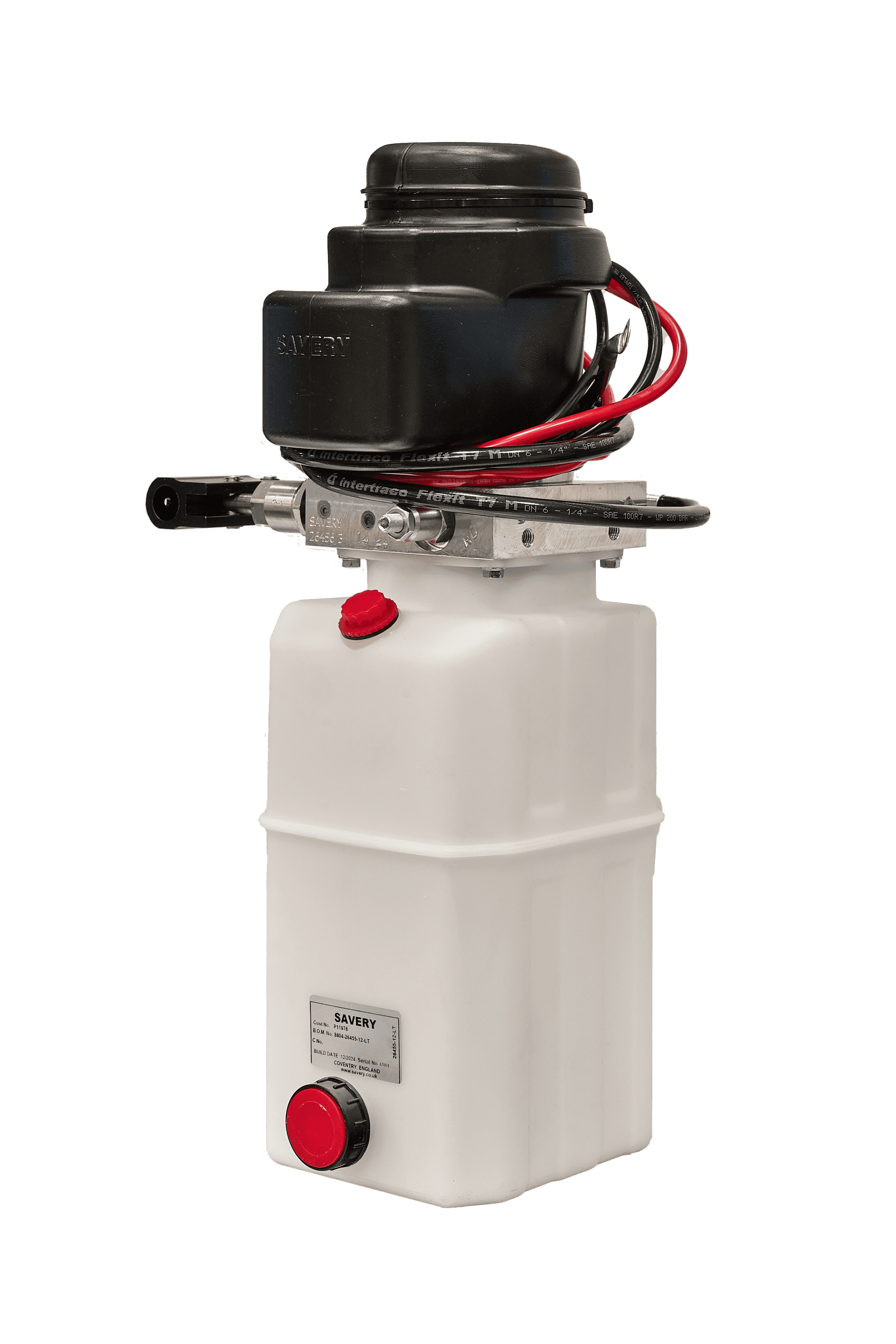

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure of 300 bar, which is achieved by the use of high specification materials. The centre adaptor casting around which the unit is cased is made using an advanced aluminium pressure die-casting process, eliminating porosity to give a lightweight manifold which can be machined to give a vast range of integral control options for single and double acting circuits.

Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods - loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.

Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.

PB300 units have;

  • DC units 12V & 24V / 0.2 – 3.5kW.
  • AC units 3 Phase & 1 Phase / 0.25 – 5.5kW.
  • A vast range of control options for single and double acting circuits.
  • Advanced pressure die-cast aluminium centre adaptor.
  • The ability to eliminate porosity.

Savery DC Power packs are E MARKED by the Vehicle Certification Agency to R10.04 standard.

Hydraulic Power Packs

Systems

Savery hydraulic systems are manufactured to customer specifications and range from small individual units to complex electro-hydraulic systems. The systems division uses components from the Savery and Hydraforce product ranges and also selects from other manufacturers ranges to design units which exactly match the customer and application requirements.

Find out more...

Components

The components division specialises in the design and manufacture of small hydraulic power units, manifold assemblies and the supply of hydraulic control valves for the mobile and industrial markets. Our power packs & manifolds are 100% tested on purpose designed test rigs to product specific test specification procedures.

Find out more....

Electronics

Savery design and manufacture electronic control systems to accurately control and monitor hydraulic power. We provide complete control system solutions directly to customers to their own control system specification and develop control systems for Savery Systems projects.
