SVRV10-26 Spool, 2-Way, Normally Open, (SVRV10-26)

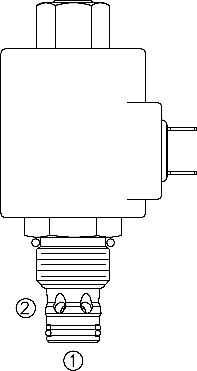

A solenoid-operated, two-way, spool-type, normally open, screw-in, hydraulic relief valve.

Product Operation

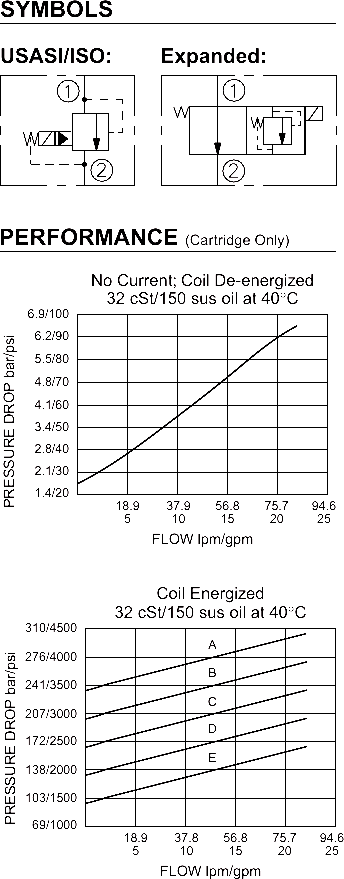

When the coil is de-energized, the valve is open, allowing flow from ➀ to ➁. When the coil is energized, flow from ➀ to ➁ is blocked. When the coil is energized and the pressure at ➀ exceeds the relief setting, the valve will open to allow flow from ➀ to ➁

Product Features

 Various pressure ranges.
 Continuous-duty rated solenoid.
 Hardened spool and cage for long life.
 Optional coil voltages and terminations.
 Effi cient wet-armature construction.
 Cartridges are voltage interchangeable.
 Optional waterproof E-Coils rated up to IP69K.
 Unitized, molded coil design.
 Industry common cavity.

Product Ratings

Operating Pressure: 297 bar (4300 psi)
Flow: 0 to 75 lpm (0 to 20 gpm)
Relief Pressure Settings – defi ned as pressure evident at 7.57 lpm (2 gpm): A: 240 ±12 bar (3500 ±175 psi) B: 207 ±10.4 bar (3000 ±150 psi) C: 172 ±10.3 bar (2500 ±150 psi) D: 138 ±9.7 bar (2000 ±140 psi) E: 104 ±8.3 bar (1500 ±120 psi) For custom OEM settings, consult factory.
Reseat Pressure: 80% of relief pressure setting
Pilot Flow & Leakage at 80% of relief pressure setting: 350 ml per minute max.
Pressure Rise at Max. Current (Relief Mode): 0.73 ±0.09 bar/lpm (40.0 ±5.0 psi/gpm)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectifi ed). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

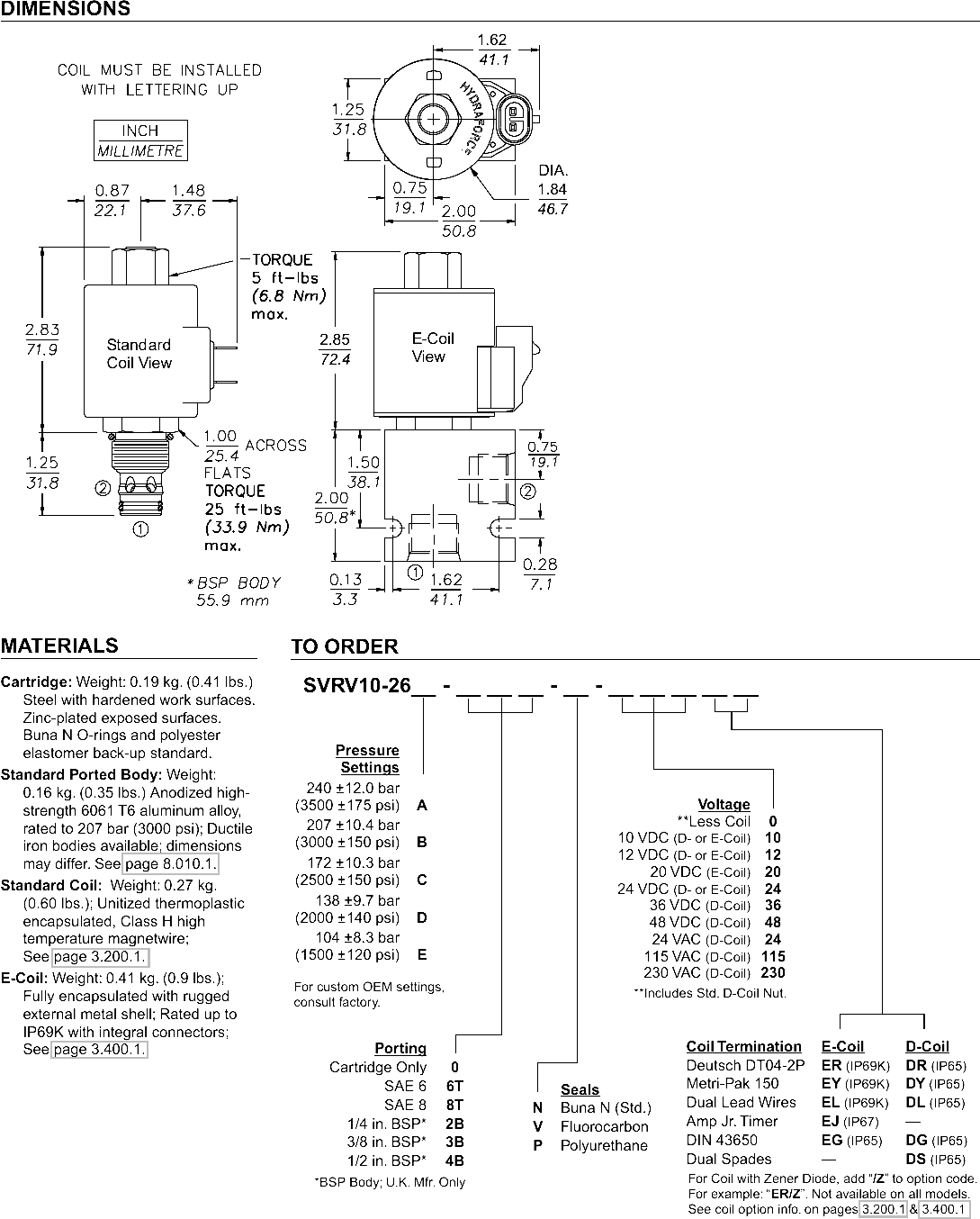

Cavity: VC10-2; See page 9.110.1
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2N-B; See page 8.650.1
Coil Nut: Part No. 7004420
