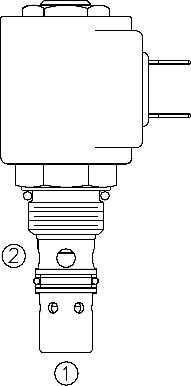

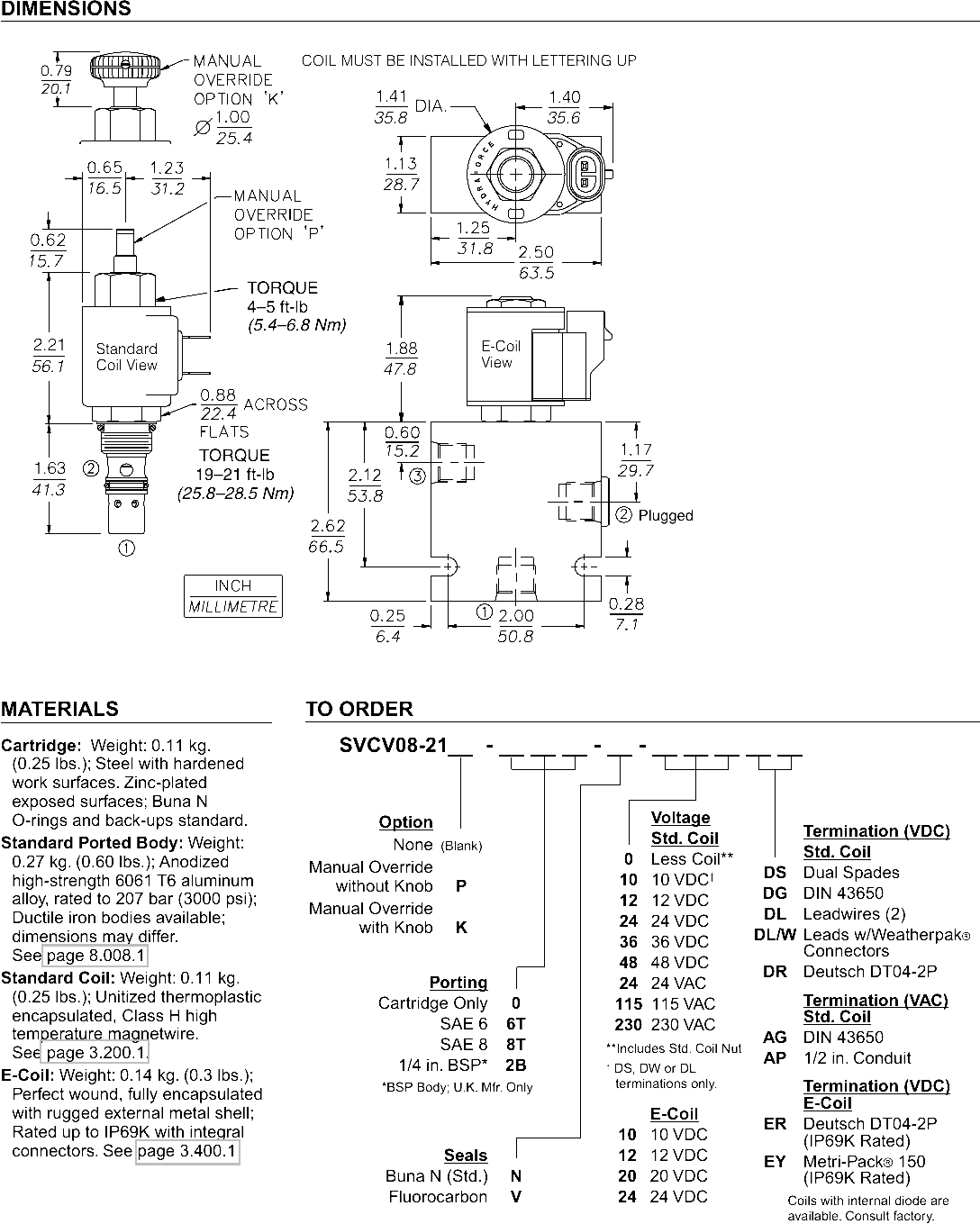

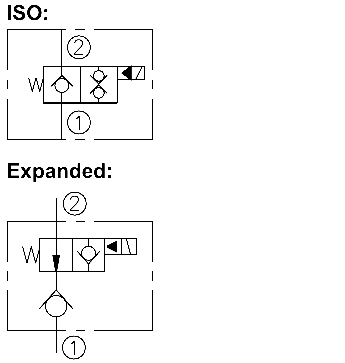

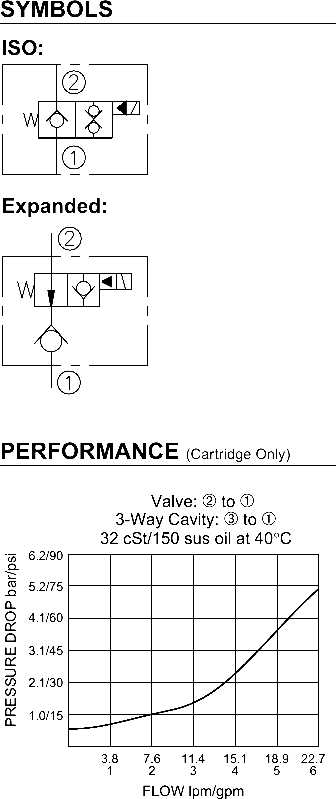

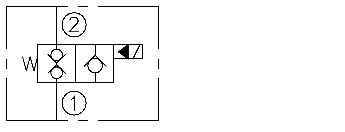

SVCV08-21 Poppet, 2-Way, Normally Open . . . (SVCV08-21)

A solenoid-operated, two-way, pilot-operated, poppet-type, normally open, screw-in hydraulic cartridge valve with outlet flow check, designed for low leakage in load holding applications.

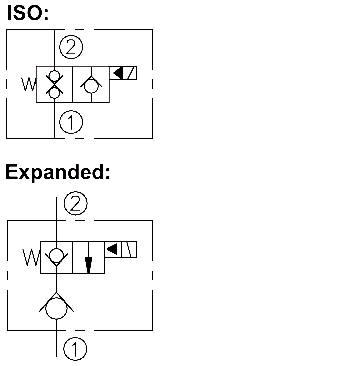

Product Operation

When energized, the SVCV08-21 blocks flow from ➁ to ➀ and from ➀ to ➁When de-energized, the cartridge’s poppet lifts to open the ➁ to ➀ flow path, while continuing to block flow from ➀ to ➁The SVCV08-21 is designed to fi t into the VC08-3 cavity with the normal inlet at
cavity port 3 (valve port ➁), the outlet at cavity port ➀ (valve port ➀), and with cavity port ➁ blocked.Operation of Manual Override Option: To override, push and hold override button.

Product Features

 Continuous-duty rated coil.
 Hardened seat for long life and low leakage.
 Optional coil voltages and terminations.
 Cartridges are voltage interchangeable.
 Manual override option.
 Optional waterproof E-Coils rated up to IP69K.
 Industry common cavity.
 Compact size.

Product Ratings

Operating Pressure: 207 bar (3000 psi)
Rated Flow: 22.7 lpm (6 gpm)
Reverse Flow Check Valve Spring: 0.69 bar (10 psi)
Maximum Internal Leakage: ➁ to ➀: 5 drops/minute at 207 bar (3000 psi);➀ to ➁: 10 drops/minute at 207 bar (3000 psi)
Temperature: –40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:Energized: 40 msec.; De-energized: 46 msec.
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectifi ed); E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK08-3X-M; See page 8.650.1
Coil Nut: Part No. 7004400
